TECHNICAL SPECIFICATIONS
Diameter accuracy | 2.90 mm ± 0.05 mm 1.75 mm ± 0.05 mm |
Extrusion temperature | 210 - 235 °C |
Material Net Weight | 500 g |
Color | black |
Filament Length | 70 m (2.85mm thickness), 190 m (1.75mm thickness) |
Density | 1.08 – 1.10 g/cm3 |
Tensile Yield (JIS K 7113) | 14 MPa |
Elongation (JIS K 7113) | 990 % |
Melting Point | 175 to 195 °C |
Melt Flow Index | 230 °C, 21.1N 45 g/(10 minutes) |
Durometer Hardness D (JIS K 6253) | 33 |
Material Grade MCC | TPE-33 |
For use in commonly available fused filament fabrication (FFF) 3D printers. Not recommended for printers with significant distance (e.g. >15 mm) between the pinch feeder and the hot end. Best results are obtained with printers having a heated platform and when applying forced air cooling on the object as it builds.

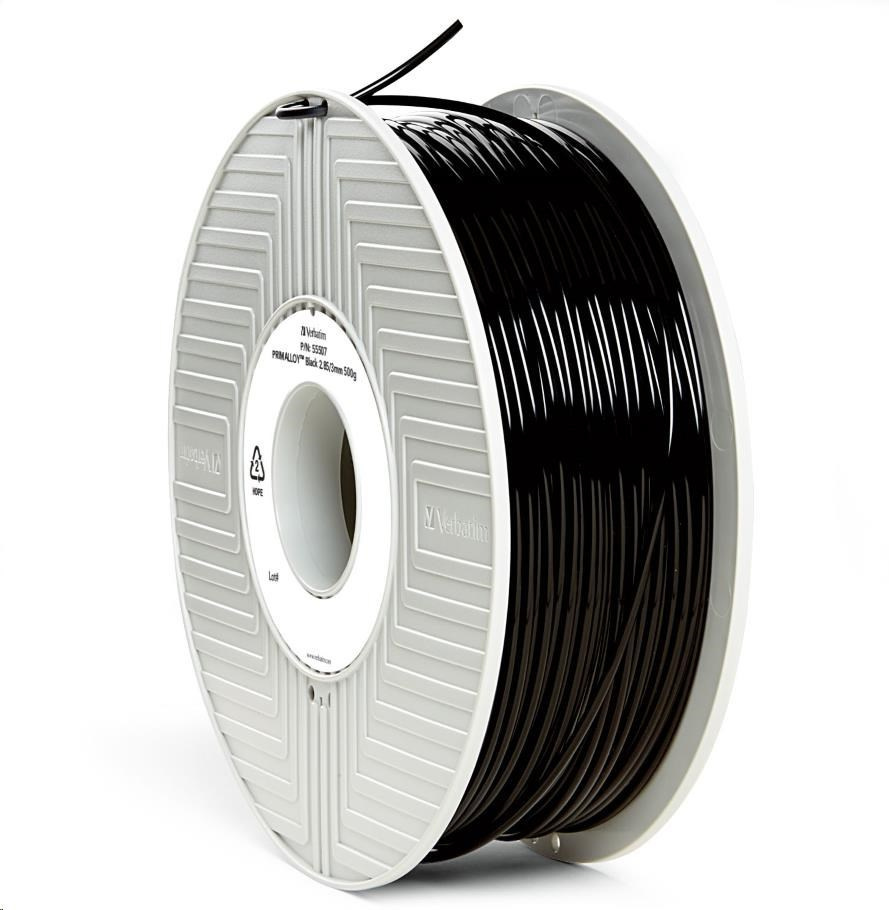

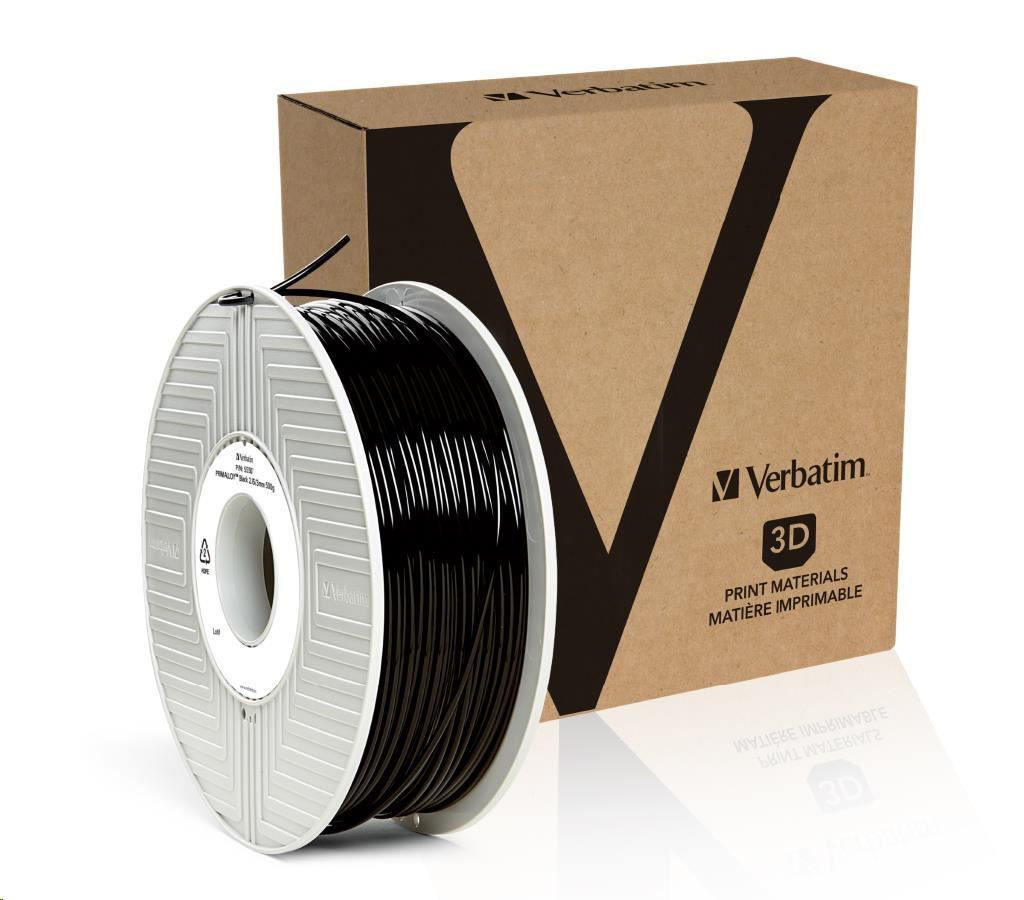

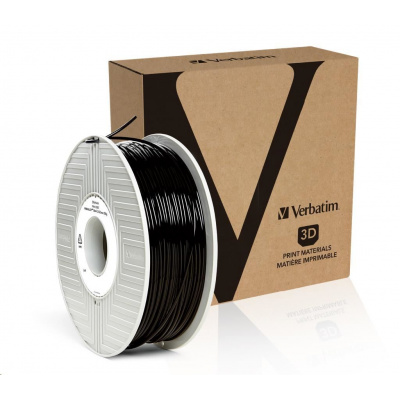

PRIMALLOY
Verbatim will expand its portfolio of filaments to include exclusive products developed by Mitsubishi Chemical. The first of these special filaments to be marketed and distributed by Verbatim is PRIMALLOY™. It produces objects with a rubberized feel which will have possible usage for things like hand grips for tools, earphones, goggles, mobile phone cases, automotive parts, and many more. Jedná se o termoplastický esterový elastomer (TPE), který se skládá z krystalického aromatického polyesterového bloku (hlavně PBT) jako tvrdého segmentu a nekrystalického polyetherového bloku (hlavně poly-tetramethylene-ether-glycol) jako měkkého segmentu. The features of PRIMALLOY™ include good mechanical strength, oil resistance, chemical resistance, flex fatigue resistance and has excellent heat resistance, as well as hardness stability within a wide temperature range.
.
