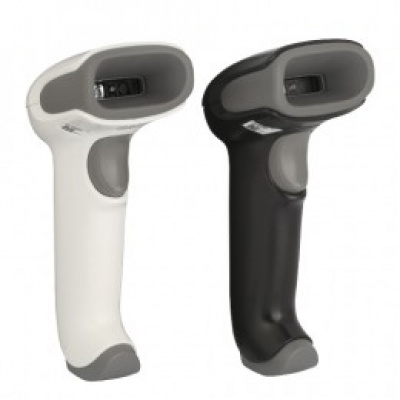

Honeywell Voyager Extreme Performance 1472g 1472G2D-2USB-5-R, BT, 2D, BT, kit (USB), black

Product description

Bluetooth scanner, 2D, imager, Bluetooth, IP40, incl.: cable (USB, straight, 3 m, black), charging/transmitter cradle, color: black

The Honeywell Voyager Extreme Performance (XP) 1472g is a reliable 2D scanner for retail. It is designed to read difficult-to-capture 1D and 2D barcodes, as well as DotCodes and digital vouchers from a smartphone or tablet – even if the barcodes are damaged or difficult to read. Together with the increased flexibility, due to its wireless design, it simplifies work and helps save time.

The multi-interfaces of the Voyager XP 1472g always ensure good performance and include USB, keyboard wedge (KBW), RS232, and RS485 with support for IBM 46XX. It is also robust: it withstands multiple falls from heights of up to 1.8 meters and is protected against the penetration of foreign bodies up to 1 mm and diagonally falling dripping water according to IP42 certification. Plus, the Voyager XP 1472g is fully backwards compatible with existing accessories. Nejsou žádné dodatečné náklady na volitelné příslušenství a celkové náklady na vlastnictví jsou nižší.

WIRELESS
Radio/Range: 2.4 GHz to 2.5 GHz
(ISM Band)
Adaptive Frequency Hopping
Bluetooth v4.2
30 m (98 ft) line of sight with Honeywell
charger/communication base
Power Options:
Battery: 2400 mAh Li-ion minimum
Number of Scans: Up to 50,000
scans per charge
Expected Duration of Operation:
14 hours
Expected Charge Time: 4.5 hours
User Indicators: Good Decode LEDs, Rear
View LEDs, Beeper (adjustable tone and
volume), Vibration (adjustable), Charge
Status Indicator

MECHANICAL/ELECTRICAL
Dimensions (L x W x H): 62 mm x 173 mm x
82 mm (2.5 in x 6.8 in x 3.2 in)
Charger/Communication Base: (CCB01-
010BT-V1N) 132 mm x 102 mm x 81 mm
(5.2 in x 4.0 in x 3.2 in)
Scanner Weight: 210 g (7.4 oz)
Charger/Communication Base: 179 g
(6.3 oz)
Operating Power (Charging): Charger/
Communication Base: 179 g (6.3 oz)
Standby Power: Charger/Communication
Base: 0.5 W (0.1A @ 5V)
Host System Interfaces: USB, Keyboard
Wedge, RS-232, RS485 support for IBM
46xx (RS485)

ENVIRONMENTAL
Operating Temperature:
Scanner:
Charging: 5°C to 40°C (41°F to 104°F)
Non-Charging: 0°C to 50°C
(23°F to 122°F)
Charger/Communication Base:
Charging: 5°C to 40°C (41°F to 104°F)
Non-Charging: 0°C to 50°C
(32°F to 122°F)
Storage Temperature:
Scanner:
For storage up to 90 days: -20°C to
35°C (-4°F to 95°F)
For storage up to 1 year: -20°C to 20°C
(-4°F to 68°F)
Charger/Communication Base: -40°C to
70°C (-40°F to 158°F)
Electrostatic Discharge (ESD) (Scanners
and Cradles): ±8 kV indirect coupling plane,
±15 kV direct air
Humidity: 0% to 95% relative humidity,
non-condensing
Tumble Spec: 1,000 0.5 m (1.6 ft)
tumbles (impacts)
Drop: Engineered to withstand 30 1.8 m
(6 ft) drops to concrete
Environmental Sealing: IP42
Light Levels: 0 to 100,000 lux
(9,290 foot-candles)

SCAN PERFORMANCE
Scan Pattern: Area Image
(1040 x 720 pixel array)
Motion Tolerance: 70 cm/s (27.6 in/s) for
13 mil UPC at optimal focus
Scan Angle:
Horizontal: 39.2° nominal
Vertical: 27.4° nominal
Roll, Pitch, Skew: ±180°, ±65°, ±70°
Barcode Types: Reads standard 1D, PDF,
2D, and DotCode symbologies
Note: Decode capabilities dependent on
configuration.
