Canon i-SENSYS LBP246dw 5952C006 laser printer

Product description

DETAILED SPECIFICATIONS

GENERAL SPECIFICATIONS
Device Type: Laser Printer
Available Functions: Print

PRINT SPECIFICATIONS
Print Speed:
Single-sided: up to 40 pages./min (A4)
Up to 65.4 pages./min (A5 landscape)
Duplex: up to 33.6 ipm./min (A4)
Printing method: Black and white laser printing
Print resolution: Up to 1,200 × 1,200 dpi
Warm-up time: Approx. 14 seconds or less from power on
First Print Out Time: Approx. 5.0 s or less
Printer Languages: UFRII, PCL 5e, PCL6
Fonts: 45 PCL fonts
Print Margins: 5 mm top, bottom, left, and right
Toner Saver Mode:
Encrypted Secure Print
Secure Print
Microsoft Universal Print Support
iOS: AirPrint, Canon PRINT Business app
Android: Mopria certified, Canon Print Service plug-in, and Canon PRINT Business app
Advanced Print Features:
iOS: AirPrint, Canon PRINT Business app
Android: Mopria certified, Canon Print Service plug-in, Canon PRINT Business app

MEDIA HANDLING
Paper Input (Standard):
250-sheet cassette
100-sheet multipurpose tray
Paper Input (Optional): 550-sheet cassette
Maximum Paper Input Capacity: Up to 900 sheets
Paper Output: 150 sheets
Media Types: Plain paper, recycled paper, thick paper, thin paper, coated paper, label, postcard, envelope
Media Sizes:
Cassette (Standard and Optional):
A4, A5, A5 (landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, custom sizes: minimum 105 × 148 mm to maximum 216.0 × 355.6 mm.

Multipurpose Tray:
A4, A5, A5 (landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, index card, envelope (COM10, Monarch, C5, DL), custom sizes: minimum 76.2 × 127 mm to maximum 216.0 × 355.6 mm.
Media Weights:
Tray (standard and optional): 60 to 120 g/m2
Multipurpose tray: 60 to 199 g/m2
Duplex Printing
A4, Legal, Letter, OFFICIO, B-OFFICIO, M-OFFICIO, GLGL, Foolscap
User size: minimum 210 × 279.4 mm to maximum 216.0 × 355.6 mm
60 to 120 g/m2

INTERFACE AND SOFTWARE
Interface Type: USB 2.0 Hi-Speed, 10BASE-T/100BASE-TX/1000Base-T, Wi-Fi – 802.11b/g/n, wireless direct connection
Operating System Compatibility:
Windows® 11 / Windows® 10 / Server® 2022 / Server® 2019 / Server® 2016 / Server® 2012R2 / Server® 2012
Mac OS X version 10.13 and higher
Linux
Network Protocol:
Printing:
TCP/IP (LPD/Port9100/IPP/IPPS/WSD)

Management:
SNMPv1, SNMPv3 (IPv4, IPv6)

Security:
TLS1.3, IPSec, IP/Mac Address Filtering, IEEE802.1X, SNMPv3, SSL (HTTPS, IPPS)
Security (wireless connection):
Infrastructure mode:
WEP (64/128 bit), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA-EAP (AES), WPA2-EAP (AES)
Access point mode:
WPA2-PSK (AES)
Software and printer management:
Remote User Interface (RUI),
Department ID Management,
Toner Status Tool,
iW Enterprise Management Console: server software for centralized management of a device group
eMaintenance: built-in RDS allows for providing remote eMaintenance services such as meter reading status, automatic consumables management, and remote diagnostics.

GENERAL FEATURES
Recommended Monthly Print Volume: 750 to 4,000 pages per month
Duty Cycle: 80,000 pages
Processor Speed: 1,200 MHz
Memory: 1 GB
Storage: 4GB eMMC

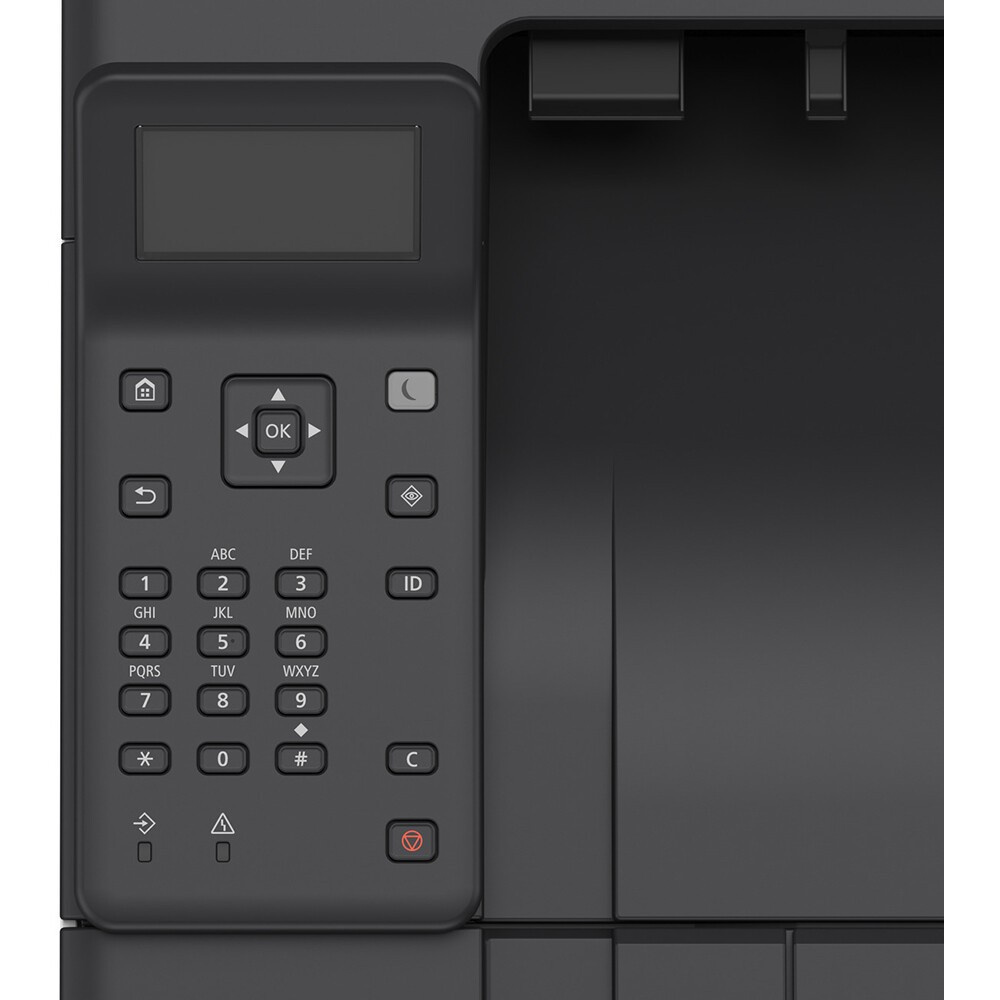

Control Panel: 5-line LCD display, 3 LED indicators (for jobs, errors, and power saving mode), buttons, 10-key numeric keypad
Dimensions with Trays (W × D × H): 399 mm × 373 mm × 249 mm
Weight: Approx. 9.5 kg
Operating Environment:
Temperature: 10 to 30 °C
Humidity: 20 to 80% RH (non-condensing)
Power Supply: 220–240 V (±10%) 50/60 Hz (±2 Hz)
Power Consumption:
Maximum: approximately 1,250 W
During printing: approximately 480 W
Standby mode: approximately 6 W
Sleep mode: approximately 0.9 W
Typical Electricity Consumption (TEC): 0.29 kWh/week (230 V)3
Noise Levels:
Sound Pressure:
During operation: single-sided printing 54 dB or less
Double-sided printing 53 dB or less
Standby mode: silent5
Sound Power:
During operation: 68 dB
Standby mode: silent

CONSUMABLES
Cartridges:
Cartridge 070 (3,000 pages)
Cartridge 070H (10,200 pages)

ACCESSORIES AND OPTIONS
Items: Paper Feeder Unit AH1

! The USB connecting cable is not included in the package !
