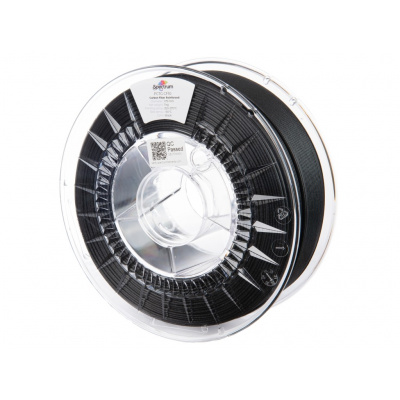

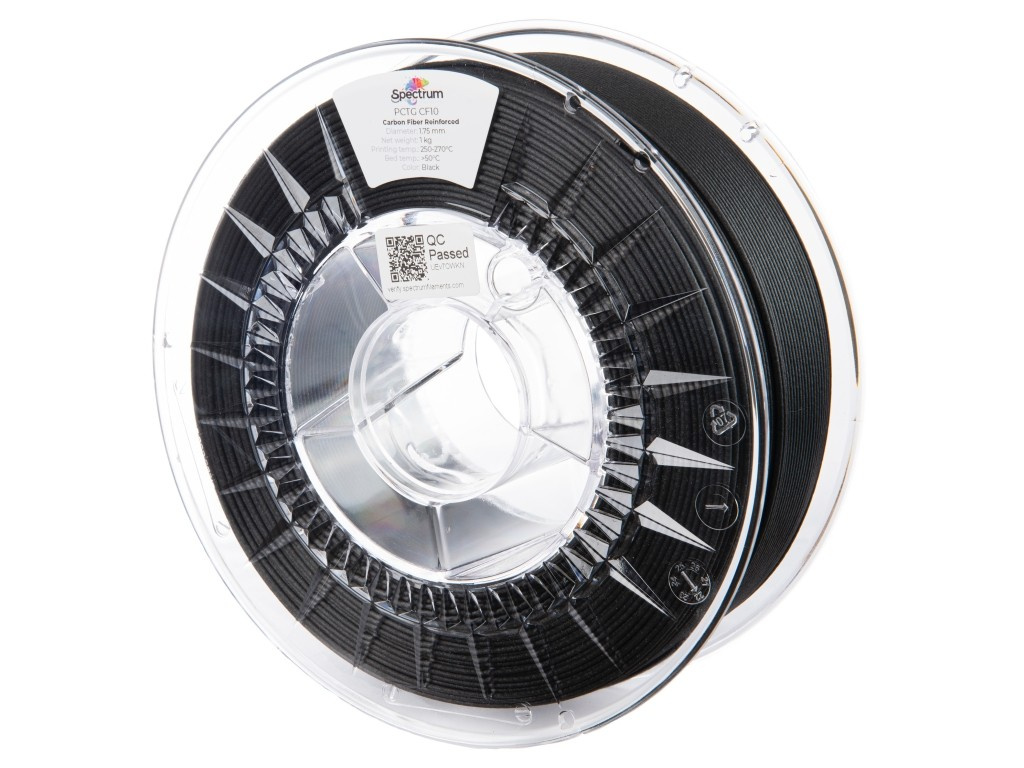

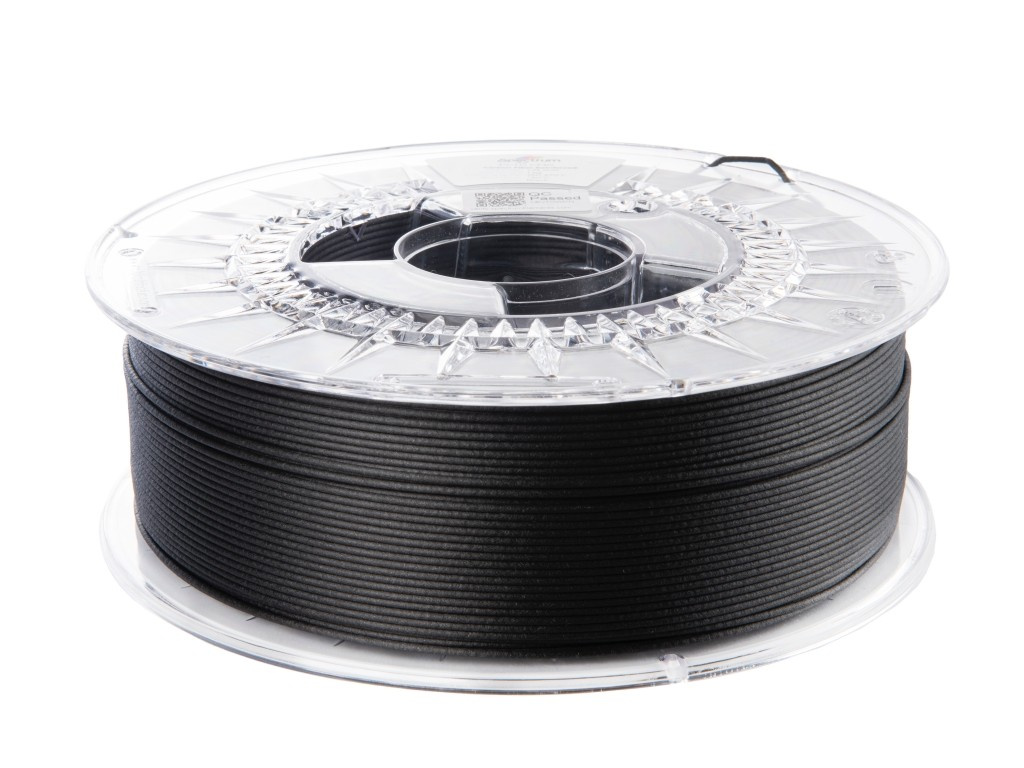

Spectrum 80717 3D filament, PCTG CF10, 1,75mm, 1000g, Black

Spectrum 80717 3D filament, PCTG CF10, 1,75mm, 1000g, Black
Spectrum 80717 3D filament, PCTG CF10, 1,75mm, 1000g, BlackSpectrum 80717 3D filament, PCTG CF10, 1,75mm, 1000g, Black
Images are for illustration purposes only.
RRP 58.29 € (incl. VAT)

You save: 15.27 € (26%)

43.02 €
35.55 € (excl. VAT)
AvailabilityIn external stock
At the supplier:50 pcs and more
Our code: i654_TIFSCM195
černý  color

Parameters

Color:
černý
Packaging:
1 000 grams
Type of material:
PCTG CF10
String diameter:
1,75 mm
Printing temperature:
250 - 270°C
Type of filament:
With reel (full version)

Product description

Durability of PCTG Enhanced by the Benefits of Glass Fibers

The potential contained in highly durable PCTG inspired us to create another composite based on this copolyester – Spectrum PCTG GF10. Thanks to the glass fiber filling, a highly strong fiber with an interestingly matte surface was created.

When composing the mixture, we paid special attention to reducing the abrasiveness of the glass fibers, which is characteristic for this type of filler. For this reason, we used functionalized glass fibers with less aggressive geometry, thereby reducing the degradation of the printer nozzle.

Spectrum PCTG GF10 is a technical filament with properties focused on high stiffness and hardness.

Thanks to extremely high interlayer adhesion and low shrinkage, it allows even intermediate users to produce large prints.

Glass fibers also give prints a distinctive texture, which, in addition to undeniable aesthetic qualities, also results in increased usability. Models made from Spectrum PCTG GF10 material are suitable for applications where increased adhesion, enhanced resistance to cyclic fluctuations, and chemical resistance are important.

Material Properties

  • 10% glass fiber content
  • thermal resistance HDT B – 78 °C
  • Vicat softening temperature – 77 °C
  • high stiffness and tensile strength
  • good impact resistance
  • high quality print surface
  • good corrosion resistance
  • good chemical resistance and electrical and thermal insulating properties
  • high dimensional accuracy of printed components

Applications

  • visual and functional prototyping
  • manufacturing of safety devices, enclosures, and covers
  • protective elements against electric current
  • conceptual models
  • manufacturing of parts exposed to chemicals
  • production tools and instruments
