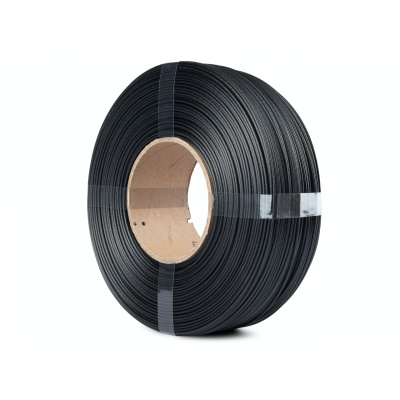

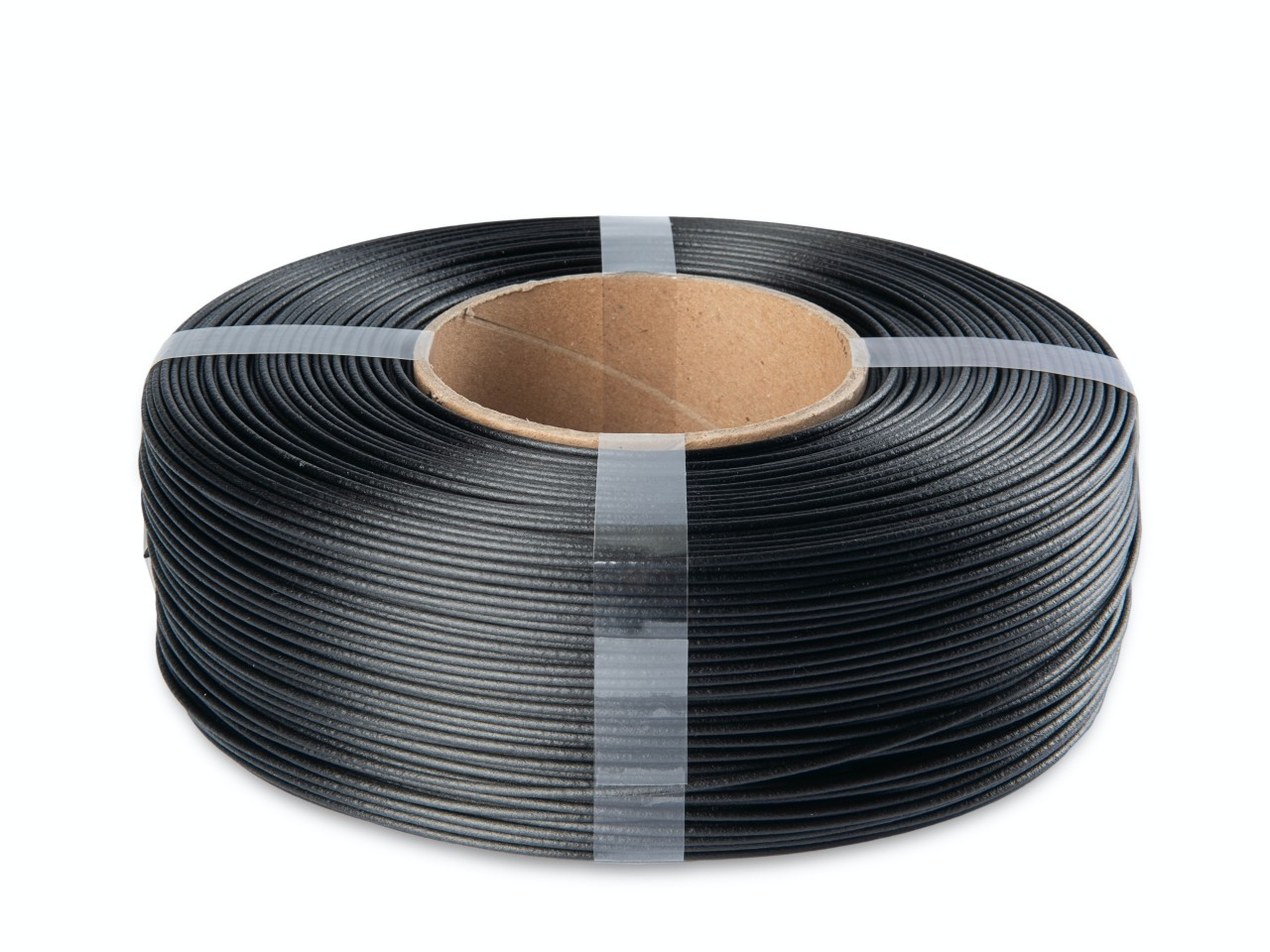

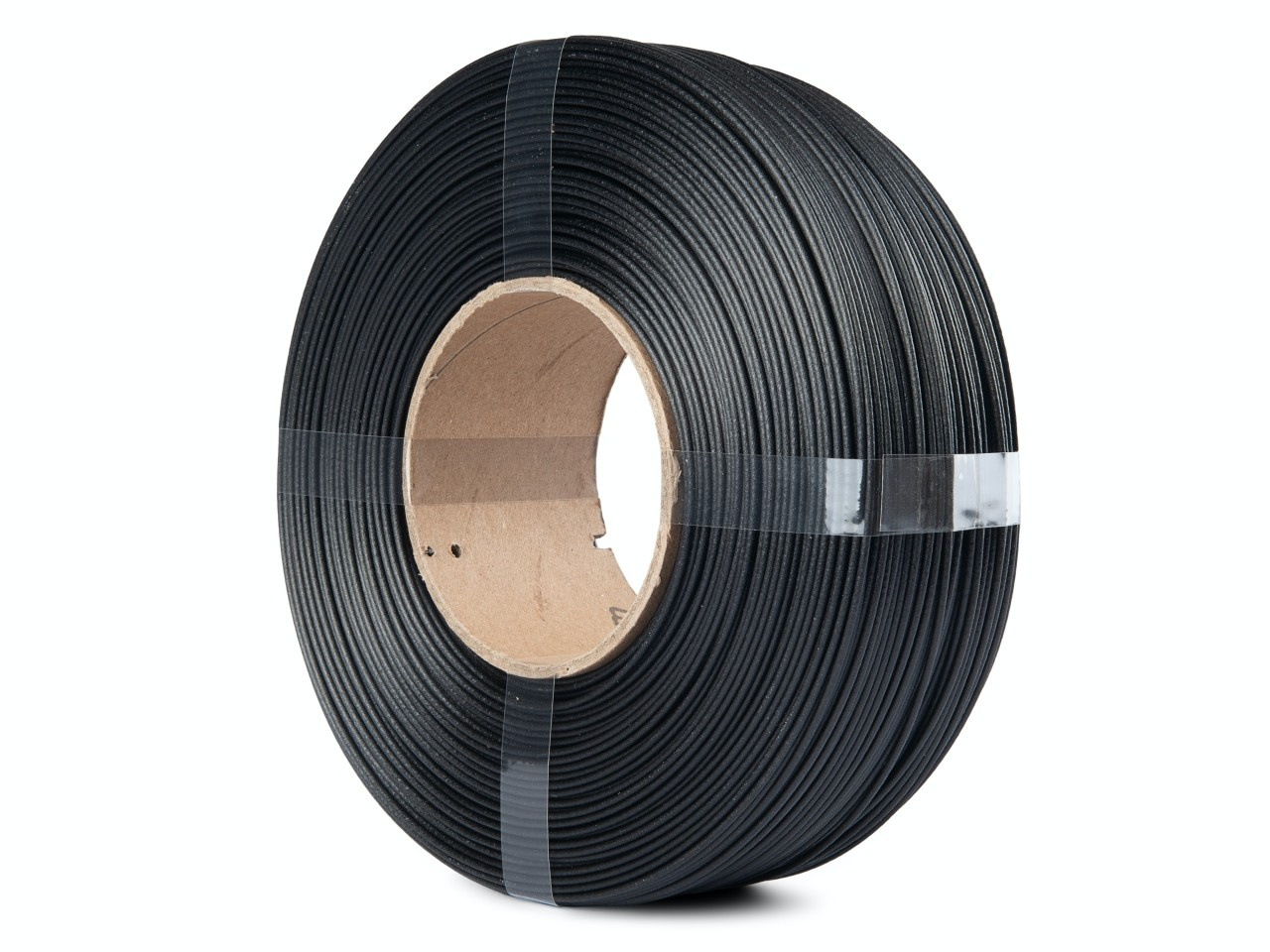

Product description Spectrum 81346 Refill 3D filament, PET-G Carbon, 1,75mm, 1000g, Black
| Color | Black |
| Packaging | 1 000 grams |
| Type of material | Carbon PET-G |
| String diameter | 1,75 mm |
| Printing temperature | 230 - 255°C |
| Type of filament | Without reel (refill) |
Improved hardness and stiffness
Spectrum PET-G Carbon is a modified filament based on PET-G mixed with carbon fibers, which contributes to significantly higher stiffness, hardness, and tensile strength while maintaining low shrinkage and very good adhesion to build platforms typical for pure PET-G. A 10% addition of carbon fibers allows for obtaining matte surfaces of printed materials, which significantly enhances the aesthetic properties of the prints.
Tip: Given the substantial content of chopped carbon fire, it is recommended to use nozzles with a diameter exceeding the standard value of 0.4 mm. The presence of carbon fibers can also cause wear on standard nozzles; therefore, for long-term application of Spectrum Carbon PET-G, it is recommended to use hardened steel or ruby nozzles.
Key Features:
- improved hardness and stiffness compared to pure PET-G
- higher plasticization temperature compared to pure PET-G
- improved abrasion resistance
- much higher compression resistance compared to pure PET-G
- good mechanical properties
- high aesthetic quality, matte finish
- no shrinkage after cooling
- higher plasticization temperature compared to pure PET-G
- improved abrasion resistance
- much higher compression resistance compared to pure PET-G
- good mechanical properties
- high aesthetic quality, matte finish
- no shrinkage after cooling
Applications:
- objects that need to be very rigid and hard while maintaining dimensional accuracy
- production of spacer components exposed to static pressure load
- concept and demo prototyping of designed finished and semi-finished products
- decorative parts (aesthetic properties)
- external structural elements that emphasize the product
- prototyping
- production of spacer components exposed to static pressure load
- concept and demo prototyping of designed finished and semi-finished products
- decorative parts (aesthetic properties)
- external structural elements that emphasize the product
- prototyping
Filament Specifications:
- filament diameter: 1.75mm/2.85mm
- extrusion temperature: 230-255°C
- bed temperature: 60-80°C
- print speed: 30-70mm/s
- extrusion temperature: 230-255°C
- bed temperature: 60-80°C
- print speed: 30-70mm/s
