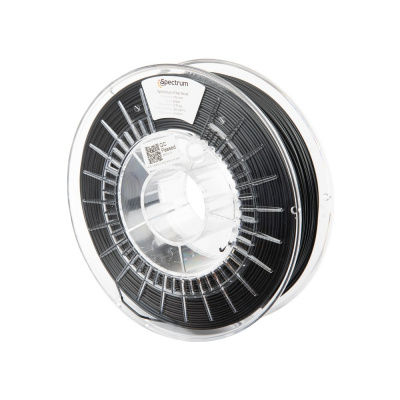

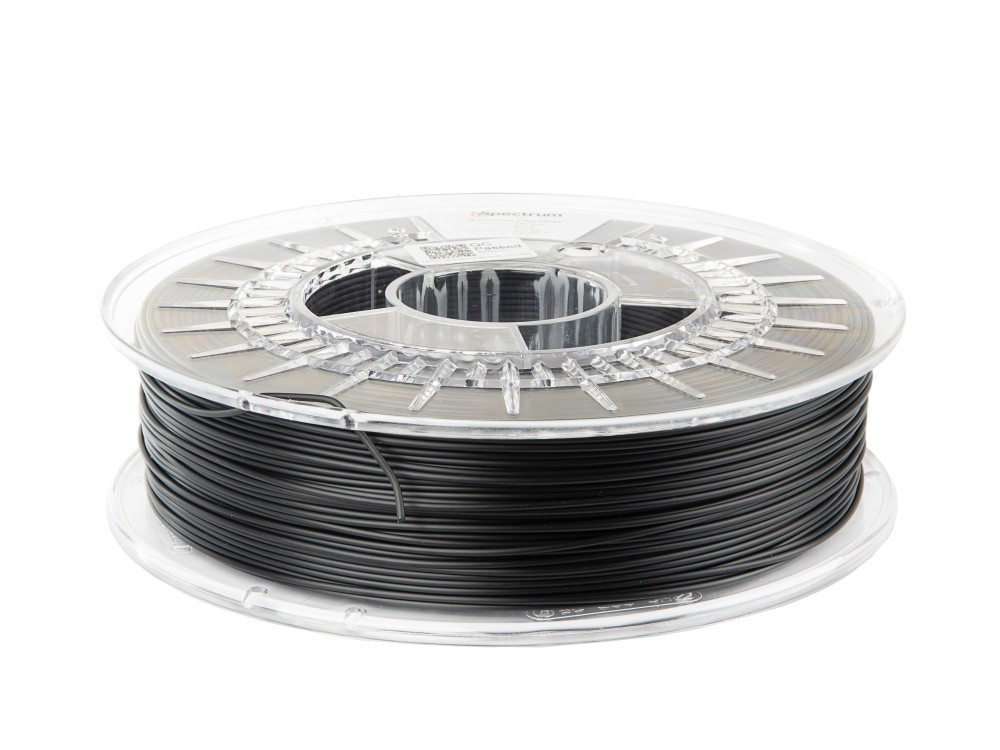

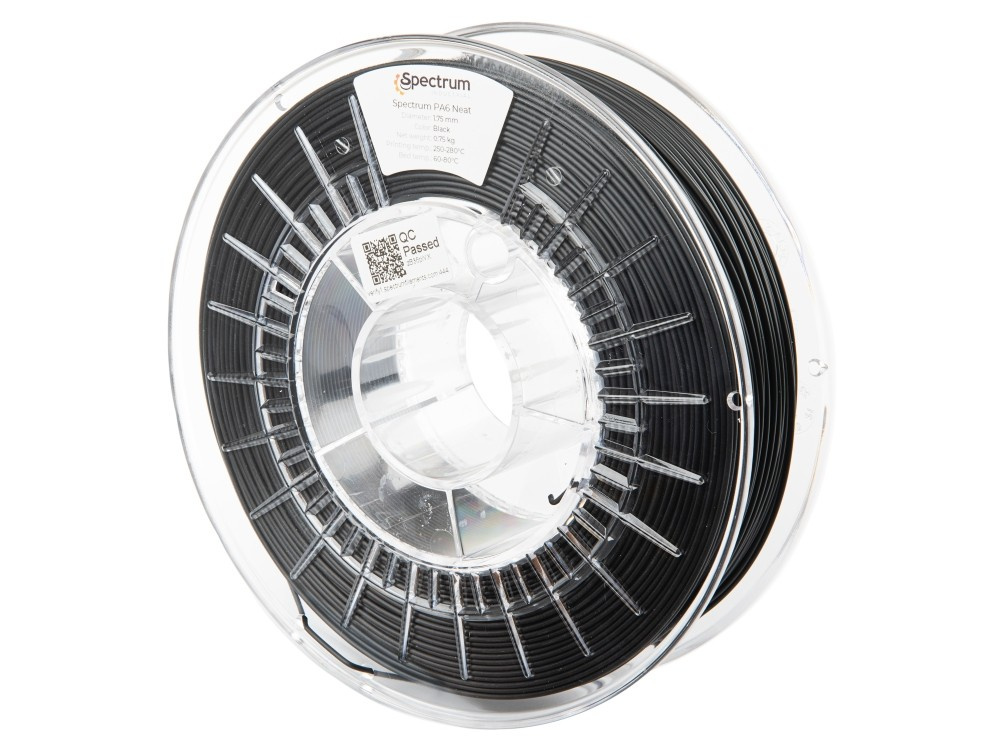

Product description Spectrum 80582 3D filament, PA6 Neat, 1,75mm, 750g, Black
| Color | černý |
| Packaging | 750 grams |
| Type of material | PA6 Neat |
| String diameter | 1,75 mm |
| Printing temperature | 250 - 280°C |
| Type of filament | With reel (full version) |
Highly Functional Polyamide
The Spectrum PA6 Neat BK filament was manufactured based on LUVOCOM 3F PAHT® 9936 BK. The qualitative parameters of the fiber have been fully tested and are certified by Lehmann&Voss&Co KG.
Spectrum PA6 Neat BK (manufactured based on LUVOCOM 3F PAHT® 9936 BK) is a new, highly functional filament based on polyamide 6 in black color.
The main feature of PA6 Neat is its increased mechanical strength compared to other plastics. The material also has exceptional thermal properties, chemical resistance, and relatively high corrosion resistance.The Spectrum PA6 Neat BK (manufactured from LUVOCOM 3F PAHT® 9936 BK) allows long-term operation (20,000 h) at 120 °C while maintaining sufficient mechanical properties.
PA6 Neat has low processing shrinkage (0.3%) and reduced moisture absorption rate (<0.3% 23 °C/24 h). Thanks to the above-mentioned properties, it is an ideal filament for professional users, allowing for the creation of durable prints.From a technical standpoint, the highly attractive properties of the Spectrum PA6 Neat BK material (made from LUVOCOM 3F PAHT® 9936 BK) can be achieved by adhering to the basic storage rules for this type of material (in a dry and dark place with humidity below 15%). To achieve the best properties of the printed object, it is recommended to dry the material before starting work.
Material Properties
- low (linear) shrinkage during processing up to 0.3%.
- high temperature resistance up to 160 °C for short-term operation (max. 200 h)
- very high temperature resistance up to 120 °C for long-term operation (20,000 h).
- heat distortion temperature ? HDT A 90°C (ISO 75)
- water absorption below 0.3% (23°C/24h)
- high creep resistance
- high hardness and stiffness of manufactured parts
- good tribological properties, even under dry friction conditions found in maintenance-free sliding bearings
- chemical resistance to plastic lubricants and oils
- very strong layer lamination
Applications
- manufacturing of end-use parts
- functional prototyping
- industrial modeling
- all types of sealing rings and plates with enhanced chemical and corrosion resistance
- production of gears and belts, sliding bearings, scrapers, and guide rollers operating at elevated temperatures up to 120°C long-term and up to 160°C short-term
