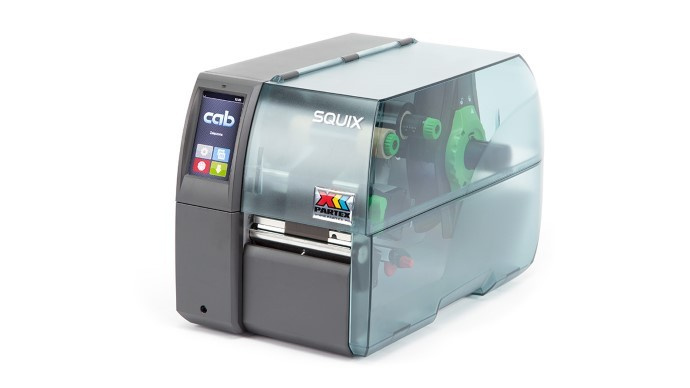

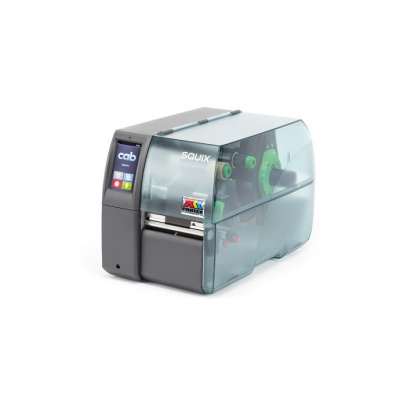

Partex MK10-SQUIX label printer

Product description

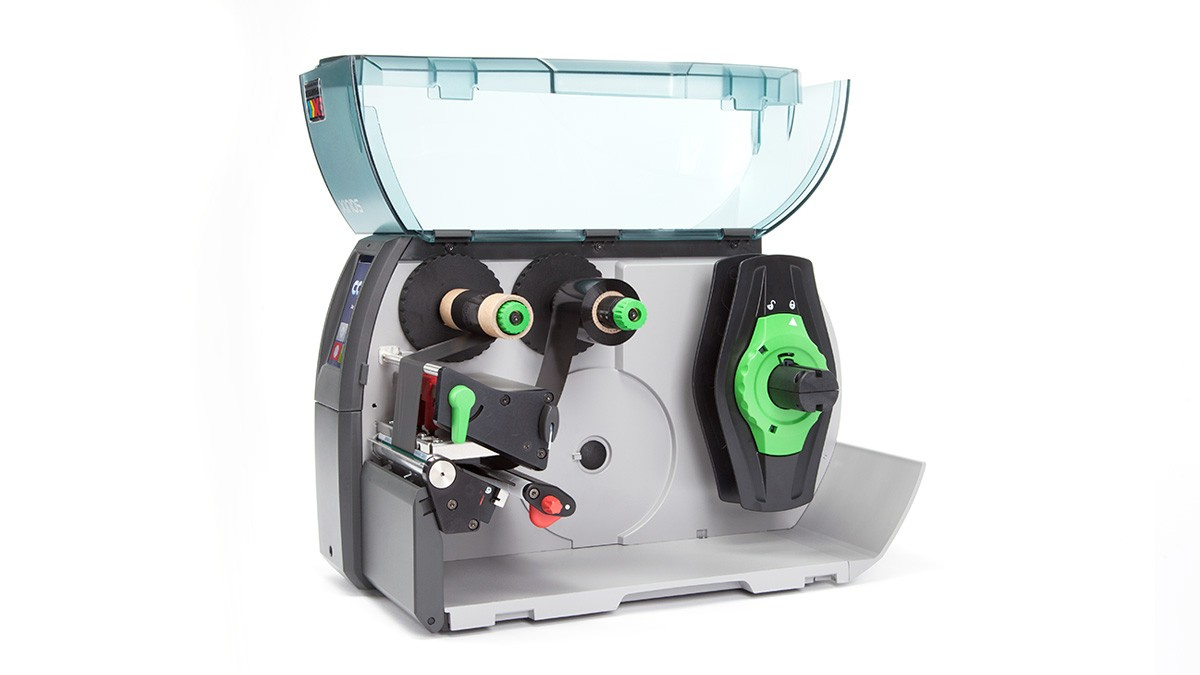

The Partex MK10-SQUIX label printer is a modern, high-performance thermal transfer printer for printing on Partex labels at speeds up to 300 mm/s. The printer can be connected to a computer via USB port or Wi-Fi module. It can be controlled with the special Promark Creator software. The profiles are fed into the printer from the outside or are unwound from rolls and reels located inside the device, then printing and, if necessary, perforation to a specified length chosen by the user takes place. Numerous features, a touch screen and a 102 mm wide print head with 300 dpi resolution make it the perfect device for demanding industrial applications.

Features of the Partex MK10-SQUIX label printer:

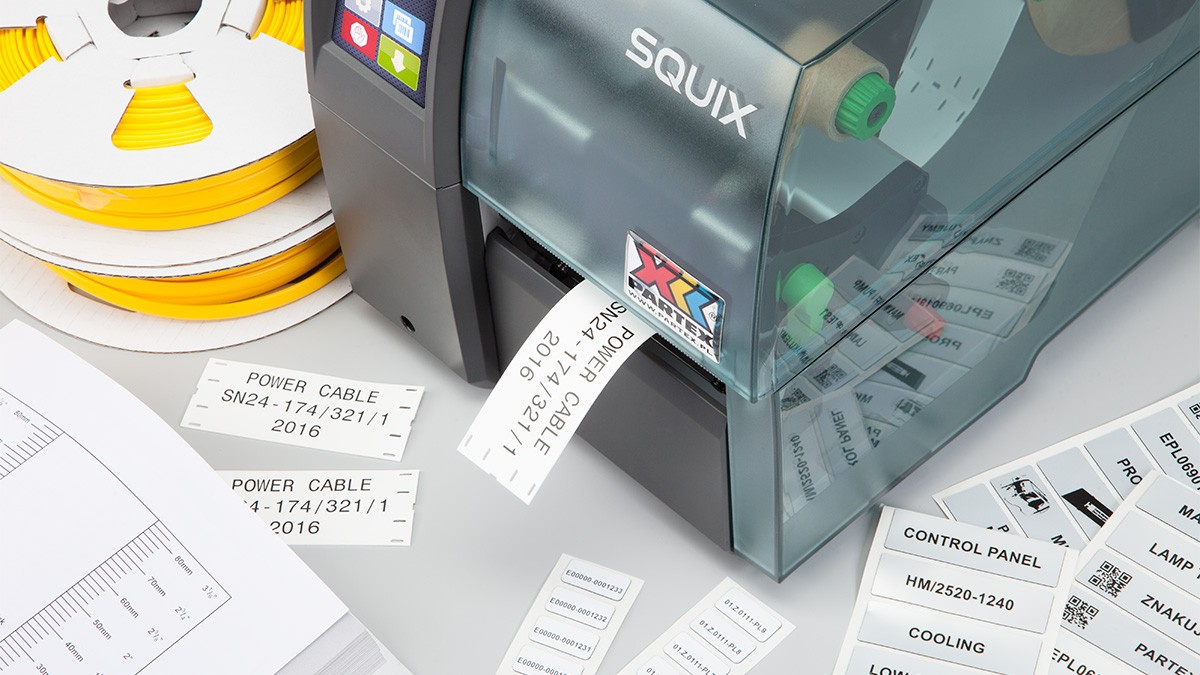

• Suitable for high-volume printing of cable and electrical labels.

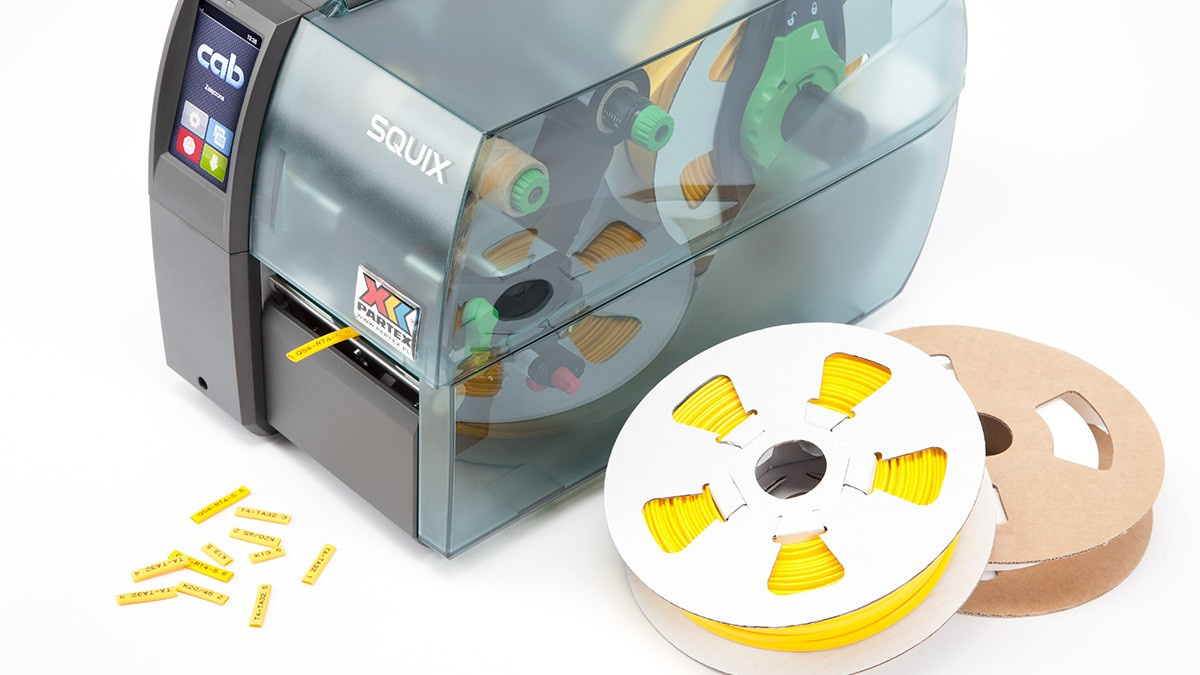

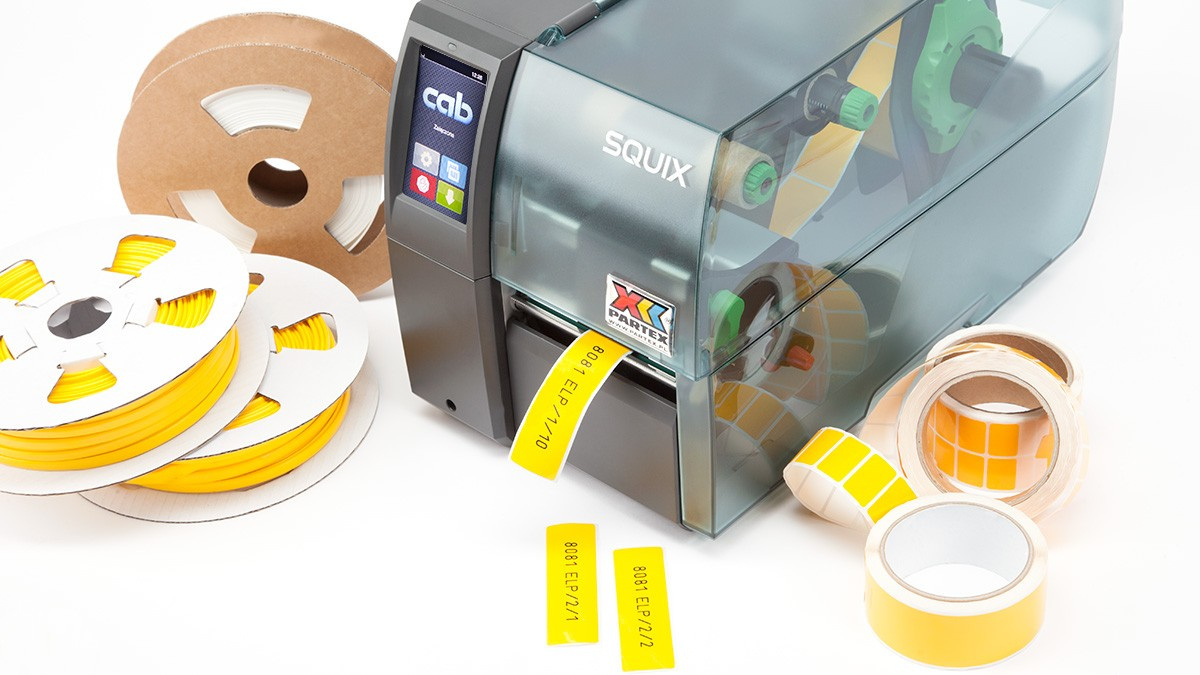

• Feeds, prints and perforates profiles
• Touch screen display - simple and quick to use
• Printing controlled by Promark Creator software
• Ideal for industrial applications
• Enables connectivity via USB port and Wi-Fi module
• Operating temperature - 0 °C to 40 °C
• Storage temperature - 0 °C to 60 °C
• Thermal transfer printing
• Print resolution up to 300 dpi
• Text height - 460 mm
• Memory - 256 MB RAM, 50 MB IFFS

Ink ribbons:

Type BK510 suitable for: PO, POZ, PP+/PPA, PPQ, PKZ, PHZ/PHZF, HFS/HFD. CMZ, EPL, EPF

Type BK2020 suitable for: VOC, PP+/PPA, PKZ, PHZ/PHZF, MSS/MSD, HFS/HFD, EFS/EFD, NFS/NFD, SGS/SGD, CMD, CML, CMM, EPF

Type FTI-M suitable for: MSS/MSD, EFS/EFD, CML, EPF

Type HT suitable for: ETS/ETD, CMT
