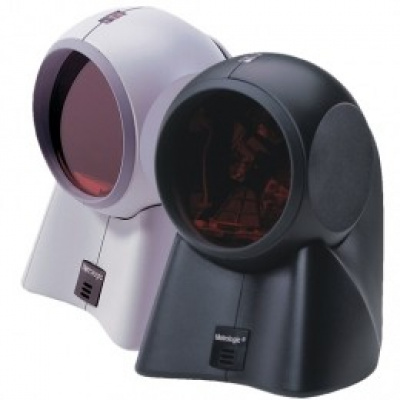

Honeywell MS7120 Orbit, omnidirectional, USB, black (MK-7120) MK7120-31A38

Product description

Are you looking for a reliable and fast barcode scanner that can handle even demanding conditions in a store? The Honeywell MS7120 Orbit is an omnidirectional desktop scanner that combines compact dimensions with high performance. Thanks to its unique design and holographic imaging technology, it can capture barcodes from various angles and distances without the need to aim precisely at the object. It is an ideal choice for checkout counters, storage areas, and smaller sales spaces where saving space and maximizing work efficiency are important.

Why choose the Honeywell MS7120 Orbit?

This scanner is designed to read codes from any direction, which significantly speeds up the scanning process. The scanning head is equipped with a laser diode in the visible spectrum (650 nm ± 5 nm), which ensures accurate and fast reading. The depth of field reaches 0–215 mm, so the scanner can capture codes on objects of various sizes and shapes without the need for precise focusing. A speed of 1200 scans per second and automatic recognition of all commonly used barcode types make Orbit a universal tool for everyday use.

Key product features

• Omnidirectional scanning – reads codes from any angle
• Laser technology with a wavelength of 650 nm ± 5 nm
• Depth of field 0–215 mm for flexible use
• Scanning speed up to 1200 scans per second
• Vertical head tilt up to 30° for better accessibility
• USB connectivity with KBD interface support
• Audible and visual signaling (green LED for active laser, red for successful reading)
• Programmability using programming codes or MetroSet software
• Operating voltage 5 V DC, power consumption only 1.1 W
• Dimensions 150 × 80 × 105 mm, weight 380 g

Design and ergonomics

The Honeywell MS7120 Orbit is a lightweight yet robust scanner that easily fits even into smaller retail spaces. Its shape allows not only desktop use, but also temporary handheld scanning, which is advantageous when working with bulky or hard-to-reach objects. A 30° vertical tilt of the head increases operator comfort and reduces fatigue during prolonged use. The reader is supplied with standard accessories: a cable for the selected interface, a 220 V / +5.2 V transformer, and a user manual.

Technical parameters

• Connectivity: USB
• Placement: Desktop
• Light source: Laser diode 650 nm ± 5 nm
• Depth of field: 0–215 mm
• Scanning speed: 1200 scans/s
• Number of scan lines: 20
• Max. code density: 5.2 mil (0.13 mm)
• Minimum code contrast: 35%
• Communication: KBD
• Audible signaling: 7 tones or off
• Visual signaling: Green LED (active laser), red LED (successful read)
• Input voltage: 5 V DC ± 0.25 V
• Power consumption: 1.1 W
• Operating current: 220 mA
• Standby current: 75 mA
• Laser class: CDRH Class IIa
• Dimensions (H × W × D): 150 × 80 × 105 mm
• Weight: 380 g
• Tilt in stand: 30° vertically

The Honeywell MS7120 Orbit is an ideal choice for companies looking for a reliable, fast, and versatile barcode scanner. Its omnidirectional scanning, compact design, and high performance make it an indispensable assistant in any shop, warehouse, or office.
