Honeywell MS7120 Orbit MK7120-31C41, omnidirectional, RS232, black (MK-7120)

Product description

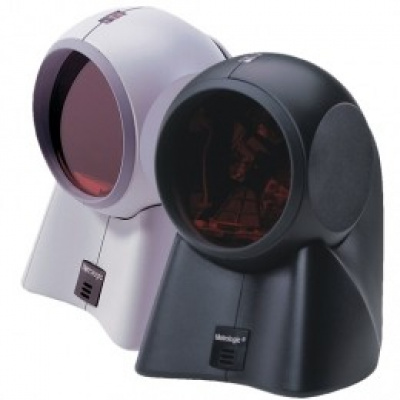

Are you looking for a reliable and fast barcode scanner that can handle even demanding conditions in a store? The Honeywell MS7120 Orbit MK7120-31C41 is a desktop omnidirectional laser scanner that combines compact dimensions with high performance. Thanks to innovative holographic scanning technology, it can focus the laser beam over a wide depth range, ensuring smooth and error-free code reading without the need for precise aiming. This model is an ideal choice for checkout counters, logistics centers, and smaller retail spaces where saving space and maximizing work efficiency are important.

The Orbit scanner is designed to read barcodes from any angle, significantly speeding up the scanning process. Its robust yet lightweight construction withstands everyday wear and tear, while its unique shape allows the device to be used not only as a desktop scanner, but also as a handheld scanner for reading codes from bulky items. The scanning head can be tilted in the stand by up to 30 degrees vertically, allowing the scanning angle to be adjusted to the size and shape of the package. This increases reading success without the need to enlarge the device itself.

• High scanning speed: Up to 1200 scans per second for lightning-fast transaction processing.
• Large depth of field: The range of 0 to 215 mm allows reading codes positioned at various distances.
• Versatility: Automatically recognizes all commonly used types of barcodes.
• Reliable signaling: Audible signaling (7 tones) and light indication (green LED for active laser, red LED for successful reading).
• Compact dimensions: 150 x 80 x 105 mm and a weight of only 380 g, ideal for limited space.
• Programmability: The option to configure using programming codes or via a serial interface.

The technical parameters ensure stable performance even under intensive operation. The reader operates with a laser diode light source in the visible light spectrum (650 nm ± 5 nm) and can also handle codes with a minimum contrast of 35% and a maximum density of 5.2 mil (0.13 mm). Connectivity via the RS232 serial interface ensures compatibility with a range of cash register systems and terminals. The input voltage is 5 V DC and the power consumption is only 1.1 W, ensuring energy efficiency. The package includes the sensor, a cable for the selected interface, a 220 V / +5.2 V transformer, and a user manual. The laser diode complies with the CDRH Class IIa safety standard, making it safe for normal use in a commercial environment.
