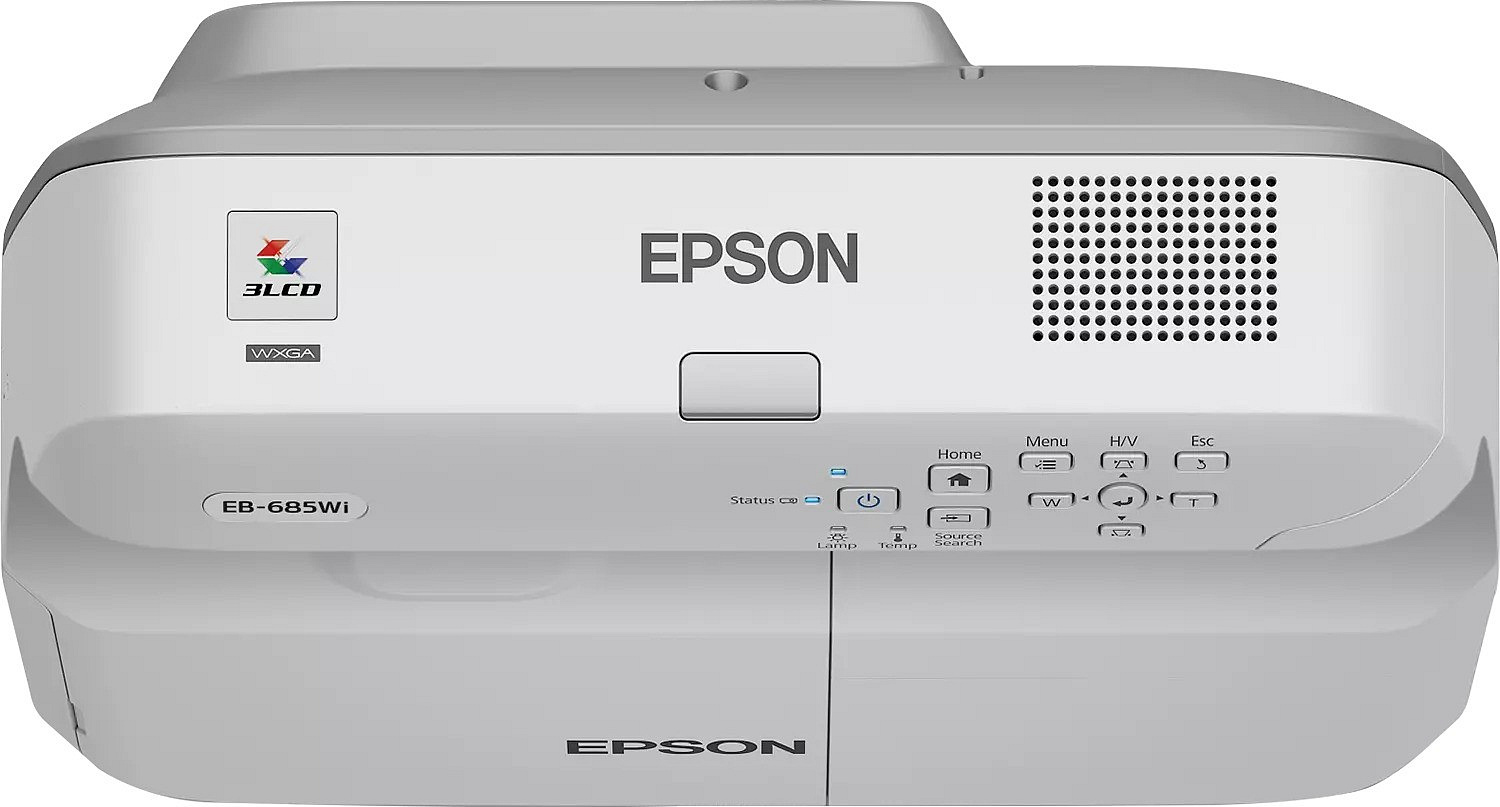

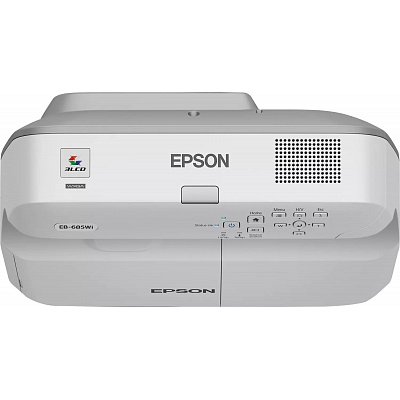

EPSON 3LCD EB-685Wi (without mount)

Product description

TECHNOLOGY

Projection System: 3LCD Technology
LCD Panel: 0.59 inch with D9


Color Light Output: 3.500 lumens - 2.900 lumens (economical)
White light output: 3.500 lumens - 2.900 lumens (economic) in accordance with ISO 21118:2012
Resolution: WXGA, 1280 x 800, 16:10
High Definition HD: HD ready
Aspect Ratio: 16:10
Contrast Ratio: 14.000 : 1
Native Contrast: 300 : 1
Lamp: 250 W, 5.000 h Lifespan, 10.000 h Lifespan (in power-saving mode), 9.000 h Lifespan (in power-saving mode)
Keystone Correction: Manual Vertical: ± 3 °, Manual Horizontal ± 3 °
Video Editing: 10 bits
2D Vertical Refresh Rate: 100 Hz - 120 Hz
Color Reproduction: Up to 1.07 billion colors

OPTICS

Projection Ratio: 0.28:1
Zoom: Digital, Factor: 1 - 1.35
Lens: Optics
Projected Image Diagonal: 60 inches - 100 inches
Projection Distance - Wide: 0.4 m (60 inch display)
Projection Distance - Tele: 0.4 m (60 inch display)
Projection Lens Aperture: 1.6
Focal Length: 3.76 mm
Focus: Manual
Shift: 6 : 1

CONNECTIVITY OPTIONS

USB Display Function: 3-in-1: image / mouse / sound
Interface: USB 2.0 type A, USB 2.0 type B, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11 b/g/n (optional), VGA input (2x), VGA output, HDMI input (3x), Composite input, RGB input (2x), RGB output, MHL, Audio output, stereo mini-jack, Audio input, stereo mini-jack (3x), microphone input, Sync input, Sync output
Smart Device Connection: Ad-hoc / Infrastructure

ADVANCED FEATURES

Security: Kensington lock, Password protection, Security cable slot, Wireless LAN unit lock, Wireless LAN security, Password protection
2D Color Modes: Dynamic, Cinema, Presentation, sRGB, Blackboard
Features and Functions: A/V mute slide, Auto calibration, Auto brightness adjustment, Auto input signal selection, Built-in speaker, CEC standard compatibility, Customizable user logo, Digital zoom, Direct power on/off, Document camera compatibility, Dynamic lamp control, Easy OSD menu presets, Home screen, Interactive, Long-life lamp, MHL interface for audio/video, Microphone input, PC Interactive, PC-free annotations, Split screen function
Interactivity: Yes - pen
Color Modes: Blackboard, Dynamic, Presentation, Sports, sRGB, Whiteboard
Projector control: via: AMX, Crestron, Control4

GENERAL INFORMATION

Power Consumption: 354 W, 310 W (economy), 0.39 W (standby)
Power Supply: AC 220 V - 240 V, 50 Hz - 60 Hz
Product Dimensions: 367 x 400 x 149 mm (width x depth x height)
Product Weight: 5.9 kg
Max. noise level: Normal mode: 35 dB (A) - Quiet mode: 30 dB (A) - Eco2: 29 dB (A)
Temperature: Operation 5° C - 35° C, Storage -10° C - 60° C
Humidity: Operation 20% - 80%, Storage 10% - 90%
Included software: Easy Interactive Tools, EasyMP Monitor, EasyMP Multi PC Projection
Accessories: Air filter, Connection and control unit, Document camera, External speaker, Pen tip (felt), Pen tip (teflon), Extension USB cable, Wireless network unit
Compatible operating systems: Linux, Mac OS 10.10.x, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Windows 10, Windows 8, Windows 8.1
Speakers: 16 W
Package contents: Digital pens, Pen holder, Power cable, Quick start guide, Remote control incl. battery, USB cable, User manual (on CD-ROM), Warranty card
Colour: White/grey

OTHER

TCO Certified: Yes
Warranty: 5 years with the supplier or 8.000 h, Lamp: 5 years or 1.000 h
