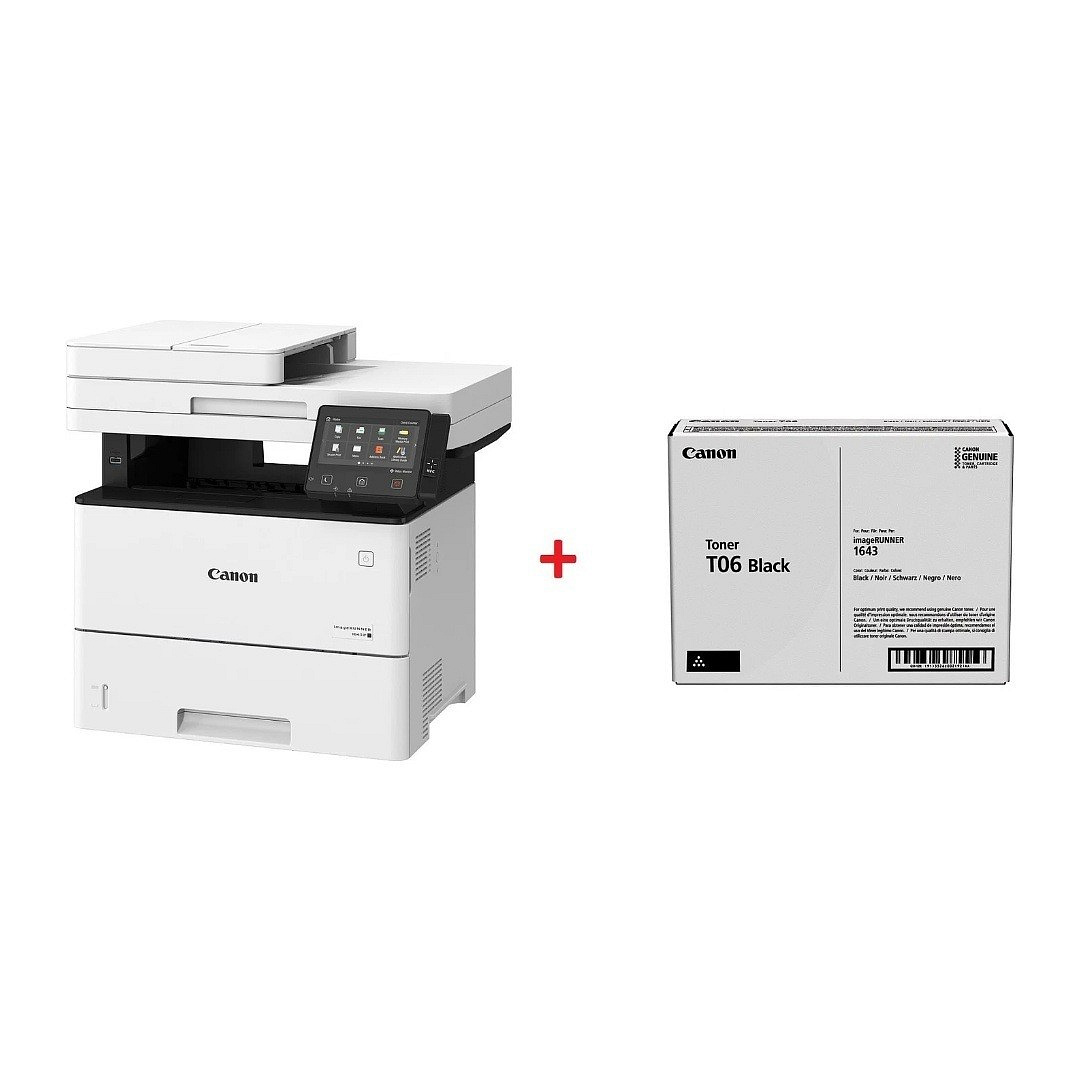

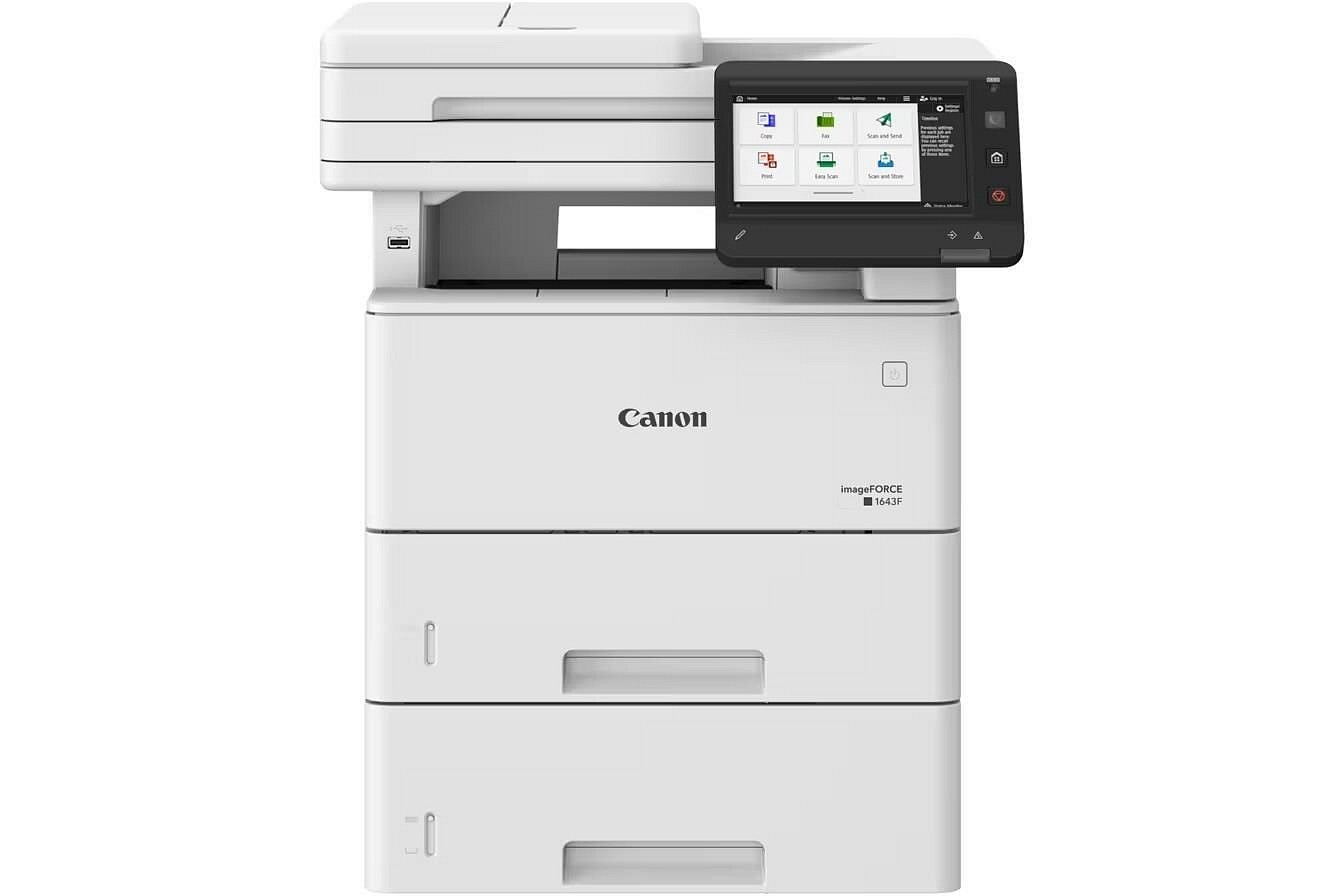

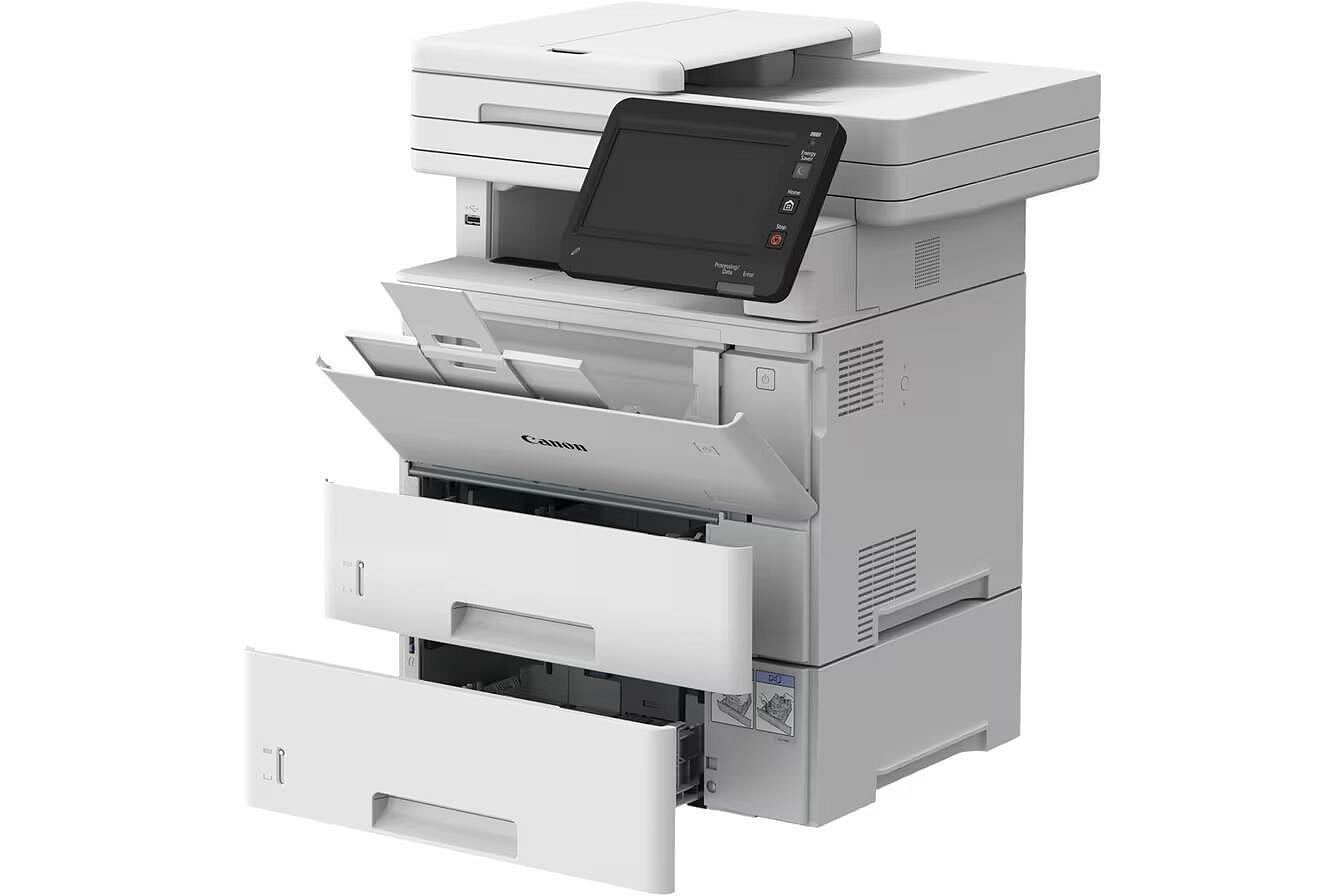

Canon imageFORCE 1643F 7064C004 laser multifunction printer + T06 toner

Product description

CANON imageFORCE 1643F + T06 toner
Compact yet powerful black-and-white multifunction device for A4 format, supporting high productivity for businesses thanks to fast and secure document processing.
This printer combines the external characteristics of a desktop printer with the internal mechanical durability of large copiers. Its dimensions are designed to make it a compact device that easily fits on a standard desk, in the corner of an office, or at a reception desk.
Install applications that enhance the capabilities of imageFORCE devices, including secure printing, workflow automation, and mobile integration.
The imageFORCE 1643F model is made from recycled materials, with more than 25% recycled plastic content. It is compact, lightweight, and built on a sturdy welded frame that gives it exceptional durability. Thanks to its low energy consumption, it is an excellent choice for users who want to meet their sustainability goals.

Main advantages:
* higher productivity - increase your company's performance thanks to high printing and scanning speeds, time-saving document processing workflows, and large paper capacity for uninterrupted print jobs
* simple operation and user interface - a large and intuitive user interface helps ensure smooth printing and scanning - support for cloud and mobile device connectivity ensures excellent usability and easy document sharing
* reliable security - enjoy complete peace of mind thanks to top-tier security features that help you protect all sensitive data - Trellix Embedded Control software and AI-trained machine learning-based firmware recommend optimal security settings, helping protect your business from potential cyber attacks
* meeting sustainability goals - reduce environmental impact with devices made of up to 25% recycled plastic and featuring low energy consumption thanks to built-in innovative functions

PRINTER SPECIFICATIONS:
Device type: monochrome multifunction laser device for A4 format
Available functions: printing, copying, scanning, sending, and faxing
Printing technology: laser (exposure of the print drum by a laser beam)
Print resolution [DPI]: 1200 x 1200

Paper input (standard): standard: 650 sheets

Paper supply capacity (A4, 80 g/m2):
* maximum: 2,300 sheets (with 3x PF C1 paper feeder (Paper Feeder PF-C1))

Paper output capacity (A4, 80 g/m2): 150 sheets

Supported media types:
* multipurpose tray: thin paper, plain paper, recycled paper, colored paper, thick paper, bond paper, labels, letterhead, envelopes
* paper cassette: thin paper, plain paper, recycled paper, colored paper, thick paper, bond paper, letterhead

Supported media sizes:
* multipurpose tray:
- standard size: A4, A5, A5R, A6, B5
- custom size: 76.2 × 127.0 mm to 216.0 × 356.0 mm
* envelopes: COM10 No. 10, Monarch, ISO-C5, DL
- custom envelope size: 76.2 × 127.0 mm to 216.0 × 356.0 mm
* paper cassette:
- standard size: A4, A5, A5R, A6, B5
- custom size: 105.0 × 148.0 mm to 216.0 × 355.6 mm

Supported media weights:
* multipurpose tray: 60 to 200 g/m2
* paper cassette: 60 to 120 g/m2
* duplex: 60 to 120 g/m2

PRINTING:
* print speed:
- single-sided: up to 43 ppm/min (A4), up to 65.2 pages./min (A5 – landscape)
- duplex:: up to 36 ipm/min (A4)
* print resolution: up to 1200 × 1200 dpi
* duplex printing: yes
* direct printing: supported file types: PDF, TIFF/JPEG, XPS (USB memory, network location)

* warm-up time: approx. 4.0 seconds (time from turning on the device power until an operation can be performed on the touch panel display), 20 seconds from sleep mode
* page description languages (PDL): standard: UFR II, PCL6/PCL5 (supported commands only—requires a third-party driver or direct printing from an application), Adobe PostScript 3TM
* standard operating system printing: Android, Windows 10/11, Chrome OS, macOS (version 11.2.2 or later), iOS (version 15.2 or later), iPadOS
* printing from mobile devices and the cloud: AirPrint, Mopria, IPP Everywhere, Canon PRINT, uniFLOW Online (optional) and Microsoft Universal Print
* print functions: secure printing, security watermark, header/footer, page layout, duplex printing, mixed paper sizes / orientation, reduced toner consumption, poster printing, forced print hold, print date, scheduled printing, printing via virtual printer
* operating systems:
- UFR II: Windows 10 / 11 / Server 2016 / Server 2019 / Server 2022 / Server 2025, macOS (version 10.15 or later)
- PCL: Windows 10 / 11 / Server 2016 / Server 2019 / Server 2022 / Server 2025
- PS: Windows 10 / 11 / Server 2016 / Server 2019 / Server 2022 / Server 2025, macOS (version 10.15 or later)
- PPD: Windows 10 / 11, macOS (10.15 or later)

COPYING:
* copying speed:
- single-sided: up to 43 pages/min (A4)
- duplex:: up to 36 images/min (A4)
* first copy out time: scanner glass - approx. 6.3 seconds or less; ADF - approx. 6.4 seconds or less
* copy resolution: 600 × 600 dpi
* multiple copies: up to 9,999 copies
* zoom - variable magnification: 25 to 400% (in 1% increments)
* basic copy functions: preset reduction/enlargement ratios by area, duplex copying, density adjustment, original type selection, interrupt mode, duplex original, sorting, job build, N on 1, sharpness, frame erase, ID card copying, reserve copy, sample copy

SCANNING:
* scan resolution: 600 × 600 dpi

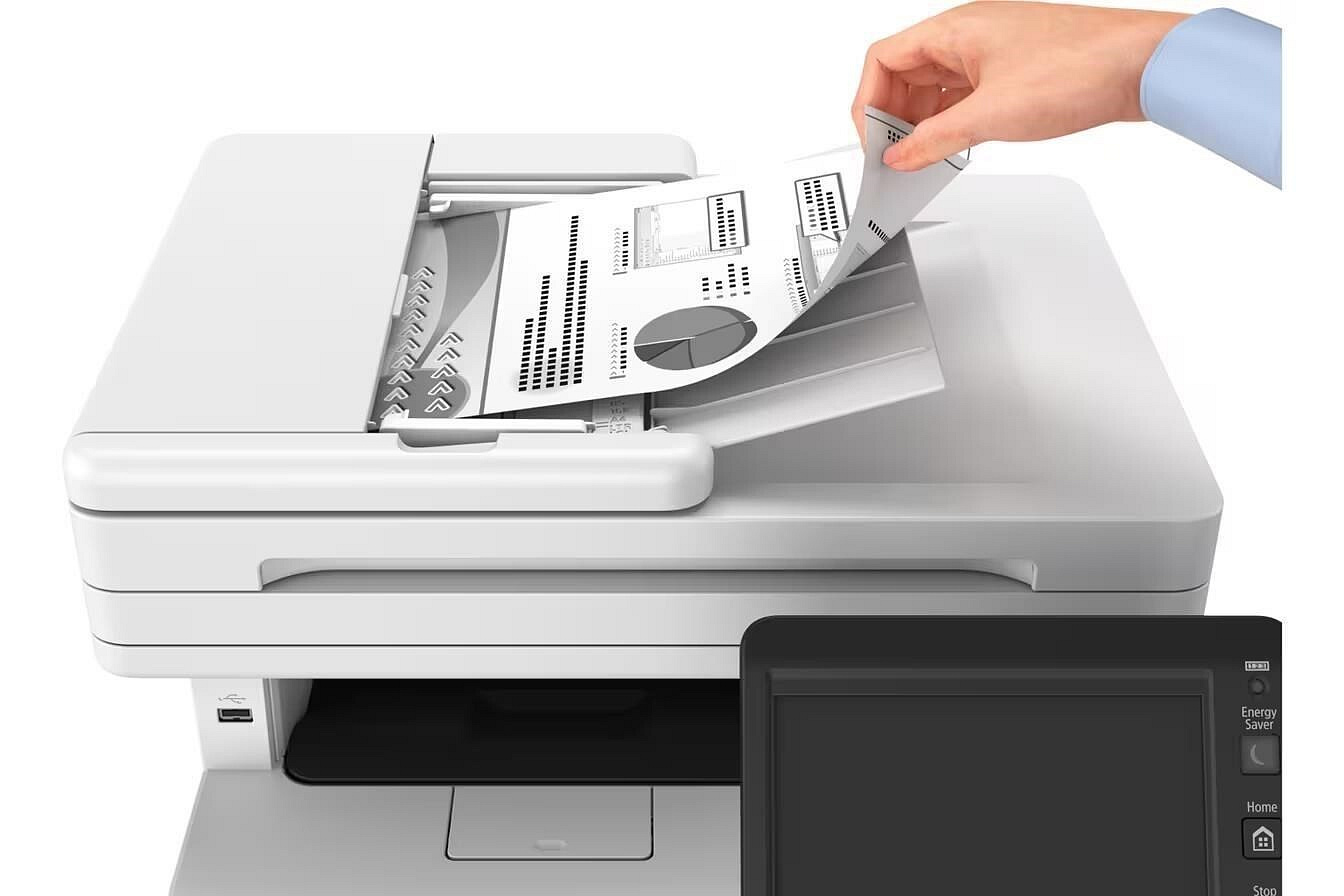

* type: single-pass duplex automatic document feeder (duplex to duplex (automatic))
* scanning speed:
for sending (300 × 300 dpi):
- simplex scanning: 50 (black and white), 40 (color)
- duplex scanning: 100 (black and white), 80 (color)
copying: scan speed priority (300 × 600 dpi: default)
- simplex scanning: 40 (black and white), 20 (color)
- duplex scanning: 80 (black and white), 40 (color) duplex scanning: 40 (black and white), 20 (color)
* scanning method: Push Scan, Pull Scan, network scan, scan to memory media (USB memory device), scan to cloud services (Application Library / uniFLOW)
* acceptable originals/weight:
- scanning size on glass: up to 216 × 355.6 mm
- media size for document feeder: A4, A5R, A6, B5
- custom size: 48.0 × 85.0 mm to 216.0 × 355.6 mm
* PC-controlled scanning:
- ScanGear MF and MF Scan Utility for both TWAIN and WIA
- supported OS: Windows 10 / 11 / Server 2016 / Server 2019 / Server 2022 / Server 2025

FAXING:
* max. number of connected lines: 1
* resolution (dpi): 400 × 400 (ultra fine), 200 × 400 (very fine), 200 × 200 (fine), 200 × 100 (standard)
* modem speed: Super G3: 33.6 kb/s, G3: 14.4 kb/s
* compression method: MH, MR, MMR, JBIG
* fax memory: up to 512 pages (90 jobs)
* speed dials: max. 281
* group presets/recipients: max. 299 presets
* sequential broadcasting: max. 310 addresses
* memory backup: yes
* send/receive size:
- sending: A4, A5R*, A6*, B5* (* sent in A4 format)
- receiving: A4, A5, A5R, B5
* fax functions: sender name (TTI), direct sending, preview, transmission report, sequential broadcasting

SEND FUNCTIONS:
* destination: standard - E-mail / Internet FAX (SMTP-supported OAuth 2.0 authentication method)0 for Microsoft 365 and Google Workspace), SMB, FTP, WebDAV, mailbox; optionally - Super G3 FAX, IP Fax
* address book/speed dials: LDAP (2,000) / local (1,600) / speed dial (200)
* communication protocol: file - FTP (TCP/IP), SMB 3.1.1 (TCP/IP), WebDAV; e-mail/iFax - SMTP, POP3
* file formats: standard: TIFF, JPEG - single-sided only, PDF (compact, searchable, PDF/A-1b, encrypted), XPS (compact, searchable), PDF/XPS (with device signature, Office Open XML (PowerPoint, Word); optional - PDF (vectorization and smoothing), PDF/XPS (user signature)
* universal sending functions (SEND): original type selection, double-sided original, book to two pages, different-sized originals, density setting, sharpness, frame erase, job build, delayed sending, preview, job completion notification, file name, subject/message, reply, e-mail priority, transmission report, original content orientation

CONNECTIVITY OPTIONS and SW:
Interfaces:
* Ethernet/LAN interface (1000Base-T/100Base TX/10Base-T) - network interface for wired connection of the printer to a local computer network (RJ-45 connector)
* wireless WiFi 802.11b/g/n - interface for wireless connection to a home or corporate Wi-Fi network and printing from mobile devices
* WiFi Direct connection
* USB (for direct connection to a computer or connecting external devices)
- standard: 2× USB 2.00 (host), 1× USB 2.0 (device)

ADDITIONAL FUNCTIONS:
* recommended monthly print volume: 2,000 to 5,000 A4 pages per month (RMPV)
* processor: main dual-core processor with a frequency of 1.6 GHz and auxiliary single-core processor with a frequency of 800 MHz
* memory: printer - 2.0 GB RAM
* storage: 64 GB eMMC
* control panel: 7" color TFT LCD touchscreen panel with a diagonal of 17.8 cm

PHYSICAL PARAMETERS:
Dimensions (W×D×H) [mm]: 480 mm × 518 mm × 458 mm
* installation space (W×D): 680 mm × 980 mm
Weight [kg]: approx. 20.5 (including standard toner)
Operating environment:
* temperature: 10 to 30 °C
* humidity: 20 to 80% RH (non-condensing)
* printer made with more than 25% recycled plastic content
* standards: Blue Angel certificate

POWER SUPPLY:
* power supply: 220 to 240 V (±10%), 50/60 Hz (±2 Hz)
* power consumption: max. approx. 1400 W, when printing: approx. 522 W, standby mode: approx. 12.2 W, sleep mode: approx. 0.8 W
* Typical Electricity Consumption (TEC): 0.38 kWh/week (230 V)
- detailed information regarding the ErP Lot6/26 directive can be found at: http://www.canon-europe.com/For_Work/Lot26/index.aspx
Noise level [dB]:
* acoustic pressure: during operation - 53 dB; standby mode: 25 dB
* acoustic power level: during operation duplex printing 67 dB / simplex printing 68 dB; standby mode: 40 dB

Software and printer management:
* monitoring and reporting: uniFLOW Online (optional)
* remote management tools: iW Enterprise Management Console, monitoring service
* scanning software: Color Network ScanGear2 - for TWAIN and WIA interfaces
* optimization tools: Canon Driver Configuration Tool

Security specifications: authentication and access management, network, document and device security, device management and audits, for more details see the manufacturer's website https://www.canon.cz/business/products/office-printers/multifunction/black-and-white/imageforce-1643-series/specifications/imageforce-1643f.html

Optional paper sources:
* paper feeder: PF-C1 paper feeder
* paper capacity: 550 sheets (80 g/m2)
* paper type: thin paper, plain paper, recycled paper, colored paper, heavy paper, bond paper, letterhead paper
* paper size: A4, A5, A5R, A6, B5
* custom size: 105.0 × 148.0 mm to 216.0 × 355.6 mm
* paper weight: 60 to 120 g/m2

Hardware accessories:
* other printing options: MiCard Reader Attachment Kit-B1, Plain Pedestal Type-V2, Plain Pedestal Type-AB1

System accessories and optional drivers:
* printing accessories: PCL International Font Set-A1, Barcode Printing Kit-E1E
* system accessories: Universal Send Trace & Smooth PDF Kit-A1, Universal Send Digital User Signature Kit-C1

Consumables:
* T06 Black toner
* estimated yield (at 5% coverage): T06 BK toner - 20,500 pages

Package contents:
* Canon imageFORCE 1643F multifunction laser printer + original black toner T06 BK (3526C002 - 20,500 pages)
* single-pass duplex automatic document feeder (DADF) – for automatic double-sided scanning and copying with a capacity of 55 sheets
* 1× built-in paper tray (capacity 550 sheets) and 100-sheet multipurpose tray
* power cable, drum unit (photoconductor drum) - pre-installed, waste toner container - pre-installed
* installation and user manual
- data cables and other accessories are not included in the package

Warranty: 12 months

Link to the manufacturer's website: https://www.canon.cz/business/products/office-printers/multifunction/black-and-white/imageforce-1643-series/specifications/imageforce-1643f.html
