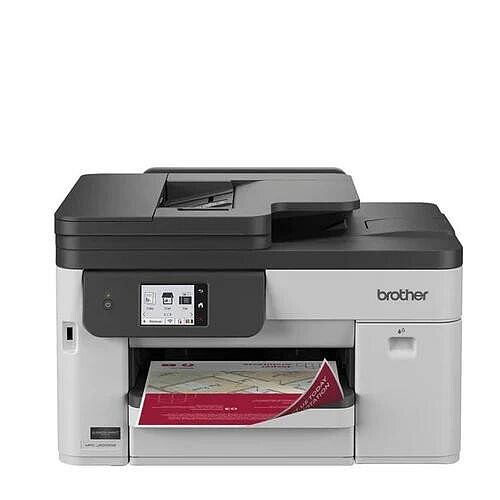

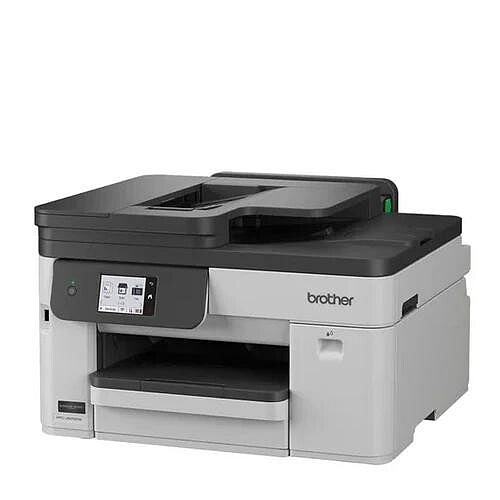

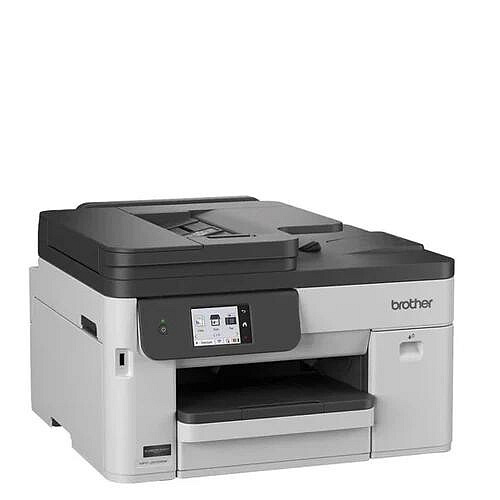

Brother MFC-J5110DW MFCJ5110DWYJ1 inkjet multifunction printer

Product description

Brother MFC-J5110DW – wireless office multifunction printer

The Brother MFC-J5110DW is a powerful color inkjet multifunction printer designed for small offices and workgroups. It offers fast printing, automatic duplex scanning, copying and faxing, two paper trays with a total capacity of 500 sheets, and a multipurpose feeder for an additional 100 sheets. Thanks to dual-band Wi-Fi, Gigabit Ethernet, mobile printing, and high-capacity ink cartridges, it ensures reliable and economical office operation.



Main advantages

• Color printing, scanning, copying, and faxing
• Automatic duplex printing, scanning, copying, and faxing
• Print speed up to 28 ppm
/min black and white and 26 figs./min in color
• Duplex scanning at speeds of up to 30 ppm./min
• Two paper trays with a total capacity of 500 sheets
• 100-sheet multipurpose tray feeder
• 50-sheet automatic document feeder
• Output tray with a capacity of 150 sheets
• Large color touchscreen with a diagonal of 10.9 cm
• Dual-band Wi-Fi, Wi-Fi Direct, Gigabit Ethernet and USB
• Direct printing and scanning using a USB flash drive
• Support for PCL6 and BR-Script3
• Pigment inks with yields of up to 6,000 black-and-white and 5,000 color pages
• Advanced security and network features

Fast and high-quality printing

Brother MFC-J5110DW prints at speeds of up to 28 ppm/min black and white and 26 figs./min in color. With automatic duplex printing, it reaches speeds of up to 22 ppm./min black and white and 21 figs./min in color.

The first page can be ready in approximately 4.5 seconds for black-and-white printing and 4.7 seconds for color printing.

The maximum print resolution reaches 1,200 × 4,800 dpi.

Supported features include:

• Borderless printing up to A4 size
• Booklet printing
• Poster printing
• Watermark printing
• Print 2, 4, 9, or 16 pages on one sheet
• Mirror and reverse printing
• Secure printing protected by a four-digit code
• Direct printing of PDF and JPEG files from a USB flash drive

Large capacity and flexible paper handling

The printer features two 250-sheet trays, reducing the need for frequent paper refilling.

The user may simultaneously have, for example, standard office documents prepared in two different formats.

The 100-sheet multipurpose feeder supports office, recycled, inkjet, and glossy paper, envelopes, photo media, and long paper up to 1,200 mm in length.

Automatic duplex printing is supported, for example, for A4, A5, Letter, Legal, Executive, and Folio formats.

The automatic document feeder holds up to 50 originals.

Efficient scanning and copying

The dual CIS scanner enables automatic duplex scanning of documents without manually turning the original.

Single-sided scanning reaches speeds of up to 25 ppm./min, duplex scanning up to 30 ipm/min in color and black and white.

The scanner's optical resolution reaches:

• Up to 600 × 600 dpi when scanning from the ADF
• Up to 1,200 × 2,400 dpi in black and white from the scanner glass
• Up to 1,200 × 1,200 dpi in color from the scanner glass

Documents can be scanned to email, file, image, OCR, FTP, network folder, USB storage, or supported cloud services.

The preview function allows you to check the contents of scans destined for an FTP, network, or email server before sending.

Practical features include automatic straightening, background color removal, blank page skipping, and automatic cropping.

Document copying

Copying speed reaches up to 24 ppm./min black and white and 14 figs./min in color. With duplex copying, the speed is up to 18 ppm./min black and white and 12 figs./min in color.

Also available:

• Copy preview before printing
• Copying 2 or 4 pages onto one sheet
• Enlargement and reduction from 25 to 400%
• Automatic fitting of the original to the page
• Poster copying
• Batch copying up to 999 copies

Connectivity and mobile printing

The Brother MFC-J5110DW offers a wide range of connectivity options:

• 2.4 GHz and 5 GHz Wi‑Fi
• Wi‑Fi Direct
• Gigabit Ethernet
• High-speed USB 2.
0
• Front USB port for flash drive
• Apple AirPrint
• Mopria
• Brother Mobile Connect
• Brother Print Service Plugin
• Microsoft Universal Print
• Driverless printing via IPP
• ChromeOS device support

The Brother Mobile Connect app lets you print and scan from mobile devices, check ink status, view the history of scanned documents, and customize frequently used functions.

The Web Connect service allows you to work with supported cloud services without using a computer, such as Microsoft SharePoint Online, OneDrive, Google Drive, Dropbox, Evernote, or Box.

Fax functions

The integrated fax supports automatic duplex faxing from the document feeder, PC-Fax, Internet fax, and forwarding of received documents.

The fax directory offers 100 memory locations for speed dials and the option to create up to six groups.

The device can also be connected to an external LDAP directory, such as Microsoft Exchange.

Office data security

The Brother MFC-J5110DW is designed with multilayer security for the device, network, and documents.

Secure Function Lock 3 function0 allows access to be managed for up to 100 users using a PIN or password.

Safety equipment includes:

• Secure boot
• Digitally signed firmware
• Internal storage encryption
• Secure printing using a release code
• Cloud Secure Print
• IP filter
• Restriction of network protocols and physical interfaces
• WPA3, IPsec, SNMPv3 and 802.
1x
• SSL/TLS and HTTPS
• Secure management of certificates and keys
• Syslog for device monitoring and auditing
• Email notifications about printer status

Support for office printing systems

The model supports PCL6 and BR-Script3 emulations, making it easy to integrate into enterprise and office printing environments.

Available in the firmware:

• 73 scalable and 12 bitmap PCL fonts
• 66 scalable BR-Script fonts
• 16 barcode fonts including Code 39, EAN-8, EAN-13, UPC, Code 128, and GS1 DataBar

For device management, BRAdmin, the integrated web server, or the Mass Deployment Tool can be used.

Technical specifications

Consumables

The stated ink cartridge yield is approximate and based on ISO/IEC 24711.

Package contents

• Brother MFC-J5110DW multifunction printer
• Black ink cartridge with a yield of approximately 700 pages
• Three color ink cartridges with a yield of approximately 450 pages each
• Power cable
• Quick setup guide
• Warranty card

A data cable for connecting to a computer is not included in the package.
