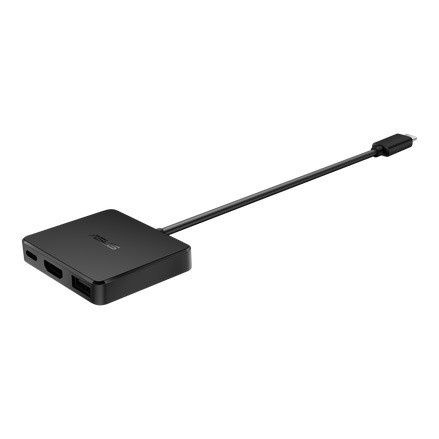

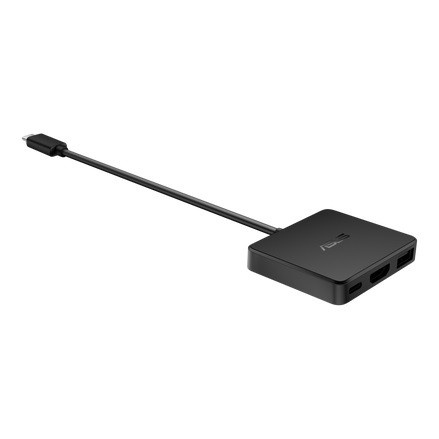

ASUS USB-C Mini Dock
Images are for illustration purposes only.
Parameters
Primary purpose:
for selected ASUS products
Universal docking station:
Yes
Minimum required interface:
USB-C with video/power
Dimensions (W x H x D mm):
59 x 48 x 11.35
Power supply output (W):
100
Weight (g):
48
DB-25 (F):
0
DisplayPort (F):
0
eSATA (F):
0
HDMI Micro D (F):
0
HDMI Mini C (F):
0
HDMI Standard A (F):
1
RJ-45 (F):
0
Thunderbolt (M):
0
USB Micro-B (F):
0
USB Micro-B (M):
0
USB Mini-A (M):
0
USB Mini-B (F):
0
USB Mini-B (M):
0
USB Type A (F):
1
USB Type A (M):
0
USB Type B (F):
0
USB Type B (M):
0
USB Type-C (F):
1
USB Type-C (M):
1
VGA / D-SUB (F):
0
Product description
ASUS USB-C Mini Dock* 4K display outputs
* Supports refresh rates up to 144 Hz for 2K video
* Up to 100W USB-C power delivery
* USB-A and USB-C support data transfer speeds up to 10 Gb/s
I/O ports
* 1x USB 3.2 Gen2 Type-C Upstream port for the computer side port (10 Gbps / DP1.4 / output: up to 85 W)
* 1x USB 3.2 Gen2 Type-A port (10 Gbps)
* 1x USB 3.2 Gen2 Type-C port (10 Gbps/ PD-in 100W/5V/1.5A)
* 1x HDMI with maximum output resolution 3840x2160 @60Hz, FHD @144Hz
Video resolution
* HDMI Single Ext. Output: 1280*720 (16:9)
* HDMI Single Ext. Output: 1280*768 (16:9)
* HDMI Single Ext. Output: 1360*768 (16:9)
* HDMI Single Ext. Output: 1600*900 (16:9)
* HDMI Single Ext. Output: 1920*1080 (16:9)
* HDMI Single Ext. Output: 2048*1152 (16:9)
* HDMI Single Ext. Output: 3840*2160 (16:9)
OS Support
* Windows® 10
* Windows® 11
Technical specifications
Cable length: 15 cm
Color: Black
Weight: 48 g
Dimensions: 59 x 48 x 11.35 mm
Material: Plastic
