ASUS PN PN64-BB5003MDE1 Mini 90MR00W2-M00030 Mini PC, i5-13500H, no RAM, Iris Xe, no OS, 3R
Images are for illustration purposes only.
Parameters
Manufacturer:
INTEL
CPU Type:
Intel Core i5
CPU Generation:
Intel 13. generation
Exact model:
i5-13500H
BasicCPU core frequency (GHz):
2,6
Number of cores:
12
Exact capacity (GB):
64GB and less
VESA standard:
Yes
DisplayPort connector:
Yes
Number of pieces:
1
HDMI connector:
Yes
Power supply output (W):
120
Memory - size (GB):
without RAM
Memory type:
DDR5
Memory dimensions:
SODIMM
Intel Optane Memory:
No
Memory - total number of slots:
2
Memory - number of free slots:
2
Memory - speed:
4800
Disk - type:
Without a disk
Optical mechanics:
No
Card reader:
No
Graphics card:
integrated
Thunderbolt 3 (compatible):
Yes
eSATA:
No
VGA output:
No
DVI output:
No
Mini/Micro HDMI output:
No
Mini DisplayPort output:
No
Serial port:
No
RJ45 connector:
Yes
Bluetooth:
Yes
Wi-Fi:
Yes
TPM 2.0:
Yes
Execution:
Mini PC
SSD type:
M.2 2280
SSD interface:
PCI-Express NVMe
Operating system:
without an operating system
Ethernet:
2.5 Gbps
Number of LAN ports:
1
Lock security:
Kensington Lock
Keyboard:
No
Mouse:
No
USB 2.0 (front):
0 pcs
USB 3.x (front):
2 pcs
USB 3.x Type-C (front):
0 pcs
USB 4 / Thunderbolt 4 (front):
1 pc
USB 2.0 (rear):
0 pcs
USB 3.x (rear):
3 pcs
USB 3.x Type-C (rear):
0 pcs
USB 4 / Thunderbolt 4 (rear):
1 pc
HDMI (quantity):
2 pcs
mini/micro HDMI (quantity):
0 pcs
DVI (quantity):
0 pcs
VGA (quantity):
0 pcs
Configurable port:
Yes
PS/2 (rear):
0 pcs
3.5 mm audio jack:
Yes
GPU model series:
Intel Iris/Intel UHD Graphics
Max.CPU core frequency (GHz):
4,7
CPU with AI support:
No
Bluetooth version:
05.II
Wi-Fi standard:
Wi-Fi 6E 802.11ax
NPU - number of TOPs:
Not supported
Product description
ASUS PN64-E1Model: ASUS PN64-E1
Design: MiniPC
Operating System: without operating system
Processor: Intel Core i5-13500H Processor, (18M Cache, P-core up to 4.70 GHz/ E-core up to 3.50 GHz)
Hard Drive: without hard drive
Storage Support:
*2x M.2 2280 PCIe Gen4x4, supports 256GB~2TB NVMe SSD
*1x 2.5" SATA 6Gb/s, supports 1TB 7200rpm 7mm HDD
Optical drive: no
Graphics card: Intel Iris Xe Graphics
Memory: no RAM
Max. size: 2 x SO-DIMM, DDR5-4800MHz memory, max 64 GB (2*32GB)
Number of slots (total / Free): 2/2
Network: 2.5G LAN, Intel I226V
Wireless Communication: Wi-Fi 6E, Bluetooth 5.2, 2*2

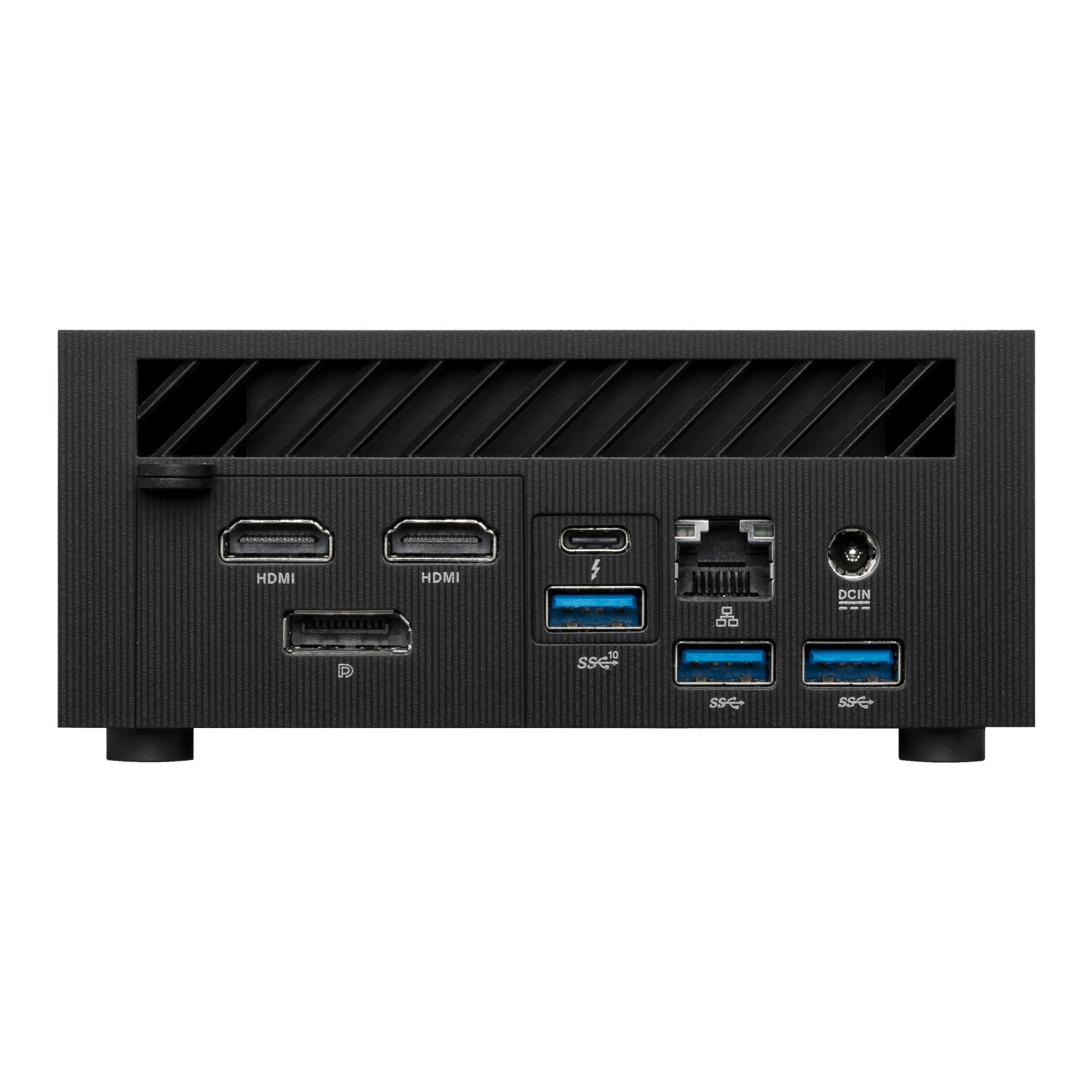

Rear connectors:
*1x Thunderbolt 4 (w/ DP output, PD power input)
*1x USB 3.2 Gen2
*2x USB 3.2 Gen1
*2x HDMI 2.0
*1x Configurable Port - DisplayPort 1.4
*1x 2.5G LAN
*1x DC-in
*1x Padlock ring

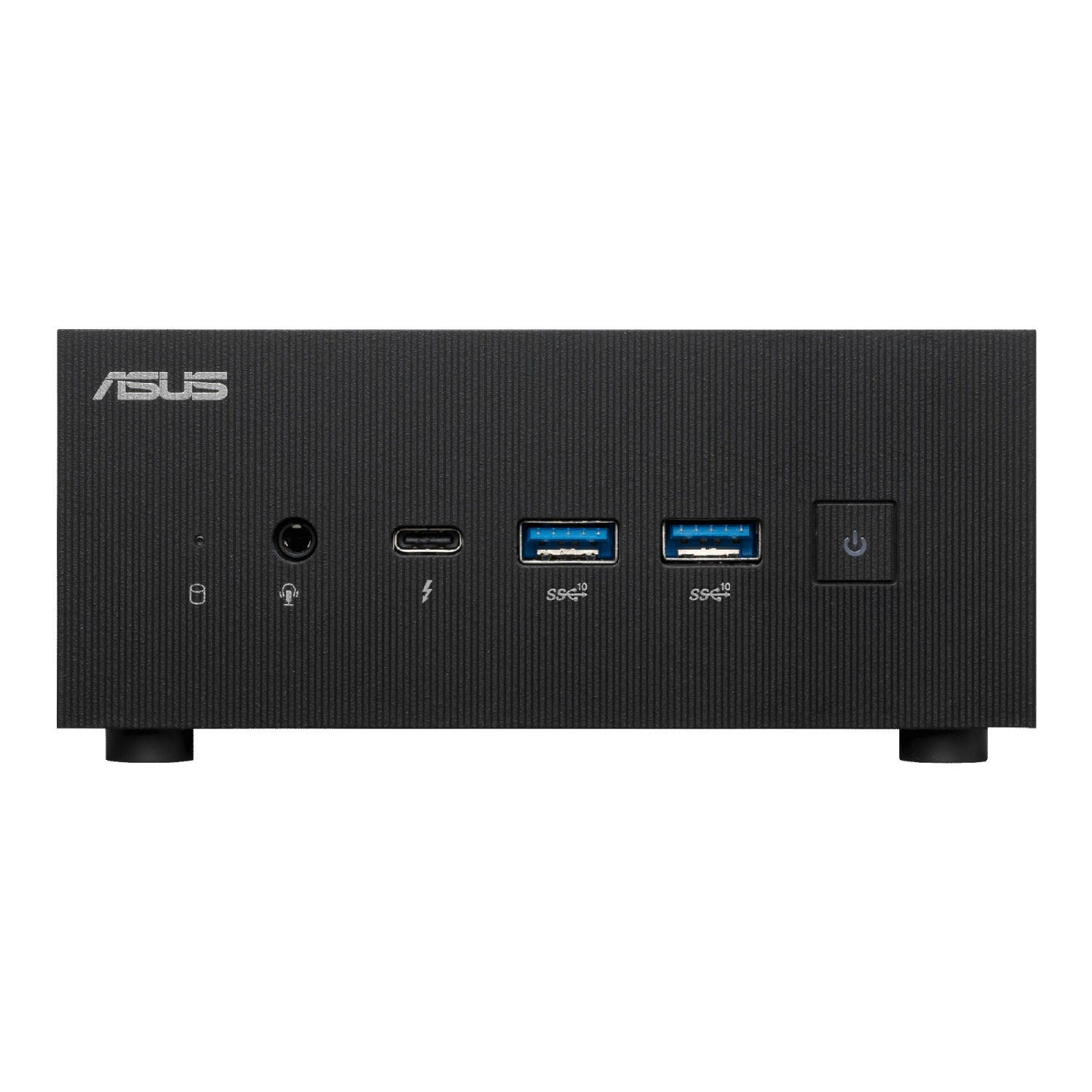

Front/side connectors:
*1x Thunderbolt 4 (w/ DP output)
*2x USB 3.2 Gen2
*1x Audio Jack (Line out/ Mic in/ Headphone out)
*1x K-Lock(Side)
Memory card reader: no
Dimensions: 120 x 130 x 58 mm
Weight: 0.75 kg
Power supply: 19Vdc, 6.32A, 120W Power Adapter
Keyboard: no
Mouse: no
Warranty: 3 years
Three-year premium ASUS Pick-up and Return warranty for both business and private individuals FREE.
For details, see here:https://www.Asus.com/cz/event/bezstarostny_servis
Manufacturer's website: https://www.Asus.com/displays-desktops/mini-pcs/pn-series/asus-expertcenter-pn64-e1/
You can find the offer of compatible extensions to the standard warranty in the related products.
The VESA mount is included in the package.
The tested compatible memories are listed on the manufacturer's website.
