ASUS PN ExpertCenter PN53-BBR777HD Mini 90MR00S2-M001F0 Mini PC, R7-7735H, no RAM, AMD int, no OS, 3R
Images are for illustration purposes only.
Parameters
Manufacturer:
AMD
CPU Type:
AMD Ryzen 7
CPU Generation:
AMD 7000 Series
Exact model:
R7-7735H
BasicCPU core frequency (GHz):
3,2
Number of cores:
8
Exact capacity (GB):
64GB and less
VESA standard:
Yes
DisplayPort connector:
Yes
Number of pieces:
1
HDMI connector:
Yes
Power supply output (W):
150
Memory - size (GB):
without RAM
Memory type:
DDR5
Memory dimensions:
SODIMM
Intel Optane Memory:
No
Memory - total number of slots:
2
Memory - speed:
4800
Disk - type:
Without a disk
Optical mechanics:
No
Card reader:
No
Graphics card:
integrated
Thunderbolt 3 (compatible):
Yes
eSATA:
No
VGA output:
No
DVI output:
No
Mini/Micro HDMI output:
No
Mini DisplayPort output:
No
Serial port:
No
RJ45 connector:
Yes
Bluetooth:
Yes
Wi-Fi:
Yes
TPM 2.0:
Yes
Execution:
Mini PC
SSD type:
M.2 2280
SSD interface:
PCI-Express NVMe
Operating system:
without an operating system
Ethernet:
2.5 Gbps
Number of LAN ports:
1
Lock security:
Kensington Lock
Keyboard:
No
Mouse:
No
USB 2.0 (front):
0 pcs
USB 3.x (front):
2 pcs
USB 3.x Type-C (front):
0 pcs
USB 4 / Thunderbolt 4 (front):
1 pc
USB 2.0 (rear):
0 pcs
USB 3.x (rear):
3 pcs
USB 3.x Type-C (rear):
0 pcs
USB 4 / Thunderbolt 4 (rear):
1 pc
HDMI (quantity):
2 pcs
mini/micro HDMI (quantity):
0 pcs
DVI (quantity):
0 pcs
VGA (quantity):
0 pcs
Configurable port:
Yes
PS/2 (rear):
0 pcs
3.5 mm audio jack:
Yes
GPU model series:
AMD Radeon 680M Graphics
Max.CPU core frequency (GHz):
4,75
Bluetooth version:
05.II
Wi-Fi standard:
Wi-Fi 6E 802.11ax
Color:
Black
Product description
ASUS PN53Model: ASUS PN53
Form Factor: MiniPC
Operating System: No operating system
Processor: AMD Ryzen 7 7735H Processor 3.2GHz (16M Cache, up to 4.75GHz)
Hard Drive: without hard drive
Storage Support:
*2x M.2 2280, up to PCIe Gen4x4, 256G~2TB SSD NVMe
*1x 2.5”7mm SATA6Gb/s 1TB HDD, 7200 rpm
Optical Drive: none
Graphics Card: AMD Radeon Graphics
Memory: no RAM
Max. size: 2 x SO-DIMM, DDR5-4800MHz memory, max 64 GB (2*32GB)
Number of slots (total / Free): 2/2
Network: 2.5G LAN, Realtek RTL8125B-CG
Wireless Communication: Wi-Fi 6E, Bluetooth 5.2, 2*2

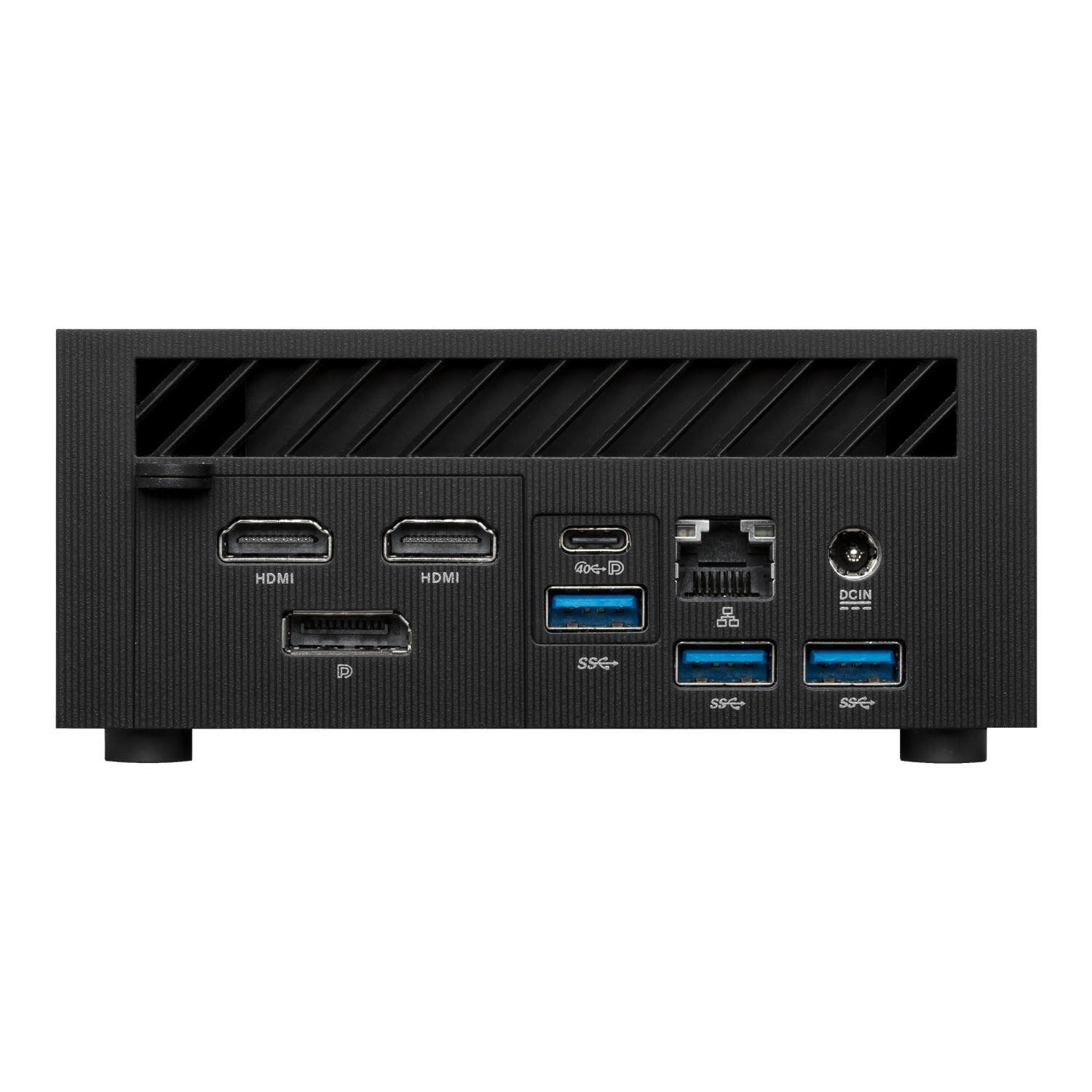

Rear connectors:
*1x USB 4 Type-C (w/ DP output, PD power input)
*3x USB 3.2 Gen1
*2x HDMI 2.1
*1x Configurable Port - Display Port 1.4
*1x 2.5G RJ45 LAN
*1x DC-in
*1x Padlock ring

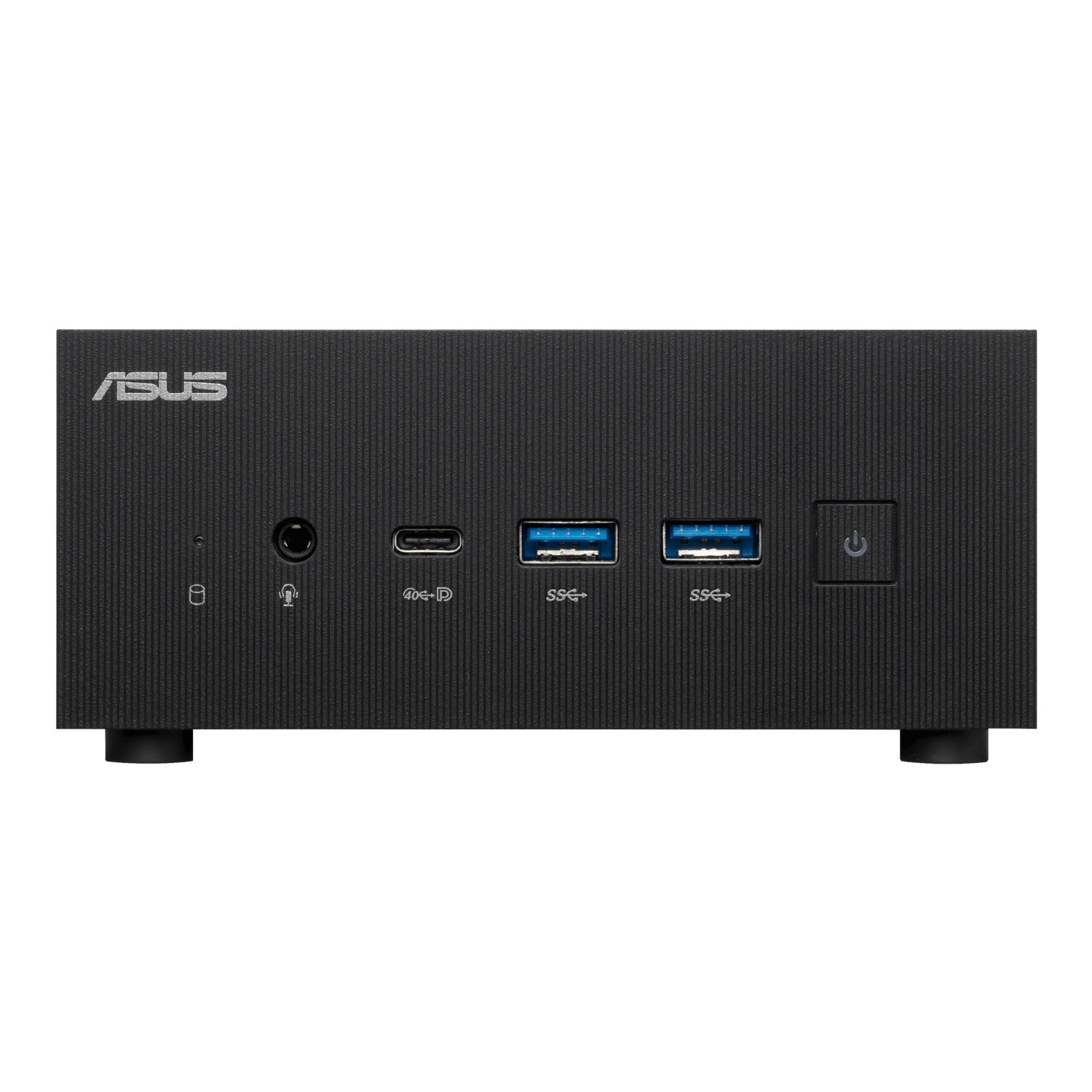

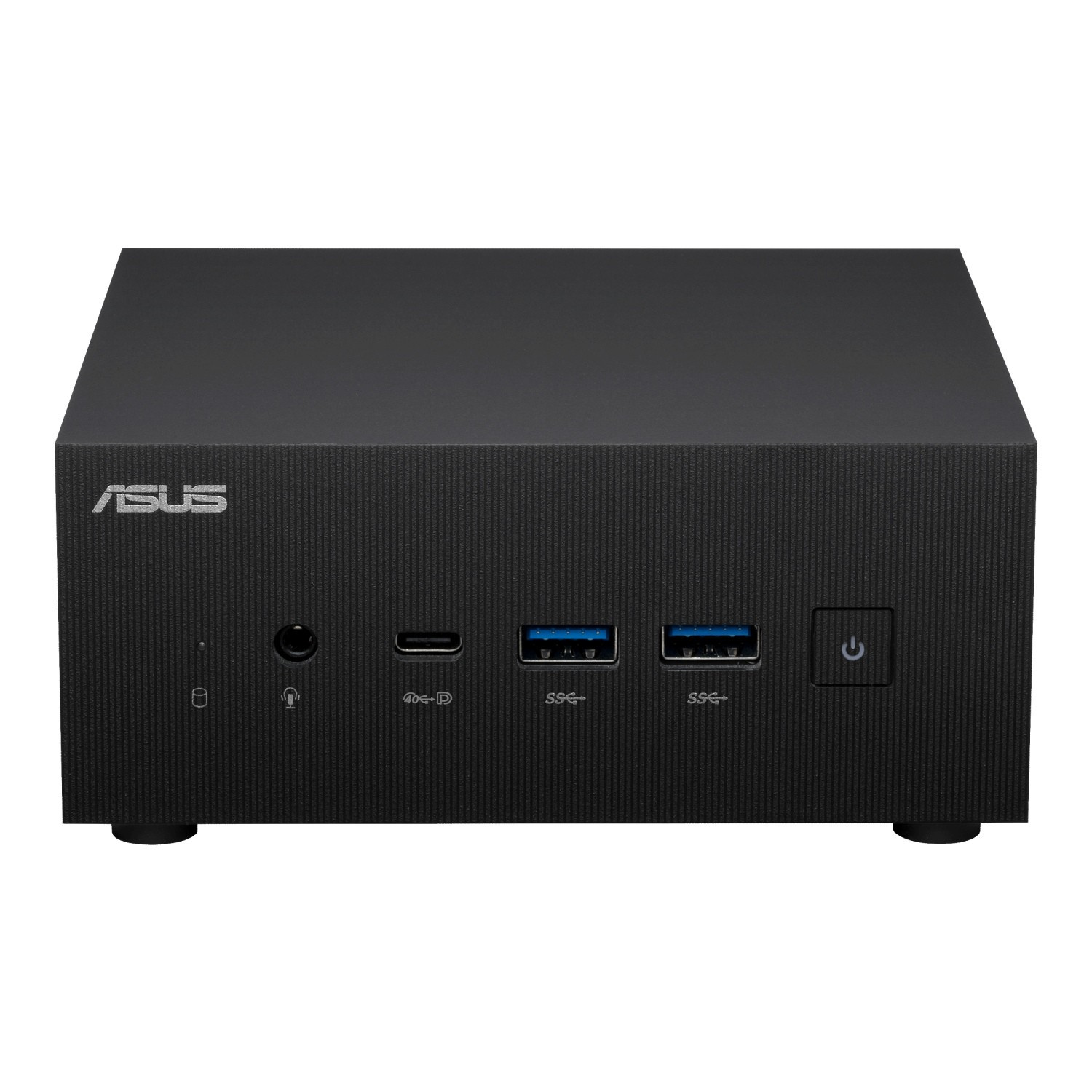

Front/side connectors:
*1x USB 4 Type-C (w/ DP output)
*2x USB 3.2 Gen1
*1x Audio Jack (Line out/ Mic in/ Headphone out)
*1x Kensington Lock
Memory Card Reader: no
Dimensions: 120 x 130 x 58 mm
Weight: 0.9 kg
Power Supply: 20Vdc, 7.5A 150W Power Adapter
Keyboard: no
Mouse: no
Warranty: 3 years
Three-year premium ASUS Pick-up and Return warranty for both business and private individuals FREE.
For details, see here:https://www.Asus.com/cz/event/bezstarostny_servis
Manufacturer's website: https://www.Asus.com/displays-desktops/mini-pcs/pn-series/asus-expertcenter-pn53/
You can find the offer of compatible extensions to the standard warranty in the related products.
The VESA mount is included in the package.
Tested compatible memory is listed on the manufacturer's website
Everything about AMD processors here: https://amd.atcomp.cz
