Product description ASUS ExpertCenter PN43-BBN100MD Mini 90MR0172-M00030 Computer Mini, N100, without RAM, UHD, without OS, 3R
| Manufacturer | INTEL |
| CPU Type | Intel N-series |
| CPU Generation | Intel N |
| Exact model | N100 |
| BasicCPU core frequency (GHz) | 0,8 |
| Number of cores | 4 |
| Exact capacity (GB) | 64GB and less |
| VESA standard | Yes |
| DisplayPort connector | Yes |
| Number of pieces | 2 |
| HDMI connector | Yes |
| Memory - size (GB) | without RAM |
| Disk - type | Without a disk |
| Optical mechanics | No |
| Card reader | No |
| Graphics card | integrated |
| Thunderbolt 3 (compatible) | No |
| eSATA | No |
| VGA output | No |
| DVI output | No |
| Mini/Micro HDMI output | No |
| Mini DisplayPort output | No |
| Serial port | No |
| RJ45 connector | Yes |
| Bluetooth | Yes |
| Wi-Fi | Yes |
| Execution | Mini PC |
| SSD type | M.2 2280 |
| SSD interface | PCI-Express NVMe |
| Operating system | without an operating system |
| Ethernet | 2.5 Gbps |
| Number of LAN ports | 1 |
| USB 2.0 (front) | 0 pcs |
| USB 3.x (front) | 3 pcs |
| USB 3.x Type-C (front) | 0 pcs |
| USB 4 / Thunderbolt 4 (front) | 0 pcs |
| USB 2.0 (rear) | 3 pcs |
| USB 3.x (rear) | 0 pcs |
| USB 3.x Type-C (rear) | 0 pcs |
| USB 4 / Thunderbolt 4 (rear) | 0 pcs |
| HDMI (quantity) | 1 pc |
| mini/micro HDMI (quantity) | 0 pcs |
| DVI (quantity) | 0 pcs |
| VGA (quantity) | 0 pcs |
| Configurable port | Yes |
| PS/2 (rear) | 0 pcs |
| 3.5 mm audio jack | Yes |
| GPU model series | Intel Iris/Intel UHD Graphics |
| Max.CPU core frequency (GHz) | 3,4 |
| CPU with AI support | No |
| Bluetooth version | 05.II |
| Wi-Fi standard | Wi-Fi 6E 802.11ax |
| Color | Black |
| NPU - number of TOPs | Not supported |

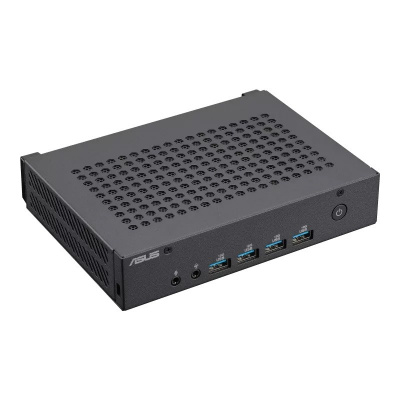

ASUS ExpertCenter PN43
* support for up to 3 displays simultaneously or two 4K displays with integrated graphics
* secure power connection
* volume 0.67 l
Operating System: no
Processor: Intel N-series N100 (4 cores, 4 threads, 0.8/3.4 GHz, 6 MB cache)
Memory: no
Hard Drive: no
Slot for internal drive: 1x M.2 2280 PCIe Gen3x4 (support 128GB-2TB NVMe™ SSD)
Optical Drive: no
Card Reader: no
Graphics Card: Integrated Intel UHD Graphics 24EU
Network: 10/100/1000/2500Mb/s, 2.5G LAN
Wireless Communication: WLAN + Bluetooth (Intel® Wi-Fi 6 (Gig+) 2x2 + Bluetooth® 5.2)
Power Supply: external power supply 19V DC, 3.42A, 65W
Front/Side Ports:
* 4x USB 3.2 Gen 1 Type-A
* 1x microphone input
* 1x audio jack (line-out/microphone input/headphone output)
Rear ports:
* 3x USB 2.0
* 2x DisplayPort 1.4
* 1x HDMI 2.1 (up to 4K@60Hz)
* 1x 2.5G RJ45 LAN
* 1x DC-in
* 1x ring for padlock
Color: black
Dimensions: 166.2x119.7x33.9mm
Weight: 700g
Warranty: 3 years
Vesa mount is included in the package.
The tested compatible memories are listed on the manufacturer's website.
* support for up to 3 displays simultaneously or two 4K displays with integrated graphics
* secure power connection
* volume 0.67 l
Operating System: no
Processor: Intel N-series N100 (4 cores, 4 threads, 0.8/3.4 GHz, 6 MB cache)
Memory: no
Hard Drive: no
Slot for internal drive: 1x M.2 2280 PCIe Gen3x4 (support 128GB-2TB NVMe™ SSD)
Optical Drive: no
Card Reader: no
Graphics Card: Integrated Intel UHD Graphics 24EU
Network: 10/100/1000/2500Mb/s, 2.5G LAN
Wireless Communication: WLAN + Bluetooth (Intel® Wi-Fi 6 (Gig+) 2x2 + Bluetooth® 5.2)
Power Supply: external power supply 19V DC, 3.42A, 65W
Front/Side Ports:
* 4x USB 3.2 Gen 1 Type-A
* 1x microphone input
* 1x audio jack (line-out/microphone input/headphone output)
Rear ports:
* 3x USB 2.0
* 2x DisplayPort 1.4
* 1x HDMI 2.1 (up to 4K@60Hz)
* 1x 2.5G RJ45 LAN
* 1x DC-in
* 1x ring for padlock
Color: black
Dimensions: 166.2x119.7x33.9mm
Weight: 700g
Warranty: 3 years
Vesa mount is included in the package.
The tested compatible memories are listed on the manufacturer's website.
