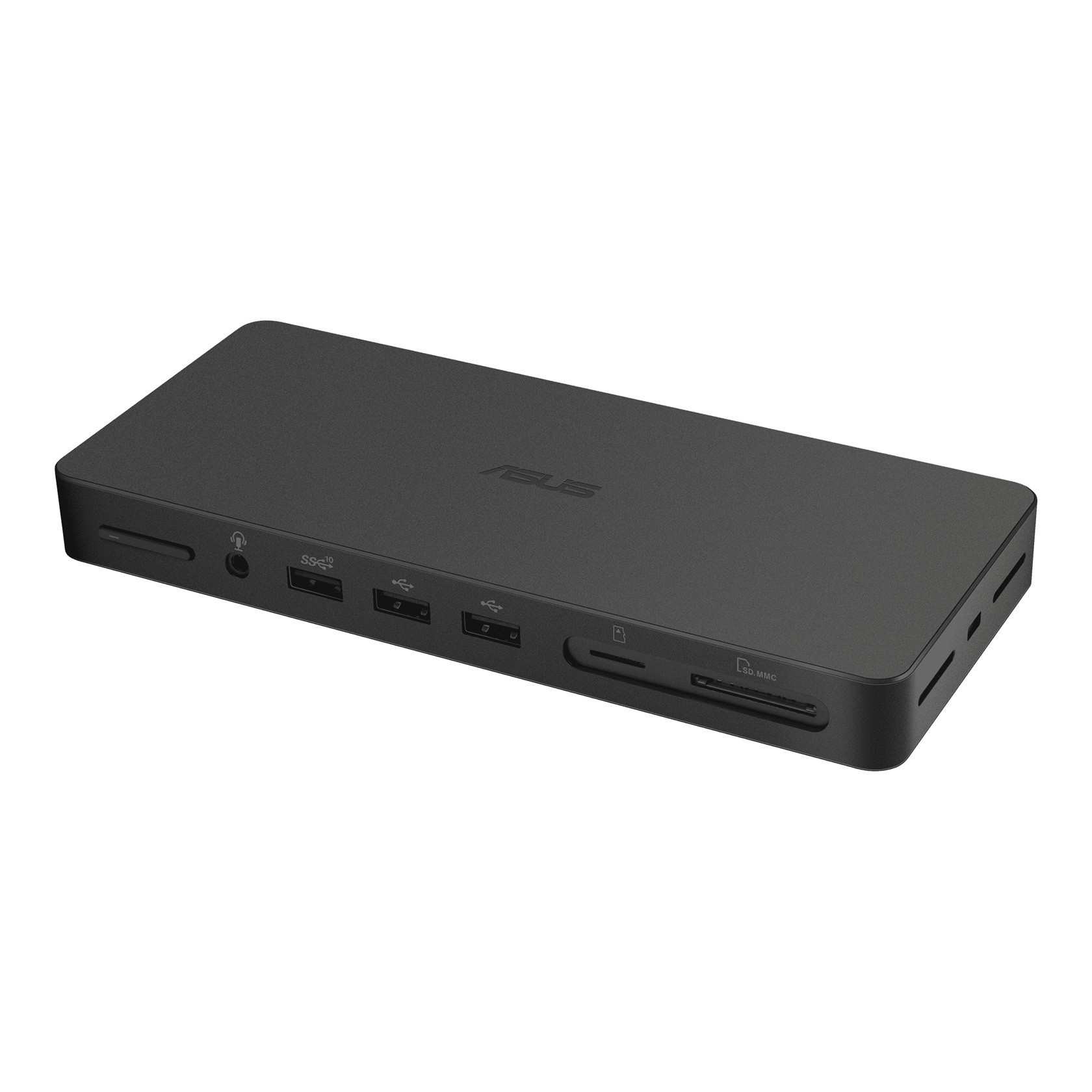

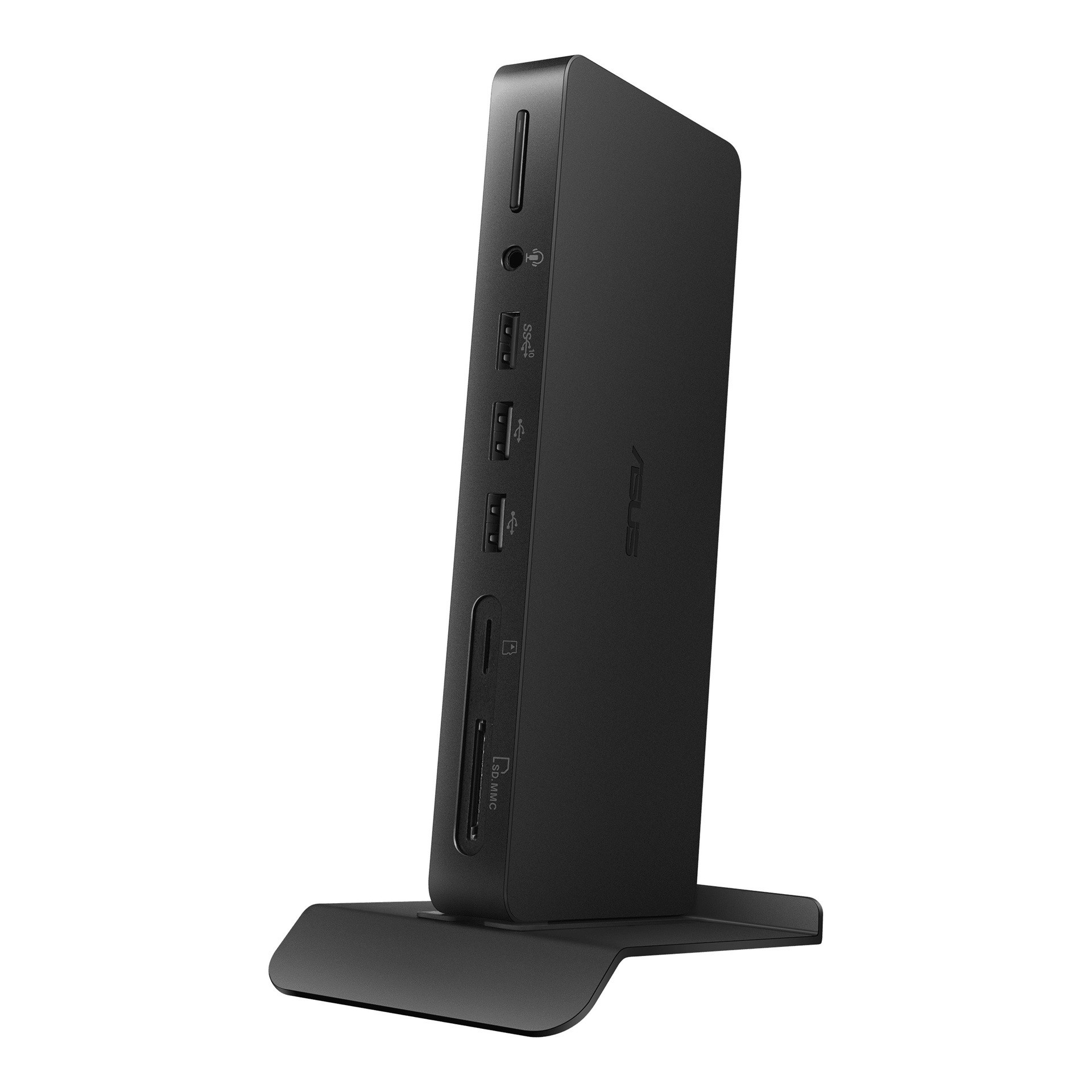

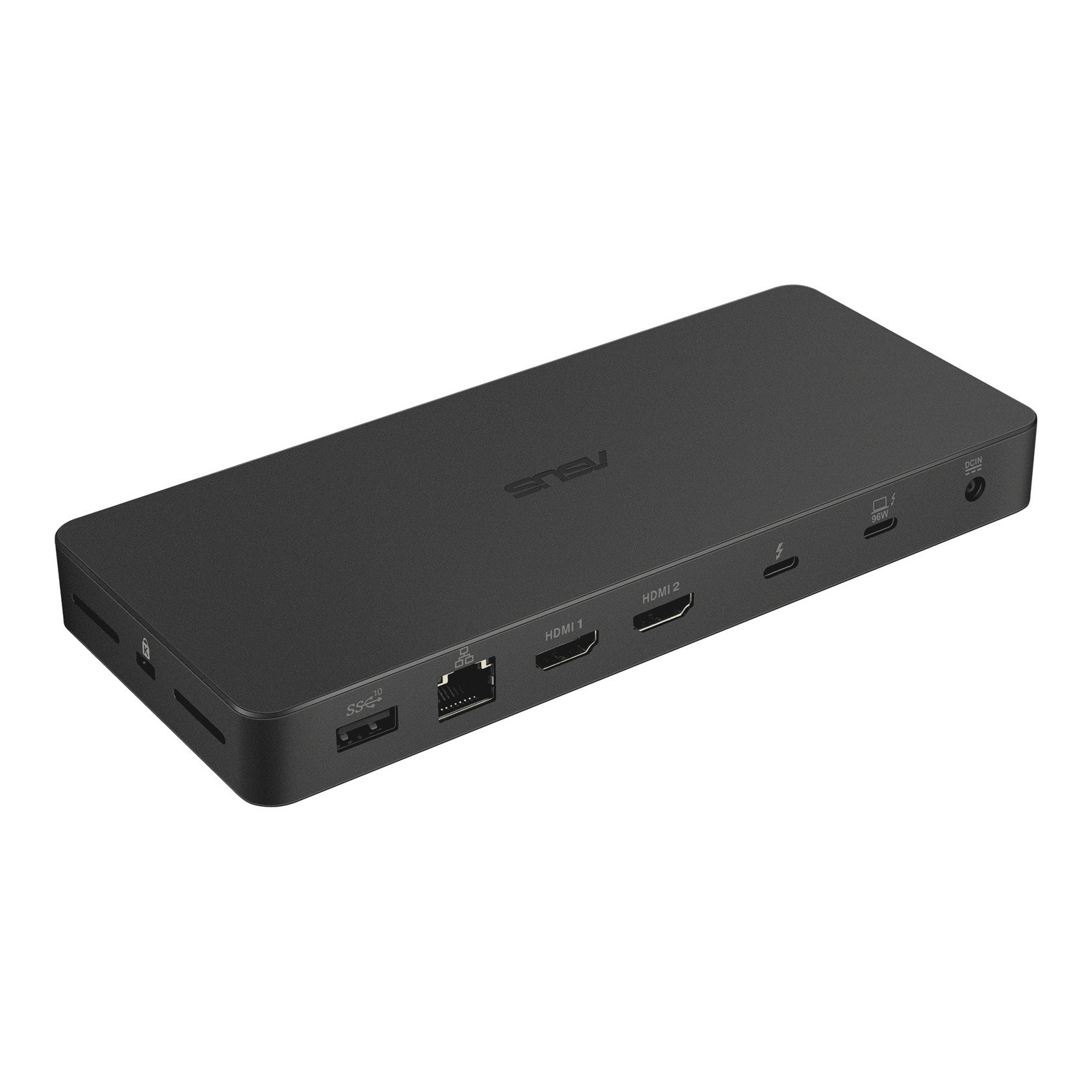

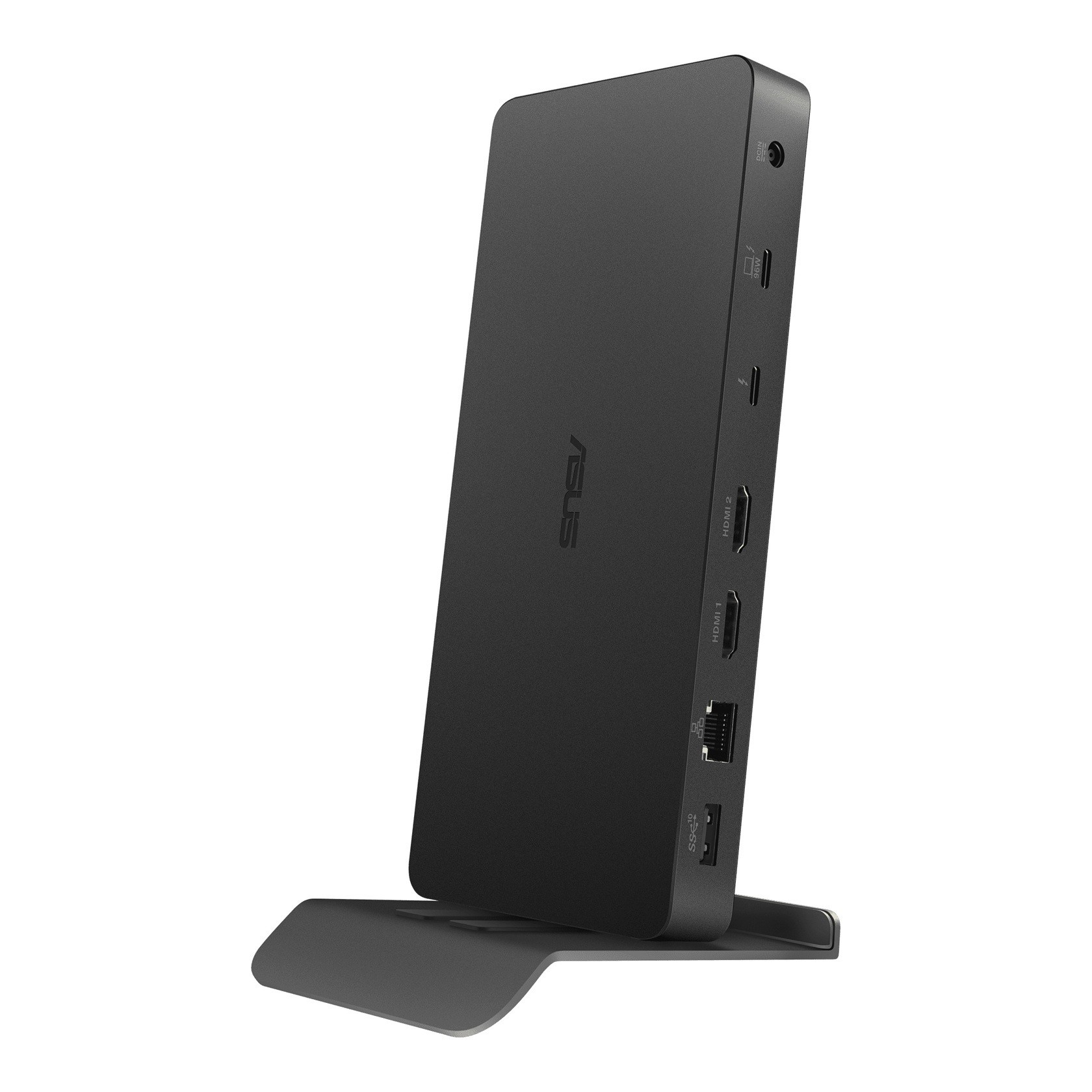

ASUS DC500 Triple 4K Thunderbolt 4 Dock

Product description

The ASUS Triple 4K Thunderbolt™ 4 Dock is a multifunctional docking station designed for creators and at the same time the smallest 12-in-1 Thunderbolt™ 4 dock. A single cable connection is enough to connect to a laptop, enabling the connection of multiple 4K displays, peripheral devices, and memory card readers—creating a complete and highly efficient creative workstation.

Thanks to the Thunderbolt™ 4 interface and two HDMI 2.Thanks to 1 ports, creators have the ability to multitask and work with a high level of detail—whether on a single 8K monitor or three 4K displays simultaneously.

The ASUS Triple 4K Thunderbolt™ 4 Dock features a large number of I/O ports that allow various devices to be connected simultaneously, including cameras, drones, and other equipment. There are also two card readers – for SD and microSD – which give users the flexibility to easily and quickly back up data from various devices.

Fast data transfers are enabled by 2.5G Ethernet and connectivity via Thunderbolt™ 4 – even for large files. For example, transferring a 20GB image file takes only 12 seconds. The UFP Thunderbolt™ 4 port provides up to 96 W of pass-through charging. The ASUS Triple 4K Thunderbolt™ 4 Dock docking station also simplifies IT asset management in companies thanks to features such as MAC address pass-through, remote port disabling, and Wake-on-LAN.



Ports
*1x DC jack (4.5 phi)
*1x Power button with LED indicator
*1x Kensington lock
*1x Combined audio jack
*1x RJ45 2.5 GbE
*2x USB-A 2.0
*2x USB-A 3.2 Gen2
*1x Micro SD Reader (UHS II)
*1x SD Card Reader 4.0 (UHS II)
*2x HDMI™ 2.1
*1x Thunderbolt™ 4

Video resolution:

*HDMI output: 3840 x 2160 @ 60 Hz
*HDMI output: 7680 x 4320 @ 60 Hz
*Thunderbolt 4 output: 3840 x 2160 @ 60 Hz
*Thunderbolt 4 output: 7680 x 4320 @ 30 Hz

Other supported resolutions:
*2560×2048 (5:4), 2560×1600 (16:10), 2560×1440 (16:9)
*2048×1536 (4:3), 3840×2160 (16:9), 2048×1152 (16:9)
*1920×1080 (16:9), 1680×1050 (16:10), 1600×900 (16:9)
*1360×768 (16:9), 1280×768 (16:9), 1280×720 (16:9)

Supported operating systems:

*macOS 12.3 or later
*Windows 10 or later

Power adapter: 150 W (DC 20.0V / 7.5A)
Security: Kensington lock
Cable length: 80 cm
Weight: 335 g
Dimensions: 185 × 80 × 21 mm
Material: Plastic, metal
