back to listASUS 90WS0091-M00040 ExpertCenter Pro ET500A B8
Images are for illustration purposes only.
Parameters
Exact capacity (GB):
without a disk
DisplayPort connector:
Yes
Power supply output (W):
750
Laptop model:
ExpertCenter Pro ET500A B8
Memory - size (GB):
without RAM
Memory - total number of slots:
4
Memory - number of free slots:
4
Memory - speed:
Without RAM
Graphics card:
Without GPU
Mini DisplayPort output:
No
Model range:
ASUS ExpertCenter
Operating system:
without an operating system
GPU model series:
Without GPU
Product description

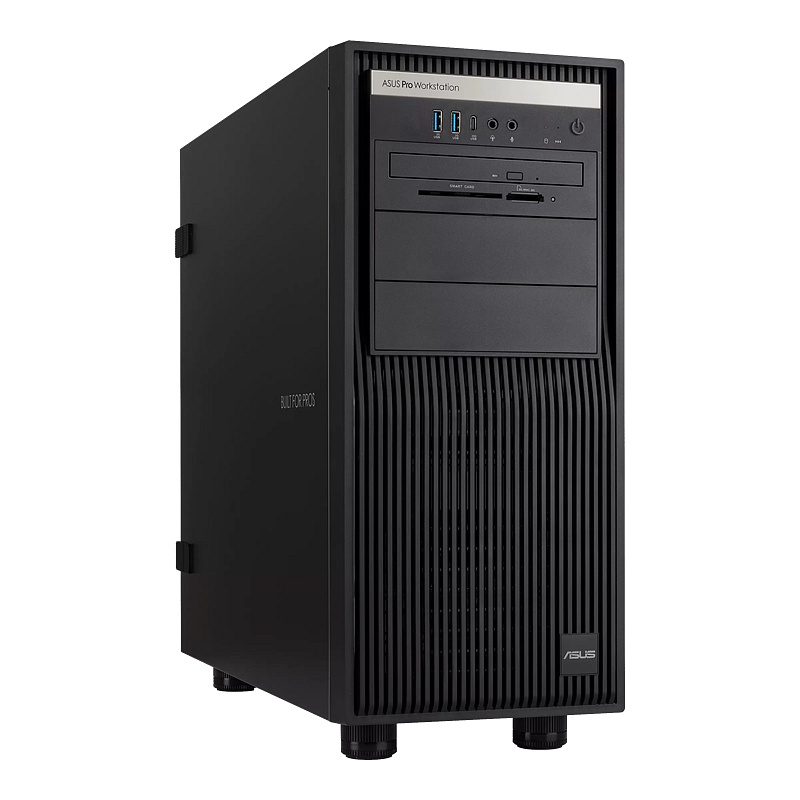

ASUS ExpertCenter Pro ET500A B8
Operating system:
Windows 11 Pro - ASUS recommends Windows 11 Pro for business. (for Ryzen Series CPU)
Windows 11 Home - ASUS recommends Windows 11 Pro for business. (for Ryzen Series CPU)
Windows Server 2025 (non-Preinstall) (for EPYC 4005 series CPU)
Processor / system bus:
1 x Socket AM5 (AMD Ryzen™ 9000 & 8000 & 7000 Series and AMD EPYC™ 4005 Series Desktop Processors)
Chipset: AMD B850 Chipset
Memory:
Total number of slots: 4 (dual-channel)
Capacity: Maximum up to 128 GB UDIMM
Memory type: Dual-channel DDR5 5600 ECC / non-ECC UDIMM
Memory size: 32 GB, 16 GB, 8 GB UDIMM
Expansion slots:
Total: 2
AMD Ryzen™ 9000 / 7000 Series and AMD EPYC™ 4005 Series desktop processors: Slot 1 PCIe 5.0 x16 (x16 mode support)
AMD Ryzen™ 8000 Series desktop processors: Slot 1 PCIe 4.0 x16 (supports x8 / x4 modes)
AMD B850 Chipset: Slot 2 PCIe 4.0 x16 (x4 mode support)
Storage:
Supports a total of 2× M.2 slots and 4× SATA 6Gb/s ports
Drive bays:
4 x internal 3.5"/2.5" Drive bay
Auxiliary storage FDD/CD/DVD:
8x DVD+/-RW 9.5mm Optical Disk Drive (Optional)
4 in 2 Smart Card Reader (Optional)
Networking: 2 x Intel 2.5Gb Ethernet
Graphics cards:
Supports up to 1 dual-slot NVIDIA® graphics card, including
NVIDIA® RTX PRO 4000 Blackwell, 24 GB GDDR7
NVIDIA® RTX PRO 2000 Blackwell, 16 GB GDDR7
NVIDIA® RTX 2000 ADA, 16 GB GDDR6
NVIDIA® A1000, 8 GB GDDR6
NVIDIA® A400, 4 GB GDDR6
ASUS TURBO Radeon™ AI PRO R9700
Front I/O ports:
1x USB 20Gbps Type-C® port
2x USB 5Gbps ports
1x headphone port
1x microphone port
Rear I/O ports:
2 x USB 10Gbps ports (2 x Type-A)
1 x USB 10Gbps port (1 x Type-C)
1 x USB 10Gbps port (USB Type-C®) supports DisplayPort video output
3 x USB 2.0 ports (3 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x VGA port
2 x Intel 2.5Gb Ethernet port
1 x Serial COM port
2 x Audio jacks
1 x BIOS FlashBack™ button
Switch/LED:
Front:
1 x Power Switch/LED
1 x Reset Switch
1 x HDD Access LED
Rear:
1x BIOS FlashBackTM Button/LED
Management Solution:
ASUS Control Center Express support
Regulatory Compliance:
BSMI, CE, FCC, EPEAT, KCC, CCC
PSU: 750W Gold ATX Power Supply (100-240Vac, 9-4.5A, 50/60Hz)
Dimensions: 423mm x 190mm x 435mm
Link to the official website:
https://www.Asus.com/displays-desktops/workstations/essential/expertcenter-pro-et500a-b8/
