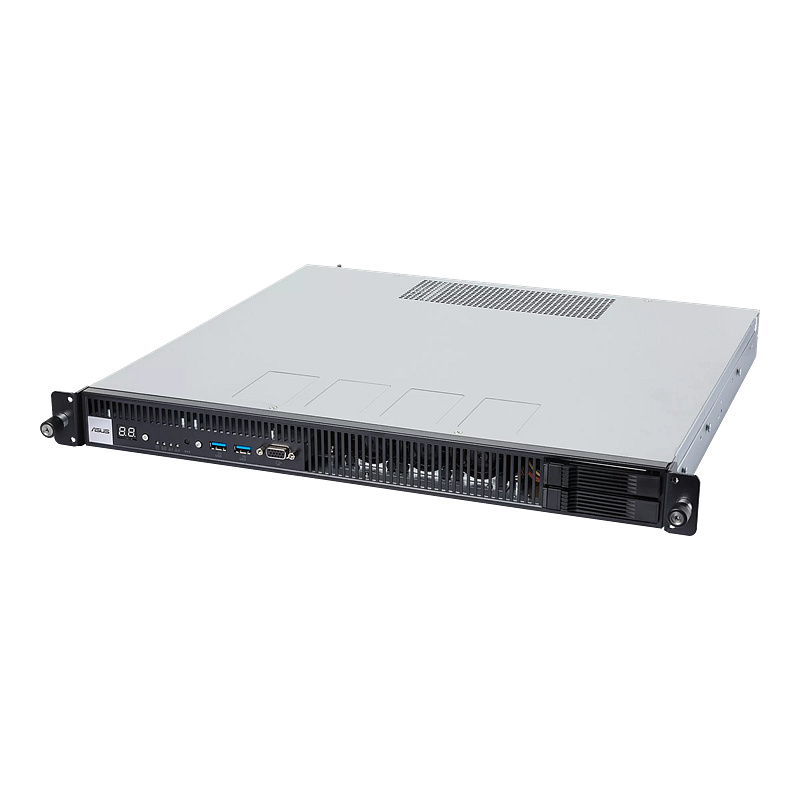

ASUS 90WS0061-M00010 ExpertCenter Pro ER100A B6
Images are for illustration purposes only.
Parameters
Exact capacity (GB):
without a disk
Laptop model:
ExpertCenter Pro ER100A B6
Memory - size (GB):
without RAM
RAM capacity:
Without RAM
Memory type:
DDR5
Memory dimensions:
UDIMM
Memory - total number of slots:
4
Memory - number of free slots:
4
Memory - speed:
Without RAM
Card reader:
No
Graphics card:
Without GPU
VGA output:
Yes
Serial port:
Yes
Model range:
ASUS ExpertCenter
Execution:
Small Form Factor
Operating system:
without an operating system
Warranty:
3
USB 3.x (front):
2
USB 2.0 (rear):
2
USB 3.x (rear):
1
USB 3.x Type-C (rear):
1
VGA (quantity):
1
GPU model series:
Without GPU
Color:
Silver
Product description
ASUS ExpertCenter Pro ER100A B6AMD EPYC™ 4000 series 1U rack workstation that supports up to four DIMM memory modules and one PCIe® 5 slot.0 x16, one M.2 slots, two hot-swap 2.5" SATA drive bays, two internal 2.5" SATA / NVMe U.2 drawers, two 2.5Gb LAN ports, integrated BMC, and support for ASUS Control Center Express.
Operating system:
AMD EPYC™ 4005 Series:
Windows Server 2025 / 2022 or Ubuntu 24.04
AMD EPYC™ 4004 Series:
Windows Server 2022 or Ubuntu 22.04
AMD Ryzen™ 9000 / 7000 Series:
Windows 11 Pro or Ubuntu 24.04
Processor / system bus
AMD Socket AM5
AMD EPYC™ 4005 Series processors
AMD EPYC™ 4004 Series processors
AMD Ryzen™ 9000 Series processors
AMD Ryzen™ 7000 Series processors
Chipset: AMD B650 Chipset
Memory:
Total number of slots: 4 (dual-channel)
Memory type: DDR5 5600 MHz, ECC / non-ECC UDIMM
Memory size: 48 GB, 32 GB, 16 GB, 8 GB
Expansion slots:
Total: 1
Location-1: PCIe x16 slots (Gen 5.0 x16/x8 link, FH HL)
Storage controller:
AMD processors
M.2 slots (Key M), type 2242 / 2260 / 2280 (PCIe 5 mode support.0 x4)
Drive bays:
2 x 2.5'' SATA drive hot-swap bays
2 x internal 2.5'' SATA or U.2 NVMe drive tray
Networking:
1 x Realtek 1Gb Ethernet (Dedicated management LAN for AST2600)
2 x Intel® 2.5Gb Ethernet
Graphics card:
Graphics/output support:
Support for up to 1 low-profile NVIDIA® graphics card, including:
NVIDIA® RTX™ A1000
NVIDIA® RTX™ A400
2× VGA outputs from the Aspeed AST2600 chip
1× USB Type-C® video output (from the CPU's integrated graphics)
Front I/O ports:
2 x USB 5Gbs ports
1 x VGA port
Rear I/O ports:
1 x USB 10Gbps port (1 x USB Type-C® with ALT mode)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
2 x Intel 2.5Gb Ethernet port
1 x Realtek 1Gb Ethernet port
1 x VGA port
1 x Serial COM port
Switch/LED:
Front:
1 x Power Button
1 x Locate Button
1 x Reset Button
1 x Storage activity LED
1 x System Message LED
2 x LAN activity LEDs
1 x Q-code
Rear:
1 x Locate Button
1 x Message LED
1 x BMC LED
Dimensions and weight: 438.5mm x 43.2mm x 409mm, 9.625kg
PSU: 500W Gold ATX Power Supply (100-240Vac, 8-4A, 60-50Hz)
Link to the official website:
https://www.Asus.com/displays-desktops/workstations/rack/expertcenter-pro-er100a-b6/
