ASUS 90WS0052-M000S0 ExpertCenter E500 G9

Product description

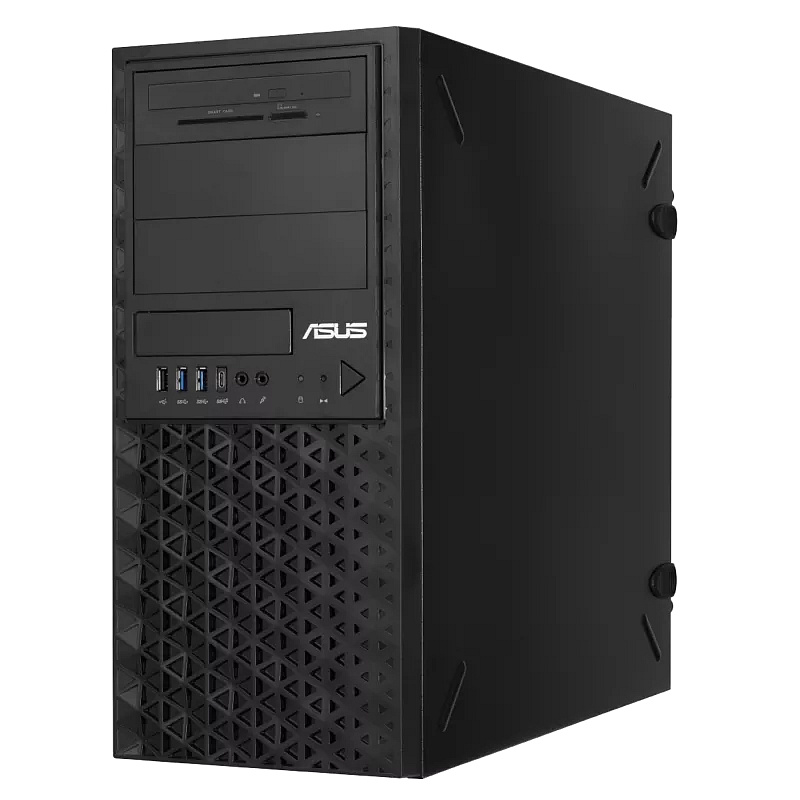

ASUS ExpertCenter E500 G9
Basic (Essential) workstation with 12th Gen Intel® Core™ i5/i7/i9 processors., 13. and 14. generation, support for up to 128 GB of ECC memory, a pair of 2.5GbE LAN ports, three M.2 slots and support for up to three displays. Supports one dual-slot graphics card, USB 3 interface.2 Gen2x2 and ASUS Control Center Express management software.

Operating system:
Windows 11 Pro - ASUS recommends Windows 11 Pro for business.
Windows 11 Home - ASUS recommends Windows 11 Pro for business.

Processor / system bus:
1 x Socket LGA1700
Intel® 13th & 14th generation Intel® Core™ i9/i7/i5 processors
Intel® 12th generation Intel® Core™ i9/i7/i5/i3 processors

Chipset: Intel® W680 Chipset

Memory:
Total number of slots: 4 (dual-channel configuration)
Maximum capacity: Up to 128 GB UDIMM
Memory type: Dual-channel DDR5 4800/5600 MHz, ECC / non-ECC UDIMM
Memory module sizes: 32 GB, 16 GB, 8 GB UDIMM

Expansion slots:
Total: 5
Location-1: PCIe x16 slots (Gen5 x16/x8 link, FH, FL)
Location-2: PCIe x1 slots (Gen3 x1 link, FH, FL)
Location-3: PCIe x16 slots (Gen5 x0/x8 link, FH, FL)
Location-5: PCIe x16 slots (Gen4 x4 link, FH, FL)
Location-6: PCIe x16 slots (Gen3 x4 link, FH, FL)

Storage:
Storage controller:
1× M.2_1 socket3, 2280 form factor (PCIe Gen4 ×4 link, from CPU)
1× M.2_2 socket3, 2280 form factor (PCIe Gen3 ×4 link, from PCH)
1× M.2_3 socket3, 22110 format (PCIe Gen4 ×4 link, from PCH)
Intel® W680 chipset
8× SATA3 6 Gb/s ports

Intel® Rapid Storage Technology (RST) (Windows only)

Drive bays:
3 x internal 3.5" Drive
1 x internal 2.5"5" Drive

Auxiliary FDD/CD/DVD bays: 2 x 5.25" media bays

Networking: 2 x Intel® I225-LM 2.5GbE LAN

Graphics cards:
Supports up to 1 dual-slot NVIDIA® graphics card, including for example:
NVIDIA® RTX 4000 ADA, 20 GB GDDR6
NVIDIA® RTX A4000, 16 GB GDDR6
NVIDIA® RTX 2000 ADA, 16 GB GDDR6
NVIDIA® RTX A2000, 12 GB GDDR6
NVIDIA® A1000, 8 GB GDDR6
NVIDIA® T1000, 4 GB GDDR6
NVIDIA® A400, 4 GB GDDR6
NVIDIA® T400, 4 GB GDDR6

Front I/O ports:
1 x USB 3.2 Gen2x2 port
2 x USB 3.2 Gen1 ports
1 x USB 2.0 port
1 x Headphone port
1 x Microphone port

Rear I/O ports:
2 x USB 3.2 Gen2 ports (1 port at Type A, 1 port at Type C)
4 x USB 3.2 Gen1 ports
1 x HDMI
1 x DisplayPort
1 x DVI-D
1 x VGA
2 x LAN ports (RJ45)
1 x 7.1-channel Audio I/O ports (5+1 Audio jacks)

Switch/LED:
Front:
1 x Power Switch/LED
1 x Reset Switch
1 x HDD Access LED

Management Solution: ASUS Control Center Express support, Intel® vPro support

Regulatory Compliance: BSMI, CE, FCC

PSU: 750W Gold ATX Power Supply (100-240Vac, 9-4.5A, 50/60Hz)

Dimensions: 463mm x 190mm x 435mm
Weight: 9.9 KG

Link to the official website:
https://www.Asus.com/displays-desktops/workstations/essential/expertcenter-e500-g9-ws/
