ASUS 90WS0041-M00040 ExpertCenter Pro ET500I W8

Product description

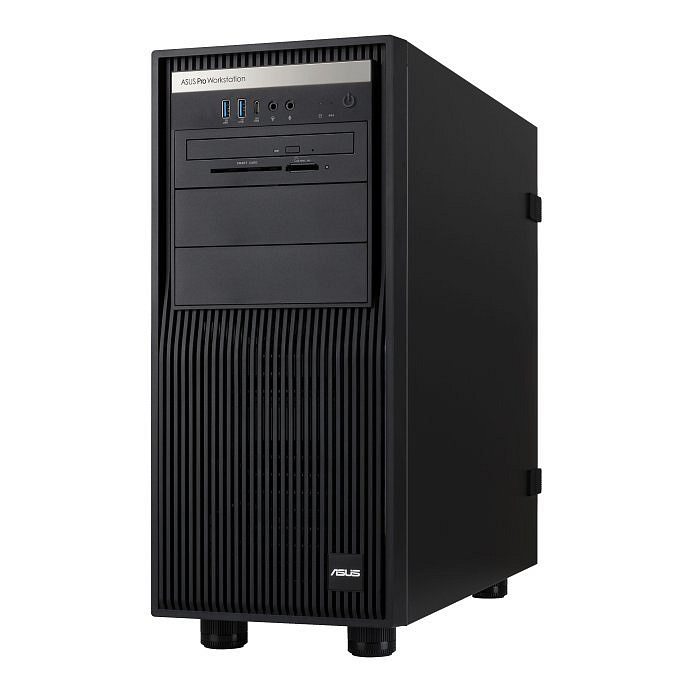

ASUS ExpertCenter Pro ET500I W8
An entry-level workstation powered by Intel® Core™ Ultra processors, with DDR5 ECC UDIMM memory, dual 2.5GbE LAN ports, three M.2 slots and support for up to one dual-slot NVIDIA RTX™ graphics card. Supports up to three M.2 slots, two SlimSAS ports, four SATA 5 Gb/s ports, Thunderbolt™ 4 interface, USB Type-C with 20 Gb/s speed, and ASUS Control Center Express management software.

Operating system:
Windows 11 Pro - ASUS recommends Windows 11 Pro for business.
Windows 11 Home - ASUS recommends Windows 11 Pro for business.

Processor / system bus: 1 x Socket LGA1851 (Intel® Core™ Ultra Processors (Series 2))

Chipset: Intel W880 Chipset

Memory:
Total number of slots: 4 (dual-channel configuration)
Maximum capacity: up to 256 GB UDIMM
Memory type: dual-channel DDR5 5600 MHz ECC / non-ECC UDIMM
Memory module sizes: 64 GB, 32 GB, 16 GB, 8 GB UDIMM

Expansion slots:
Total: 3
Location-1: PCIe x16 slots (Gen 5.0 x16/x8 link, FH, FL)
Location-2: PCIe x16 slots (Gen 5.0 x0/x8 link, FH, FL)
Location-3: PCIe x16 slots (Gen 4.0 x4 link)

Storage:
Storage controller:

Intel® Core™ Ultra processors (Series 2)
M.2_1 slot (Key M), 2242/2260/2280 form factor (PCIe 5 support.0 ×4 mode)
M.2_2 slot (Key M), 2242/2260/2280 form factor (PCIe 4 support0 ×4 mode)

Intel W880 chipset
M.2_3 slot (Key M), 2242/2260/2280 form factor (PCIe 4 support).0 ×4 mode)

2× SlimSAS ports (1× in PCIe/SATA mode, 1× in PCIe mode)
4× SATA 6 Gb/s ports


Drive bays:
4 x internal 3.5"/2.5" Drive

Auxiliary FDD/CD/DVD storage:
8x DVD+/-RW 9.5mm Optical Disk Drive (Optional)
4 in 2 Smart Card Reader (Optional)

Networking: 2 x Intel 2.5Gb Ethernet

Graphics cards:
Supports up to 1 dual-slot NVIDIA® graphics card, including for example:
NVIDIA® RTX PRO™ 4000 Blackwell, 24 GB GDDR7
NVIDIA® RTX 4000 ADA, 20 GB GDDR6
NVIDIA® RTX PRO™ 2000 Blackwell, 16 GB GDDR7
NVIDIA® RTX 2000 ADA, 16 GB GDDR6
NVIDIA® A1000, 8 GB GDDR6
NVIDIA® A400, 4 GB GDDR6

Front I/O ports:
1x USB 20Gbps Type-C® port
2x USB 5Gbps ports
1x Headphone port
1x Microphone port

Rear I/O ports:
1 x Thunderbolt™ 4 port (1 x USB Type-C®, 5V/3A & 8K@60Hz or 4K@120Hz) from CPU iTBT
1 x USB 20Gbps port (1 x Type-C®, 5V/3A) from CPU iTBT
6 x USB 10Gbps ports (6 x Type-A)
1 x HDMI® port
2 x Intel 2.5Gb Ethernet port
1 x Serial COM port
2 x Audio jacks with SPDIF OUT
1 x BIOS FlashBack™ button

Switch/LED:
Front:
1 x Power Switch/LED
1 x Reset Switch
1 x HDD Access LED
Rear:
1x BIOS FlashBackTM Button
Internal:
1 x FlexKey button
1 x Start button

Management Solution:
ASUS Control Center Express support
Intel® vPro support

Compliance: BSMI, CE, FCC, EPEAT, KCC, CCC

PSU: 750W Gold ATX Power Supply (100-240Vac, 9-4.5A, 50/60Hz)

Dimensions: 423mm x 190mm x 435mm

Link to the official website:
https://www.Asus.com/displays-desktops/workstations/essential/expertcenter-pro-et500i-w8/
