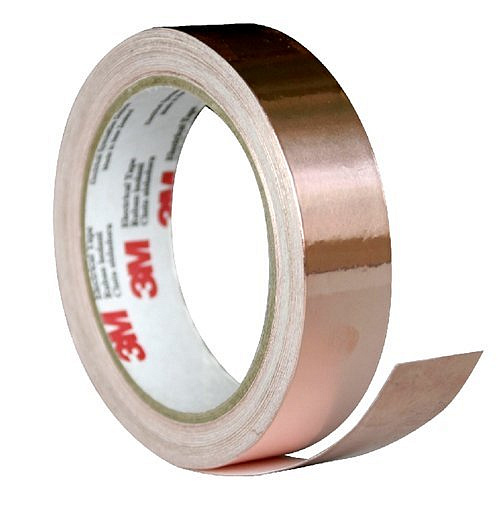

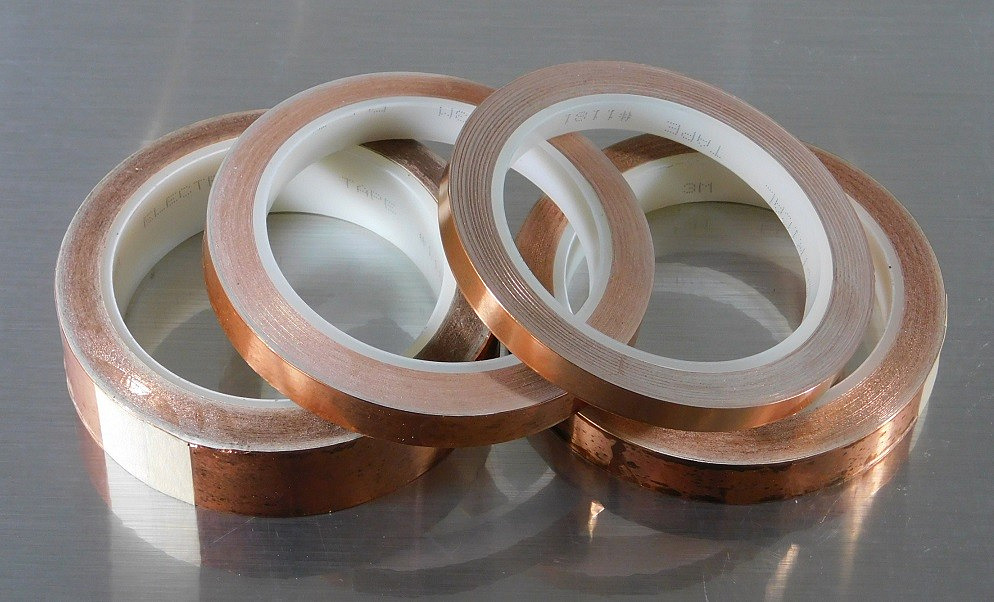

3M 1181 Copper Conductive Adhesive Tape, thickness 0.066 mm 19 mm x 16.5 m
Images are for illustration purposes only.
Parameters
Product description
The copper conductive tape 3M 1181 with a paper liner is suitable for shielding against electromagnetic interference in electrical and electronic devices (attenuation min. 60dB/30 MHz – 1GHz) and grounding in ESD applications, particularly grounding of antistatic grids under ESD flooring. Under certain conditions, it is also solderable. The tape is also suitable for die-cutting. The transition resistance through the sticky side is 0.005 ohms. The tape is designed for indoor use.
Download
Dokumenty
Datasheet_1181_2010_AJ.pdf
