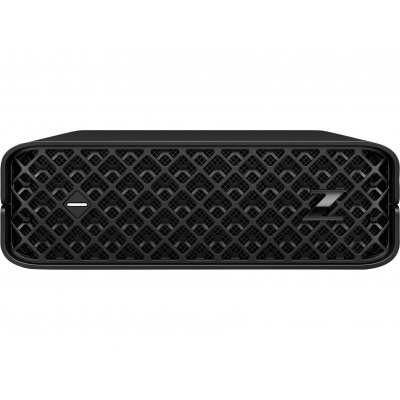

Product description HP Z2 G9 Mini 8T1S2EA#BCM Computer Mini, i5-14600KF, 16GB, 512GB SSD, T1000, W11P, 3RNBD
| Výrobce | INTEL |
| Typ CPU | Intel Core i5 |
| Generace CPU | Intel 14. generace |
| Přesný model | i5-14600KF |
| Zákl.frekvence jádra CPU (GHz) | 3,5 |
| Počet jader | 14 |
| Kapacita přesná (GB) | 512GB |
| DisplayPort connector | Yes |
| DP number | 6 |
| HDMI connector | No |
| Výkon napájecího zdroje (W) | 280 |
| Paměť - velikost (GB) | 16 |
| Počet paměti RAM | 16GB (1x 16GB) |
| Typ paměti | DDR5 |
| Rozměry paměti | SODIMM |
| Paměť Intel Optane | Ne |
| Paměť - počet slotů celkem | 2 |
| Paměť - počet volných slotů | 1 |
| Paměť - rychlost | 5600 |
| Disk - typ | SSD |
| Optická mechanika | Ne |
| Čtečka karet | Ne |
| Grafická karta | NVIDIA |
| Thunderbolt 3 (kompatibilní) | Ne |
| eSATA | Ne |
| Výstup VGA | Ne |
| Výstup DVI | Ne |
| Výstup mini/micro HDMI | Ne |
| Výstup mini DisplayPort | Ano |
| Konektor RJ45 | Ano |
| Bluetooth | Ne |
| Wi-Fi | Ne |
| TPM 2.0 | Ano |
| Provedení | Mini PC |
| Typ SSD | M.2 2280 |
| Rozhraní SSD | PCI-Express NVMe |
| Operační systém | Windows 11 Pro |
| Ethernet | 1 Gbs |
| Počet LAN portů | 1 |
| Zabezpečení zámkem | možnost mechanického zamčení skříně zámkem |
| Klávesnice | Drátová |
| Myš | Drátová |
| USB 3.x (přední) | 1 |
| USB 3.x Type-C (přední) | 2 |
| USB 3.x (zadní) | 3 |
| Audio 3,5mm jack | Ano |
| Paměť | 8 |
| Modelová řada GPU | NVIDIA Quadro T1000 |
| Max.frekvence jádra CPU (GHz) | 4,3 |
| CPU s podporou AI | Ne |
| Barva | Černá |
| NPU - počet TOPs | Nepodporuje |
Achieve incredibly high performance with an exceptionally small computer. It fits easily on a desk or behind a monitor, allowing you to work on 3D projects without losing valuable office space. The new elegant look is also the perfect choice for any modern home or office workspace.
Model: HP Z2 G9 Mini
Operating System: Windows 11 Pro
Processor: Intel Core i5-14600KF (14 cores - 6P + 8E, 20 threads, P-core 3.5/5.3 GHz, E-core 2.6/4.0 GHz, 24 MB cache)
Chipset: Intel® Q670
Hard Drive: HP Z Turbo Drive 512 GB PCIe® NVMe™ M.2 SSD
Optical Drive: no
Graphics Card: NVIDIA® T1000 8 GB
Memory: 16 GB DDR5 5 600 MHz RAM (1x 16 GB) SODIMM
Max. size: 64 GB
Number of slots (total / free): 2/1
Network: : Intel® I219-LM PCIe® GbE
Front (side) connectors:
*1x headphone/microphone jack
*1x SuperSpeed USB Type-A with a signal transfer rate of 10 Gb/s (1x charging)
*2x SuperSpeed USB Type-C® with a signal transfer rate of 20 Gb/s
Rear connectors:
*3x SuperSpeed USB Type-A with a signal transfer rate of 10 Gb/s
*1x RJ-45
*2x DP 1.4
*4x mDP (on the graphics card)
Expansion slots:
*2x M.2 2280 PCIe 4 x4
*1x M.2 2230 for WLAN
*1x PCIe® 4 x8 (low-profile PCIe connector)
Memory card reader: no
Case design: Mini
Dimensions: 21.1 x 21.8 x 6.9 cm
Weight: 2.5 kg
Power supply: 280W external power adapter, up to 89% average efficiency, active PFC correction
Keyboard: HP 125 Wired Keyboard
Mouse: HP Wired Desktop 128 Laser Mouse
Warranty: 3 years
For proper Care Pack compatibility, use the HP portal
https://cpc2.ext.hp.com/?countries=CZ
