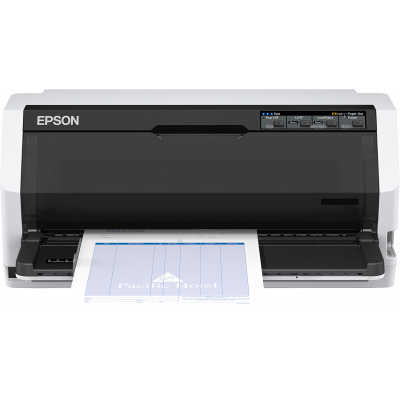

Epson LQ-690II C11CJ82401 dot matrix printer

Quick Print:
Print faster and more productively. The LQ-690II model prints the original + six copies and is capable of printing at an impressive speed of 487 characters per second (10 cpi) using printer fonts.

High Tape Yield:
In a demanding and busy work environment, high tape yield is very important. The LQ-690II printer boasts a yield of 10 million characters per ribbon, making it a leading player in the dot matrix printer market. It is also cost-effective due to long tape replacement cycles, low operating costs, and overall cost of ownership. The tape is also transferable, which means you can use tapes from your current printer in a new printer, leading to lower costs and less waste.

Reliability:
The printer is durable and characterized by a long lifespan. Users can rely on a mean time between failures reaching 20,000 operating hours. The robust cabinet withstands high humidity and thermal conditions, making the LQ-690II ideal for any work environment. The result is higher productivity and lower maintenance requirements due to downtime – these advantages are crucial when printing a large volume of documents and data.

Intelligent Design:
This compact, powerful printer is designed to fit on your desk. Thanks to its modern black and white cover, it fits perfectly into both office and warehouse environments.

Basic Features
*High Speed Impressive print speed of 487 characters per second (10 cpi) with 1 + 6 copies
*Quality 106-column capacity with 24 pins ensures higher quality
*Reliability Combined print head life and mean time between failures of 20,000 hours
*Modern Design Black and white cover fits nicely into any work environment

Technology
Printing Method: Dot matrix printing
Number of Pins: 24 pins
Number of Columns: 106 columns
Number of Pins: 24 pins

Printing
Print Speed: HighSpeed-Draft: 10 cpi: 487 characters/s, 12 cpi: 529 characters/s, Draft: 10 cpi: 366 characters/s, 12 cpi: 396 characters/s, LQ: 10 cpi: 121 characters/s, 12 cpi: 132 characters/s
Number of Copies: 6 plus one original
Character Tables: PC437, PC708, PC720, PC850, PC858, PC864, PCAR864, ISO-8859-15, Roman 8, Italic
Print Resolution: 360 x 180 dpi

Controller Connectivity Options
Interface: USB 2.0, Bidirectional Parallel

Paper/Media Handling
Sheet Feeding: Single sheet front, Continuous paper rear, Paper output front
Paper Formats: Paper sheets (single and multi-layer), Continuous paper (single and multi-layer), Labels (single and multi-layer), Paper rolls, Envelopes, Cardboard
Continuous Paper Thickness: 0.065 mm - 0.49 mm
Labels Base Sheet Thickness: 0.16 mm - 0.19 mm
Labels Total Sheet Thickness: 0.16 mm - 0.19 mm
Multi Part Paper Thickness: 0.12 mm - 0.49 mm
Single Sheet Paper Thickness: 0.065 mm - 0.15 mm

General Information
Power Consumption: 38 W, 3 W (standby mode)
Product Dimensions: 480?x 301 x 211 mm (width x depth x height)
Product weight: 6.8 kg
Compatible operating systems: Windows 10, Windows 11, Windows 2000, Windows 7, Windows 8, Windows 98, Windows Vista, Windows XP, Windows XP SP3 or later (32-bit), Windows Server 2003 SP2 or later
Included software: Epson Status Monitor
Average MTBF: 20.000 Hours
Print head life: 400 million strokes per pin
Operation: 59 dB (A) - in standby mode: 54 dB (A)
Font types: Bitmap font EPSON Courier (10 CPI, 12 CPI, 15 CPI), Bitmap font EPSON Draft (10 CPI, 12 CPI, 15 CPI), Bitmap font EPSON OCR-B (10 CPI), Bitmap font EPSON Orator (10 CPI), Bitmap font EPSON Orator-S (10 CPI), Bitmap font EPSON Prestige (10 CPI, 12 CPI), Bitmap font EPSON Roman (10 CPI, 12 CPI, 15 CPI, Proportional), Bitmap font EPSON Sans Serif (10 CPI, 12 CPI, 15 CPI, Proportional), Bitmap font EPSON Script (10 CPI), Bitmap font EPSON Script C (Proportional), Scalable font EPSON Roman, Scalable font EPSON Roman T, Scalable font EPSON Sans Serif, Scalable font EPSON Sans Serif H

Package contents: Drivers and utilities (CD), Main unit, Power cable, Ribbon cartridge, Installation guide, Software (CD), User manual (CD), Warranty document
