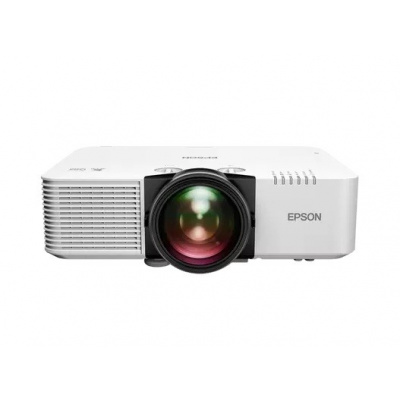

Product description EPSON EB-L690SE/3LCD/6000lm/WUXGA/2x HDMI/LAN/WiFi
| Image format | Widescreen - 16:10 |
| S connector - video | No |
| USB connector | Yes |
| Component video | No |
| Composite video | No |
| HDMI connector | Yes |
| Repro | No |
| VGA output | No |
| DVI output | No |
| RJ45 connector | Yes |
| Exact weight (kg) | 9,3 |
| HDMI (quantity) | 2 pcs |
| 3.5 mm audio jack | Yes |
| Tripod included in the package | No |
| Brand and model | EPSON EB-L690SE |
| Technology | 3LCD |
| Precise brightness (ANSI) | 6000 |
| Brightness (ANSI) | from 5,100 to 8,000 |
| Contrast | over 10,000:1 |
| Native resolution | 1920 x 1200 (WUXGA) |
| Projector for the office | Yes |
| Projector for school | Yes |
| Max. screen size (inches) | 500 |
| Exact lamp life in ECO (hours) | 30000 |
| Lamp life in ECO (hours) | over 10,000 |
| Wi-Fi | Yes |
| Weight (kg) | over 5 |
| Noise level (dB, normal operation) | 36 |
| Short projection | Yes |
| Lighting | Laser |
| Remote control | Yes |
| WWW_MORE_DETAILED_SCRIPT | Description + Epson logo |
| Color | Black |
| Location | Table/Ceiling |
Inspiring Professional 4KE Short Throw Projector for Presentation Environments
*Brightness of 6,000 lumens with 4K enhancement image technology at 60 Hz This affordable laser projector delivers sharp and clear images with up to 4.6 million pixels and is ideal for large projection surfaces in professional settings.
*Compact design with short throw distance for displaying presentations Allows projecting a scalable image up to 500" in size with a short focal length ratio of 0.5–0.7:1 and 1.4× zoom, creating impressive images without shadows and glare in compact spaces.
*Quiet Operation High-performance display with low noise level of 36 dB in normal mode or 26 dB in eco mode, ensuring a quiet and focused environment for presentation visual experiences.
*Easy and flexible installation A fixed central lens with manual image shift and advanced features such as corner geometric correction ensures easy setup and adaptability for any environment.
*Advanced Installation Tools Includes free software tools and an optional external camera module for enhanced configuration flexibility.
*Sustainable decision-making with Epson Made from 19% recycled plastics, it has low energy consumption, reduces packaging materials, and achieves up to 30,000 hours of operation in eco mode (20,000 hours in normal operation).
Projection Technology: 3LCD, RGB with liquid crystal shutter
Native Resolution: WUXGA
Supported Resolution: 4K Technology
Number of Displayed Colors: up to 1.07 billion colors
Luminance [lm]: 6.000 lumens (4.200 lumens economical)
Contrast: Over 5.000.000 : 1
Display format: 16 : 10
Projection method (N,ST,UST): ST (short throw distance)
Image size [inches]: 100" - 500"
Projection distance [m]: 1.1 m - 7.84 m
Throw Ratio: 0.50 - 0.70:1
Zoom: Manual, factor 1 - 1.4
Sound: External speaker
Lamp type: Laser
Lamp life [h]: 20.000 hours (normal), 30.000 hours (eco)
Interface: USB 2.0-A (2x), USB 2.0 type B (service only), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), wireless LAN IEEE 802.11a/b/g/n/ac (optional), HDMI output, HDBaseT, audio output, stereo mini-jack connector, HDMI (HDCP 2.3) (2x), Near Field Communication Technology (NFC)
Power Supply: AC 100 V - 240 V, 50 Hz - 60 Hz
Power Consumption [W]: 362 W (normal), 250 W (eco), 415 W (peak normal), 303 W (peak eco)
Standby Power Consumption [W]: 0.4 W (energy saving standby)
Noise Level [dB]: 36 dB (normal), 26 dB (eco mode)
Dimensions [mm]: 440 x 368 x 151
Weight [kg]: 9.3
Package Contents: Main device, power cable, quick start guide, remote control incl. battery, user guide, warranty document
Warranty: 60 months.
*Brightness of 6,000 lumens with 4K enhancement image technology at 60 Hz This affordable laser projector delivers sharp and clear images with up to 4.6 million pixels and is ideal for large projection surfaces in professional settings.
*Compact design with short throw distance for displaying presentations Allows projecting a scalable image up to 500" in size with a short focal length ratio of 0.5–0.7:1 and 1.4× zoom, creating impressive images without shadows and glare in compact spaces.
*Quiet Operation High-performance display with low noise level of 36 dB in normal mode or 26 dB in eco mode, ensuring a quiet and focused environment for presentation visual experiences.
*Easy and flexible installation A fixed central lens with manual image shift and advanced features such as corner geometric correction ensures easy setup and adaptability for any environment.
*Advanced Installation Tools Includes free software tools and an optional external camera module for enhanced configuration flexibility.
*Sustainable decision-making with Epson Made from 19% recycled plastics, it has low energy consumption, reduces packaging materials, and achieves up to 30,000 hours of operation in eco mode (20,000 hours in normal operation).
Projection Technology: 3LCD, RGB with liquid crystal shutter
Native Resolution: WUXGA
Supported Resolution: 4K Technology
Number of Displayed Colors: up to 1.07 billion colors
Luminance [lm]: 6.000 lumens (4.200 lumens economical)
Contrast: Over 5.000.000 : 1
Display format: 16 : 10
Projection method (N,ST,UST): ST (short throw distance)
Image size [inches]: 100" - 500"
Projection distance [m]: 1.1 m - 7.84 m
Throw Ratio: 0.50 - 0.70:1
Zoom: Manual, factor 1 - 1.4
Sound: External speaker
Lamp type: Laser
Lamp life [h]: 20.000 hours (normal), 30.000 hours (eco)
Interface: USB 2.0-A (2x), USB 2.0 type B (service only), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), wireless LAN IEEE 802.11a/b/g/n/ac (optional), HDMI output, HDBaseT, audio output, stereo mini-jack connector, HDMI (HDCP 2.3) (2x), Near Field Communication Technology (NFC)
Power Supply: AC 100 V - 240 V, 50 Hz - 60 Hz
Power Consumption [W]: 362 W (normal), 250 W (eco), 415 W (peak normal), 303 W (peak eco)
Standby Power Consumption [W]: 0.4 W (energy saving standby)
Noise Level [dB]: 36 dB (normal), 26 dB (eco mode)
Dimensions [mm]: 440 x 368 x 151
Weight [kg]: 9.3
Package Contents: Main device, power cable, quick start guide, remote control incl. battery, user guide, warranty document
Warranty: 60 months.
