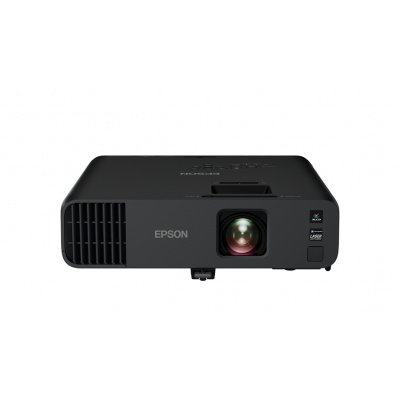

Product description Epson EB-L265F/3LCD/4600lm/FHD/2x HDMI/LAN/WiFi
| ECO product according to the EU parameter | Yes |
| Image format | Widescreen - 16:9 |
| S connector - video | No |
| USB connector | Yes |
| Composite video | No |
| HDMI connector | Yes |
| Repro | Yes |
| Power consumption (W) | 260 |
| VGA output | Yes |
| DVI output | No |
| RJ45 connector | Yes |
| Exact weight (kg) | 4,2 |
| HDMI (quantity) | 2 pcs |
| 3.5 mm audio jack | Yes |
| Brand and model | Epson EB-L265F |
| Technology | 3LCD |
| Precise brightness (ANSI) | 4600 |
| Brightness (ANSI) | from 4,200 to 5,100 |
| Contrast | over 10,000:1 |
| Native resolution | 1920 x 1080 (1080p) |
| Supported resolution (max) | 1920x1080 (Full HD) |
| Home theater projector | No |
| Projector for the office | No |
| Projector for school | No |
| Max. screen size (inches) | 310" |
| Exact lamp life in ECO (hours) | 30000 |
| Lamp life in ECO (hours) | over 10,000 |
| Wi-Fi | Yes |
| Weight (kg) | to 5 |
| Noise level (dB, normal operation) | 37 |
| 3D technology | No |
| Automatic tilt correction | Yes |
| Autofocus | No |
| Interactive projector | No |
| Lighting | Laser |
| Remote control | Yes |
| TCO Certified | Yes |
| TCO Certified number | P924090005 |
| WWW_MORE_DETAILED_SCRIPT | Script description |
| Color | Black |
| Location | Table/Ceiling |
Create engaging experiences and signage with native Full HD resolution, high brightness, and flexible installation and display options
TECHNICAL SPECIFICATIONS
TECHNOLOGY
Projection system: 3LCD technology, RGB with liquid crystal shutter
LCD panel: 0.62 inches with C2 Fine
Color light output: 4.600 lumens - 3.200 lumens (economic) in accordance with the IDMS15 standard.4
White light output: 4.600 lumens - 3.200 lumens (economic) In accordance with ISO 21118:2020
Resolution: 1080p
High Definition (HD): Full HD
Aspect Ratio: 16 : 9
Contrast Ratio: 2.500.000 : 1
Light source: Laser
Light source: 20.000 Durability High Watches, 30.000 Hours Durability Eco
Keystone Correction: Auto Vertical: ± 30 °, Manual Horizontal ± 30 °
Video Editing: 10 bit
2D Vertical Refresh Rate: 192 Hz - 240 Hz
Color Reproduction: up to 1.07 billion colors
OPTICS
Projection Ratio: 1.32 - 2.12:1
Zoom: Manual, Factor: 1 - 1.62
Lens: Optics
Projected Image Diagonal: 31 inches - 310 inches
Projection Lens Aperture: 1.51 - 1.77
Focal Length: 18.2 mm - 29.1 mm
Focus: Manual
Shift: 10 : 1
CONTROL UNIT CONNECTION OPTIONS
Interface: USB 2.0-A, USB 2.0 type B (service only), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), wireless LAN IEEE 802.11a/b/g/n/ac (WiFi 5), VGA input (2x), VGA output, composite input, Miracast, audio output, stereo mini-jack connector, audio input (2x), HDMI (HDCP 2.3) (2x)
Connecting a smart device: Ad-hoc / infrastructure
Network protocol: HTTPS, IPv6, SNMP, ESC/VP.net, PJLink
ADVANCED FEATURES
Security: Kensington lock, Security bar, Control panel lock, Padlock slot, Security cable slot, Wireless LAN unit lock, Wireless LAN security, Password protection
Features and Functions: A/V mute, Arc Correction Technology, Auto power on, Auto source search, Auto keystone correction, Built-in speaker, Customizable user logo, Direct power on/off function, Compatible with visualizers, Edge Blending Technology, Home screen, Horizontal and vertical keystone correction, Long light source life, OSD menu copy function, PC-free, Quick Corner, Scheduling function, Screen mirroring, Split screen function, Super resolution, Web control, Remote control via web, Wireless LAN compatible, iProjection app
Color Modes: Blackboard, Cinema, Dynamic, Presentation, sRGB, Multi Projection
Projector Control: via: Crestron Integrated Partner, Crestron RoomView, Extron IP Link, AMX Device Discovery, Control4 Simple Device Discovery Protocol
GENERAL INFORMATION
Power consumption: 199 W - On mode power consumption (Normal)
260 W (Peak), 191 W (eco), 0.5 W (energy saving standby)
Heat dissipation: 884 BTU/hour (max)
Power supply: AC 220 V - 240 V, 50 Hz - 60 Hz
Product weight: 4.2 kg
Max. noise level: Normal mode: 37 dB (A) - economy mode: 27 dB (A)
Temperature: storage -10° C - 60° C
Humidity: Operation 20% - 80%, storage 10% - 90%
Included software: Epson Creative Projection, EasyMP Multi PC Projection, Epson Projector Content Manager Software, Epson Projector Management
Accessories: Air filter, Ceiling mount, Connection and control unit, Document camera, External speaker, Security cable set, WP system – ELPWP10, Wall mount, Wireless LAN unit, Wireless transmitter – ELPWT01
Speakers: 16 W
Package contents: Cable cover, power cable, remote control incl. battery
Room/Application Type: Projection Mapping, Advertising/Retail, Visitor Attractions
Location: Ceiling Installation, Tabletop, Floor, Light Bar, Wall Installation
Color: Black
WARRANTY 60 months with the supplier or 12.000 h
TECHNICAL SPECIFICATIONS
TECHNOLOGY
Projection system: 3LCD technology, RGB with liquid crystal shutter
LCD panel: 0.62 inches with C2 Fine
Color light output: 4.600 lumens - 3.200 lumens (economic) in accordance with the IDMS15 standard.4
White light output: 4.600 lumens - 3.200 lumens (economic) In accordance with ISO 21118:2020
Resolution: 1080p
High Definition (HD): Full HD
Aspect Ratio: 16 : 9
Contrast Ratio: 2.500.000 : 1
Light source: Laser
Light source: 20.000 Durability High Watches, 30.000 Hours Durability Eco
Keystone Correction: Auto Vertical: ± 30 °, Manual Horizontal ± 30 °
Video Editing: 10 bit
2D Vertical Refresh Rate: 192 Hz - 240 Hz
Color Reproduction: up to 1.07 billion colors
OPTICS
Projection Ratio: 1.32 - 2.12:1
Zoom: Manual, Factor: 1 - 1.62
Lens: Optics
Projected Image Diagonal: 31 inches - 310 inches
Projection Lens Aperture: 1.51 - 1.77
Focal Length: 18.2 mm - 29.1 mm
Focus: Manual
Shift: 10 : 1
CONTROL UNIT CONNECTION OPTIONS
Interface: USB 2.0-A, USB 2.0 type B (service only), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), wireless LAN IEEE 802.11a/b/g/n/ac (WiFi 5), VGA input (2x), VGA output, composite input, Miracast, audio output, stereo mini-jack connector, audio input (2x), HDMI (HDCP 2.3) (2x)
Connecting a smart device: Ad-hoc / infrastructure
Network protocol: HTTPS, IPv6, SNMP, ESC/VP.net, PJLink
ADVANCED FEATURES
Security: Kensington lock, Security bar, Control panel lock, Padlock slot, Security cable slot, Wireless LAN unit lock, Wireless LAN security, Password protection
Features and Functions: A/V mute, Arc Correction Technology, Auto power on, Auto source search, Auto keystone correction, Built-in speaker, Customizable user logo, Direct power on/off function, Compatible with visualizers, Edge Blending Technology, Home screen, Horizontal and vertical keystone correction, Long light source life, OSD menu copy function, PC-free, Quick Corner, Scheduling function, Screen mirroring, Split screen function, Super resolution, Web control, Remote control via web, Wireless LAN compatible, iProjection app
Color Modes: Blackboard, Cinema, Dynamic, Presentation, sRGB, Multi Projection
Projector Control: via: Crestron Integrated Partner, Crestron RoomView, Extron IP Link, AMX Device Discovery, Control4 Simple Device Discovery Protocol
GENERAL INFORMATION
Power consumption: 199 W - On mode power consumption (Normal)
260 W (Peak), 191 W (eco), 0.5 W (energy saving standby)
Heat dissipation: 884 BTU/hour (max)
Power supply: AC 220 V - 240 V, 50 Hz - 60 Hz
Product weight: 4.2 kg
Max. noise level: Normal mode: 37 dB (A) - economy mode: 27 dB (A)
Temperature: storage -10° C - 60° C
Humidity: Operation 20% - 80%, storage 10% - 90%
Included software: Epson Creative Projection, EasyMP Multi PC Projection, Epson Projector Content Manager Software, Epson Projector Management
Accessories: Air filter, Ceiling mount, Connection and control unit, Document camera, External speaker, Security cable set, WP system – ELPWP10, Wall mount, Wireless LAN unit, Wireless transmitter – ELPWT01
Speakers: 16 W
Package contents: Cable cover, power cable, remote control incl. battery
Room/Application Type: Projection Mapping, Advertising/Retail, Visitor Attractions
Location: Ceiling Installation, Tabletop, Floor, Light Bar, Wall Installation
Color: Black
WARRANTY 60 months with the supplier or 12.000 h
