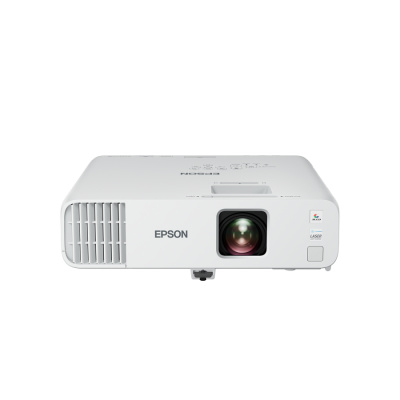

Product description Epson EB-L260F/3LCD/4600lm/FHD/2x HDMI/LAN/WiFi
| EKO produkt podle parametru EU | Ano |
| Image format | Widescreen - 16:9 |
| Konektor S - video | Ne |
| USB connector | Yes |
| Kompozitní video | Ne |
| HDMI connector | Yes |
| Speakers | Yes |
| Spotřeba energie (W) | 260 |
| Výstup VGA | Ano |
| Výstup DVI | Ne |
| Konektor RJ45 | Ano |
| Exact weight (kg) | 4,2 |
| HDMI (počet) | 2 ks |
| Audio 3,5mm jack | Ano |
| Značka a model | Epson EB-L260F |
| Technologie | 3LCD |
| Přesná svítivost (ANSI) | 4600 |
| Svítivost (ANSI) | od 4 200 do 5 100 |
| Kontrast | nad 10 000:1 |
| Nativní rozlišení | 1920 x 1080 (1080p) |
| Podporované rozlišení (max) | 1920x1080 (Full HD) |
| Projektor pro domácí kino | Ne |
| Projektor do kanceláře | Ano |
| Projektor do školy | Ano |
| Max. velikost obrazu (palce) | 310" |
| Přesná živ lampy v ECO (hodin) | 30000 |
| Životnost lampy v ECO (hodin) | nad 10 000 |
| Wi-Fi | Ano |
| Hmotnost (kg) | do 5 |
| Hlučnost (dB, běžný provoz) | 37 |
| 3D technologie | Ne |
| Min. projekční vzdálenost (m) | 0,8 |
| Automatická korekce náklonu | Ano |
| Automatické ostření | Ne |
| Interaktivní projektor | Ne |
| Osvětlení | Laser |
| Dálkový ovladač | Ano |
| TCO Certified | Ano |
| TCO Certified number | P924090004 |
| WWW_MORE_DETAILS_SCRIPT | Script description |
| Barva | Bílá |
| Umístění | Stolní/Stropní |
Easy projection of content in Full HD resolution on a scalable projection screen with a diagonal of up to 310 inches, with wide connectivity options for streaming and sharing.
TECHNICAL SPECIFICATIONS
TECHNOLOGY
Projection system: 3LCD technology, RGB with liquid crystal shutter
LCD panel: 0.62 inches with C2 Fine
Color light output: 4.600 lumens - 3.200 lumens (economic) in accordance with the IDMS15 standard.4
White light output: 4.600 lumens - 3.200 lumens (economic) In accordance with ISO 21118:2020
Resolution: 1080p
High Definition (HD): Full HD
Aspect Ratio: 16 : 9
Contrast Ratio: 2.500.000 : 1
Light source: Laser
Light source: 20.000 Durability High Watches, 30.000 Hours Durability Eco
Keystone Correction: Auto Vertical: ± 30 °, Manual Horizontal ± 30 °
Video Editing: 10 bit
2D Vertical Refresh Rate: 192 Hz - 240 Hz
Color Reproduction: up to 1.07 billion colors
OPTICS
Projection Ratio: 1.32 - 2.12:1
Zoom: Manual, factor: 1 - 1.62
Projection Lens Zoom Ratio: 1.32 - 2.12 : 1
Lens: Optics
Projected Image Diagonal: 31 inches - 310 inches
Projection Distance - Wide: 0.9 m - 9.1 m
Projection Lens Aperture: 1.51 - 1.77
Focal Length: 18.2 mm - 29.1 mm
Focus: Manual
Shift: 10 : 1
CONTROL UNIT CONNECTION OPTIONS
Interface: USB 2.0-A, USB 2.0, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wi-Fi Direct, VGA input (2x), VGA output, composite input, Miracast, audio output, stereo mini-jack connector, audio input (2x), audio input, microphone input, HDMI (HDCP 2.2) (2x), wireless LAN network IEEE 802.11a/b/g/n/ac (WiFi 5)
Smart device connection: Ad-hoc / infrastructure
Network protocol: HTTPS, IPv6, SNMP, ESC/VP.net, PJLink
ADVANCED FEATURES
Security: Kensington lock, Security bar, Control panel lock, Padlock hole, Security cable slot, Wireless LAN unit lock, Wireless LAN security, Password protection
2D Color Modes: Dynamic, Cinema, Presentation, sRGB, Game
Features and Functions: A/V Mute Slide, Arc Correction Technology, Auto Power On, Auto Source Search, Built-in Speaker, Customizable User Logo, Direct Power On/Off, Compatible with Document Cameras, Edge Blending Technology, Home Screen, Horizontal and Vertical Keystone Correction, Long Light Source Life, OSD Menu Copy Function, PC-Free, Quick Corner, Schedule Function, Screen Mirroring, Screen Sharing, Split Screen Function, Super Resolution, Web Control, Wireless LAN Capable, iProjection App
Color Modes: Blackboard, Cinema, Dynamic, Presentation, sRGB, DICOM SIM, Multi Projection
Projector Control: via: Crestron Integrated Partner, Extron IP Link, AMX Device Discovery, Control4 Simple Device Discovery Protocol
GENERAL INFORMATION
Power Consumption: 199 W - On mode power consumption (Normal); 260 W (Peak), 191 W (eco), 0.5 W (energy saving standby)
Heat Dissipation: 884 BTU/hour (max)
Power Supply: AC 220 V - 240 V, 50 Hz - 60 Hz
Product Dimensions: 325? x 299 x 90 mm (width x depth x height)
Product weight: 4.2 kg
Max. noise level: Normal mode: 37 dB (A) - Eco mode: 27 dB (A)
Temperature: Storage -10° C - 60° C
Humidity: Operation 20% - 80%, Storage 10% - 90%
Included software: Epson Creative Projection, EasyMP Multi PC Projection, Epson Projector Content Manager Software, Epson Projector Management
Accessories: Air filter, Ceiling mount, Connection and control unit, Document camera, External speaker, Security cable set, Hanging adapter, WP system – ELPWP10, Wall mount, Wireless transmitter – ELPWT01
Speakers: 16 W
Package contents: HDMI cable 1.8 m, Main unit, Power cable, Remote control incl. battery
Room/Application Type: Meeting Room, Home Office, Large Conference Room/Auditorium, Conference Room/Classroom, Projection Mapping, Advertising/Retail, Visitor Attractions
Placement: Ceiling Installation, Desktop, Floor, Wall Installation
Color: White
Warranty: 60 months with the supplier or 12.000 h
