Product description Epson EB-810E/3LCD/5000lm/4K UHD/2x HDMI/LAN/WiFi
| EKO produkt podle parametru EU | Ano |
| Image format | Widescreen - 16:9 |
| USB connector | Yes |
| HDMI connector | Yes |
| Speakers | Yes |
| Spotřeba energie (W) | 380 |
| Konektor RJ45 | Ano |
| Exact weight (kg) | 12,5 |
| HDMI (počet) | 2 ks |
| Značka a model | Epson EB-810E |
| Technologie | 3LCD |
| Přesná svítivost (ANSI) | 5000 |
| Svítivost (ANSI) | od 4 200 do 5 100 |
| Kontrast | nad 10 000:1 |
| Nativní rozlišení | 4096 x 2160 (4K) |
| Podporované rozlišení (max) | 4096x2160 |
| Projektor do kanceláře | Ano |
| Projektor do školy | Ano |
| Přesná živ lampy v ECO (hodin) | 30000 |
| Životnost lampy v ECO (hodin) | nad 10 000 |
| Wi-Fi | Ano |
| Hmotnost (kg) | nad 5 |
| Hlučnost (dB, běžný provoz) | 35 |
| Osvětlení | Laser |
| Dálkový ovladač | Ano |
| TCO Certified | Ano |
| TCO Certified number | P924090013 |
| WWW_MORE_DETAILS_SCRIPT | Script description |
| Barva | Bílá |
| Umístění | Stolní |

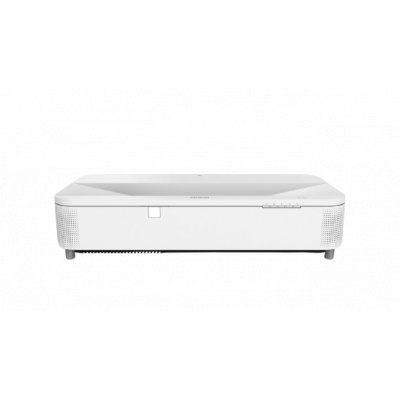

Model EB-810E, Epson's first 4KE laser display with ultra-short throw, designed for businesses, hybrid collaboration, and meeting rooms.
The EB-810E model can be placed just a few centimeters from the wall to create a bright 4K image with a diagonal of up to 160". It projects content with stunning clarity and offers a low-cost, energy-efficient large display solution with convenient and quick setup.
TECHNICAL SPECIFICATIONS
TECHNOLOGY
Projection system: 3LCD technology, RGB with liquid crystal shutter
LCD panel: 0.62 inches with C2 Fine
Color light output: 5.000 lumens- 3.500 lumens (economic) in accordance with the IDMS15 standard.4
White light output: 5.000 lumens - 3.500 lumens (economic) In accordance with ISO 21118:2020
High Resolution (HD): 4K Technology
Aspect Ratio: 16 : 9
Contrast Ratio: Over 2.500.000 : 1
Light source: Laser
Light source: 20.000 Durability High Watches, 30.000 Hours Durability Eco
Video Editing: 10 bits
2D Vertical Refresh Rate: 192 Hz - 240 Hz
HDR support: HDR10, HLG
OPTICS
Projection Ratio: 0.16 - 0.40:1
Zoom: Digital, factor: 1 - 1.35
Lens: Optics
Projected Image Diagonal: 80 inches - 160 inches
Projection Lens Aperture: 1.8
Focal Length: 2.3 mm
Focus: Manual
Shift: 7 : 1
CONTROL UNIT CONNECTION OPTIONS
Interface: USB 2.0-A (2x), USB 2.0 type B (service only), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), wireless LAN IEEE 802.11a/b/g/n/ac (WiFi 5), HDMI input (2x), HDMI output, HDBaseT, Miracast
Smart device connection: Ad-hoc / infrastructure
Network protocol: HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink
ADVANCED FEATURES
Security: Kensington lock, Control panel lock, Password protection, Padlock slot, Wireless LAN unit lock, Wireless LAN security, Password protection
3D: No
2D Color Modes: Dynamic, Natural, Cinema, Presentation, Blackboard, DICOM SIM
Features and Functions: 21:9 aspect ratio support, 4K technology, A/V mute, Arc Correction technology, Auto power on, Auto source search, Built-in speaker, CEC standard compatible, Customizable user logo, Multi-projection in series, Digital zoom, Direct power on/off function, Visualizer compatible, Edge Blending technology, Email notification, Screen fit, Home screen, Horizontal and vertical keystone correction, Image shift, JPEG viewer, Long light source life, PC-free, Point correction, Power on button, Quick Corner, Scheduling function, Screen mirroring, Source function, Split screen function, Extra wide image (16:6), Web control, Remote control via web, Wireless LAN compatible, iProjection app
Interactivity: No
Color Modes: Blackboard, Cinema, Dynamic, Natural, Presentation, DICOM SIM, Multi Projection
Projector Control: via: AMX, Extron, Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol
GENERAL INFORMATION
Power Consumption: 290 W - On mode power consumption (Normal)
380 W (Peak), 286 W (Eco), 0.4 W (Energy saving standby)
Heat Dissipation: 1.292 BTU/hour (max)
Power Supply: AC 100 V - 240 V, 50 Hz - 60 Hz
Product Dimensions: 695? x 341 x 156 mm (width x depth x height)
Product weight: 12.5 kg
Max. noise level: Normal mode: 35 dB (A) - Eco mode: 26 dB (A)
Temperature: storage -10° C - 60° C
Humidity: Operation 20% - 80%, storage 10% - 90%
Included software: Epson Creative Projection, EasyMP Multi PC Projection, Epson Projector Content Manager Software, Epson Projector Management, Epson Setting Assistant
Accessories: Air filter, Ceiling mount, Connection and control unit, Ceiling mount MB22, Safety wire set, Visualizer camera, WP system – ELPWP10, WP system – ELPWP20, Wall mount, Wireless network unit, Wireless transmitter – ELPWT01
Package contents: power cable, Quick Start Guide, remote control incl. battery
Room type / application: 4K streaming, Meeting room, Team meeting space / portable, Large conference room / auditorium, Conference room / classroom, Advertising/retail, Visitor attractions
Location: Ceiling installation, Tabletop, TV stand, Wall installation
Color: White
Warranty: 60 months with supplier or 12.000 h
