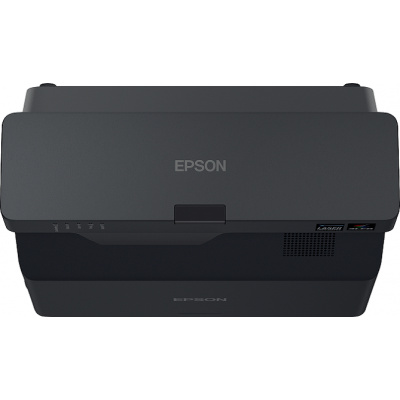

Product description Epson EB-775F/3LCD/4100lm/FHD/HDMI/LAN/WiFi
| ECO product according to the EU parameter | Yes |
| Image format | Widescreen - 16:9 |
| USB connector | Yes |
| HDMI connector | Yes |
| Repro | Yes |
| Power consumption (W) | 265 |
| VGA output | Yes |
| RJ45 connector | Yes |
| Exact weight (kg) | 5,9 |
| HDMI (quantity) | 3 pcs |
| 3.5 mm audio jack | Yes |
| Brand and model | Epson EB-775F |
| Technology | 3LCD |
| Precise brightness (ANSI) | 4100 |
| Brightness (ANSI) | from 3,100 to 4,100 |
| Contrast | over 10,000:1 |
| Native resolution | 1920 x 1080 (1080p) |
| Supported resolution (max) | 1920x1080 (Full HD) |
| Home theater projector | No |
| Projector for the office | No |
| Projector for school | No |
| Max. screen size (inches) | 150" |
| Exact lamp life in ECO (hours) | 30000 |
| Lamp life in ECO (hours) | over 10,000 |
| Wi-Fi | Yes |
| Weight (kg) | over 5 |
| Noise level (dB, normal operation) | 37 |
| Short projection | Yes |
| Lighting | Laser |
| Remote control | Yes |
| TCO Certified | Yes |
| TCO Certified number | P924090012 |
| WWW_MORE_DETAILED_SCRIPT | Script description |
| Color | Black |
| Location | Table/Ceiling |
Digital signage solution
The EB-775F projector offers a cost-effective way to create large, informative, and engaging projections on various surfaces, even in confined spaces, with Full HD resolution and brightness up to 4,100 lumens.
*Up to 150" projection screen
*Brightness 4,100 lumens
*Built-in WiFi and Miracast connectivity
*Flexible playback options
TECHNICAL SPECIFICATIONS
Technology
Projection system: 3LCD technology, RGB with liquid crystal shutter
LCD panel: 0.61 inches with C2 Fine
Color light output: 4.100 lumens- 2.800 lumens (economic) in accordance with the IDMS15 standard.4
White light output: 4.100 lumens - 2.800 lumens (economic) In accordance with ISO 21118:2020
Resolution: 1080p
High Definition (HD): Full HD
Aspect Ratio: 16 : 9
Contrast Ratio: Over 2.500.000 : 1
Light source: Laser
Light source: 20.000 Durability High Watches, 30.000 Hours Durability Eco
Keystone Correction: Manual Vertical: ± 3 °, Manual Horizontal ± 3 °
Video Editing: 10 bits
2D Vertical Refresh Rate: 192 Hz - 240 Hz
Color Reproduction: up to 1.07 billion colors
Optics
Projection Ratio: 0.25 - 0.35:1
Zoom: Digital, factor: 1 - 1.35
Lens: Optics
Projected Image Diagonal: 60 inches - 150 inches
Projection Distance - Wide: 0.4 m (65 inches display)
Projection Distance - Tele: 0.7 m (120 inches display)
Projection Lens Aperture: 1.6
Focal Length: 3.7 mm
Focus: Manual
Shift: 5 : 1
Control Unit Connectivity Options
Interface: USB 2.0-A (2x), USB 2.0, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), wireless LAN IEEE 802.11a/b/g/n/ac (WiFi 5), VGA input (2x), VGA output, HDMI input (3x), composite input, Miracast, audio output, stereo mini-jack connector, audio input (3x), Wi-Fi Direct
Smart device connection: Ad-hoc / infrastructure
Network protocol: HTTPS, IPv6, SNMP, ESC/VP.net, PJLink
Advanced Features
Security: Kensington lock, Control panel lock, Padlock slot, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection
Features and Functions: 21:9 aspect ratio support, A/V mute, Arc Correction Technology, Auto power on, Auto source search, Built-in speaker, CEC standard compatible, Customizable user logo, Digital zoom, Direct power on/off function, Visualizer compatible, Edge Blending Technology, Email notification, Home screen, Horizontal and vertical keystone correction, Image shift, JPEG viewer, Long light source life, Network projection, OSD menu copy function, PC-free, Power on button, Quick Corner, Scheduling function, Screen mirroring, Extra wide image (16:6), Web control, Remote control via web, Wireless LAN compatible, iProjection app
Color Modes: Blackboard, Cinema, Dynamic, Presentation, sRGB, DICOM SIM, Multi Projection
Projector Control: via: Crestron Integrated Partner, Crestron RoomView, Extron IP Link, AMX Device Discovery, Control4 Simple Device Discovery Protocol
General Information
Power consumption: 200 W - On mode power consumption (Normal)
263 W (Peak), 199 W (Eco), 0.5 W (Energy saving standby)
Heat dissipation: 895 BTU/hour (max)
Power supply: AC 220 V - 240 V, 50 Hz - 60 Hz
Product dimensions: 356? x 395 x 133 mm (width x depth x height)
Product weight: 5.9 kg
Max. noise level: Normal mode: 37 dB (A) - Eco mode: 27 dB (A)
Temperature: storage -10° C - 60° C
Humidity: Operation 20% - 80%, storage 10% - 90%
Included software: Epson Creative Projection, EasyMP Multi PC Projection, Epson Projector Content Manager Software, Epson Projector Management
Accessories: Air filter, Ceiling mount, Connection and control unit, External speaker, Security cable set, Visualizer camera, WP system – ELPWP10, Wall hanging bracket, Wall mount, Wireless LAN unit, Wireless transmitter – ELPWT01
Speakers: 16 W
Package contents: power cable, Quick Start Guide, remote control incl. battery, User guide, Warranty documents
Room type / application: Advertising/retail, Visitor attractions
Location: Ceiling installation, Tabletop, Wall installation
Color: Black
Warranty: 60 months with supplier or 12.000 h
