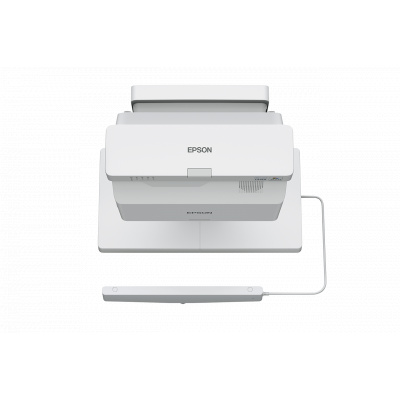

Product description Epson EB-760WI/3LCD/4100lm/WXGA/HDMI/LAN/WiFi
| EKO produkt podle parametru EU | Ano |
| Image format | Widescreen - 16:10 |
| Konektor S - video | Ne |
| USB connector | Yes |
| Kompozitní video | Ne |
| HDMI connector | Yes |
| Speakers | Yes |
| Spotřeba energie (W) | 265 |
| Výstup VGA | Ano |
| Výstup DVI | Ne |
| Konektor RJ45 | Ano |
| Exact weight (kg) | 6 |
| HDMI (počet) | 3 ks |
| Audio 3,5mm jack | Ano |
| Značka a model | Epson EB-760WI |
| Technologie | 3LCD |
| Přesná svítivost (ANSI) | 4100 |
| Svítivost (ANSI) | od 3 100 do 4 100 |
| Kontrast | nad 10 000:1 |
| Nativní rozlišení | 1280 x 800 (WXGA) |
| Projektor pro domácí kino | Ne |
| Projektor do kanceláře | Ano |
| Projektor do školy | Ano |
| Max. velikost obrazu (palce) | 100" |
| Přesná živ lampy v ECO (hodin) | 30000 |
| Životnost lampy v ECO (hodin) | nad 10 000 |
| Wi-Fi | Ano |
| Hmotnost (kg) | nad 5 |
| Hlučnost (dB, běžný provoz) | 37 |
| 3D technologie | Ne |
| Krátká projekce | Ultrakrátká vzdálenost |
| Automatická korekce náklonu | Ne |
| Automatické ostření | Ne |
| Interaktivní projektor | Ano |
| Osvětlení | Laser |
| Dálkový ovladač | Ano |
| TCO Certified | Ano |
| TCO Certified number | P924090010 |
| WWW_MORE_DETAILS_SCRIPT | Script description |
| Barva | Bílá |
Interactive agile projector that offers impressive projection in any workspace. Focuses on user needs and connects people to improve communication.
Technology
Projection System: 3LCD Technology, RGB with liquid crystal shutter
LCD Panel: 0.59 inches with C2 Fine
Color Light Output: 4.100 lumens- 2.800 lumens (economic) in accordance with the IDMS15 standard.4
White light output: 4.100 lumens - 2.800 lumens (economic) In accordance with ISO 21118:2020
Resolution: WXGA
High Definition (HD): HD ready
Aspect Ratio: 16 : 10
Contrast Ratio: Over 2.500.000 : 1
Light source: Laser
Light source: 20.000 Durability High Watches, 30.000 Hours Durability Eco
Keystone Correction: Manual Vertical: ± 3 °, Manual Horizontal ± 3 °
Video Editing: 10 bits
2D Vertical Refresh Rate: 100 Hz - 120 Hz
Color Reproduction: up to 1.07 billion colors
Optics
Projection Ratio: 0.27 - 0.37:1
Zoom: Digital, factor: 1 - 1.35
Lens: Optics
Diagonal Projected Image Size: 53 inches - 100 inches
Projection Lens Aperture: 1.6
Focal Length: 3.7 mm
Focus: Manual
Shift: 6 : 1
Control Unit Connectivity Options
Interface: USB 2.0-A (2x), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), wireless LAN IEEE 802.11a/b/g/n/ac (WiFi 5), VGA input (2x), VGA output, HDMI input (3x), composite input, Miracast, audio output, stereo mini-jack connector, audio input (3x), USB 2.0 type B (service only) (2x), Wi-Fi Direct, microphone input
Smart device connection: Ad-hoc / infrastructure
Network protocol: HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink
Advanced Features
Security: Kensington lock, Control panel lock, Password protection, Padlock slot, Security cable slot, Wireless LAN unit lock, Wireless LAN security, Password protection
Functions and Features: A/V mute, Arc Correction Technology, Auto power on, Auto source search, Built-in speaker, CEC standard compatible, Customizable user logo, Digital zoom, Direct power on/off function, Visualizer compatible, Dual pen support, Easy OSD menu presets, Email notification, Home screen, Horizontal and vertical keystone correction, Image shift, Instant on./off., Interactive, Interactive home screen, Interactive OSD menu, JPEG viewer, Long light source lifespan, Mail notification function, Microphone input, Network management, Network projection, OSD menu copy function, PC-free, PC Interactive, Notes without using a computer, Power on button, iProjection app for Chromebook, Quick Corner, Scheduling function, Mirroring, Screen split function, Web control, Remote control via web, Whiteboard sharing function, Wireless LAN compatible, iProjection app, iProjection app setup via QR code
Interactivity: Yes – pen and touch control
Color modes: whiteboard, cinema, dynamic, presentation, sRGB
Projector control: via: Crestron Integrated Partner, Crestron RoomView, Extron IP Link, AMX Device Discovery, Control4 Simple Device Discovery Protocol
General Information
Power consumption: 197 W - On mode power consumption (Normal); 263 W (Peak), 199 W (Eco), 0.5 W (Energy saving standby)
Heat dissipation: 895 BTU/hour (max)
Power supply: AC 100 V - 240 V, 50 Hz - 60 Hz
Product dimensions: 356? x 395 x 133 mm (width x depth x height)
Product weight: 6 kg
Max. noise level: Normal mode: 37 dB (A) - Eco mode: 27 dB (A)
Temperature: Storage -10° C - 60° C
Humidity: Operation 20% - 80%, Storage 10% - 90%
Included software: Easy Interactive Tools, EasyMP Multi PC Projection, Epson Projector Management
Accessories: Air filter, Ceiling mount, Connection and control unit, External speaker, Touch control unit, Touch control unit holder, Pen tip (felt), Pen tip (teflon), Security cable set, Visualizer camera, WP system – ELPWP10, Wall mount, Wireless LAN unit, Wireless transmitter – ELPWT01
Speakers: 16 W
Package contents: 2x pen tip (teflon), 4x pen tip (felt), Digital pens, Pen holder / pen stand, Power cable, Quick start guide, Remote control incl. battery, USB cable
Room type / application: Conference room / classroom
Location: Ceiling installation, Tabletop, Wall installation
Color: White
