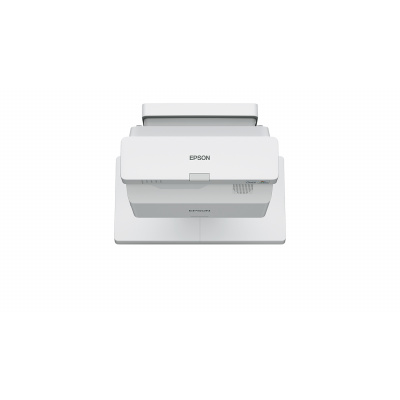

Product description Epson EB-760W/3LCD/4100lm/WXGA/HDMI/LAN/WiFi
| EKO produkt podle parametru EU | Ano |
| Image format | Widescreen - 16:10 |
| Konektor S - video | Ne |
| USB connector | Yes |
| Kompozitní video | Ne |
| HDMI connector | Yes |
| Speakers | Yes |
| Výstup VGA | Ano |
| Výstup DVI | Ne |
| Konektor RJ45 | Ano |
| Exact weight (kg) | 5,9 |
| HDMI (počet) | 3 ks |
| Audio 3,5mm jack | Ano |
| Značka a model | Epson EB-760W |
| Technologie | 3LCD |
| Přesná svítivost (ANSI) | 4100 |
| Svítivost (ANSI) | od 3 100 do 4 100 |
| Kontrast | nad 10 000:1 |
| Nativní rozlišení | 1280 x 800 (WXGA) |
| Projektor pro domácí kino | Ne |
| Projektor do kanceláře | Ne |
| Projektor do školy | Ano |
| Max. velikost obrazu (palce) | 150" |
| Přesná živ lampy v ECO (hodin) | 30000 |
| Životnost lampy v ECO (hodin) | nad 10 000 |
| Wi-Fi | Ano |
| Hmotnost (kg) | nad 5 |
| Hlučnost (dB, běžný provoz) | 37 |
| 3D technologie | Ne |
| Interaktivní projektor | Ne |
| Osvětlení | Laser |
| Dálkový ovladač | Ano |
| TCO Certified | Ano |
| TCO Certified number | P924090011 |
| WWW_MORE_DETAILS_SCRIPT | Script description |
| Barva | Bílá |
| Umístění | Stolní/Stropní |
Project your vision with an affordable WXGA projector with a screen size of up to 150", enhancing education and productivity.
TECHNICAL SPECIFICATIONS
TECHNOLOGY
Projection system: 3LCD technology, RGB with liquid crystal shutter
LCD panel: 0.59 inches with C2 Fine
Color light output: 4.100 lumens- 2.800 lumens (economic) in accordance with the IDMS15 standard.4
White light output: 4.100 lumens - 2.800 lumens (economic) In accordance with ISO 21118:2020
Resolution: WXGA
High Definition (HD): HD ready
Aspect Ratio: 16 : 10
Contrast Ratio: Over 2.500.000 : 1
Light source: Laser
Light source: 20.000 Durability High Watches, 30.000 Hours Durability Eco
Keystone Correction: Manual Vertical: ± 3 °, Manual Horizontal ± 3 °
Video Editing: 10 bits
2D Vertical Refresh Rate: 100 Hz - 120 Hz
Color Reproduction: up to 1.07 billion colors
OPTICS
Projection Ratio: 0.27 - 0.37:1
Zoom: Digital, factor: 1 - 1.35
Lens: Optics
Projected Image Diagonal: 60 inches - 150 inches
Projection Lens Aperture: 1.6
Focal Length: 3.7 mm
Focus: Manual
Shift: 6 : 1
CONTROL UNIT CONNECTION OPTIONS
Interface: USB 2.0-A (2x), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), wireless LAN IEEE 802.11a/b/g/n/ac (WiFi 5), VGA input (2x), VGA output, HDMI input (3x), composite input, Miracast, audio output, stereo mini-jack connector, audio input (3x), USB 2.0 type B (service only), Wi-Fi Direct, microphone input
Smart device connection: Ad-hoc / infrastructure
Network protocol: HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink
ADVANCED FEATURES
Security: Kensington lock, Control panel lock, Padlock hole, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection
Features and Functions: A/V mute, Arc Correction Technology, Auto power on, Auto source search, Built-in speaker, CEC standard compatible, Customizable user logo, Digital zoom, Direct power on/off function, Document camera compatible, Email notification, Home screen, Horizontal and vertical keystone correction, Image shift, JPEG viewer, Long light source life, Network projection, OSD menu copy function, PC-free, Power on button, Quick Corner, Scheduling function, Screen mirroring, Extra wide image (16:6), Web control, Remote control via web, Wireless LAN compatible, iProjection app
Color Modes: Blackboard, Cinema, Dynamic, Presentation, sRGB
Projector Control: via: Crestron Integrated Partner, Crestron RoomView, Extron IP Link, AMX Device Discovery, Control4 Simple Device Discovery Protocol
GENERAL INFORMATION
Heat Dissipation: 895 BTU/hour (max)
Power Supply: AC 100 V - 240 V, 50 Hz - 60 Hz
Product Dimensions: 356? x 395 x 133 mm (width x depth x height)
Product weight: 5.9 kg
Max. noise level: Normal mode: 37 dB (A) - Eco mode: 27 dB (A)
Temperature: Storage -10° C - 60° C
Humidity: Operation 20% - 80%, Storage 10% - 90%
Included software: EasyMP Multi PC Projection, Epson Projector Content Manager Software, Epson Projector Management
Accessories: Air filter, Ceiling mount, Connection and control unit, External speaker, Security cable set, Visualizer camera, WP system – ELPWP10, Wall mount, Wireless LAN unit, Wireless transmitter – ELPWT01
Speakers: 16 W
Package contents: Power cable, Remote control incl. battery
Room/Application Type: Conference room / classroom
Location: Ceiling installation, Tabletop, Wall installation
Color: White
Warranty: 60 months with the supplier or 12.000 h
TECHNICAL SPECIFICATIONS
TECHNOLOGY
Projection system: 3LCD technology, RGB with liquid crystal shutter
LCD panel: 0.59 inches with C2 Fine
Color light output: 4.100 lumens- 2.800 lumens (economic) in accordance with the IDMS15 standard.4
White light output: 4.100 lumens - 2.800 lumens (economic) In accordance with ISO 21118:2020
Resolution: WXGA
High Definition (HD): HD ready
Aspect Ratio: 16 : 10
Contrast Ratio: Over 2.500.000 : 1
Light source: Laser
Light source: 20.000 Durability High Watches, 30.000 Hours Durability Eco
Keystone Correction: Manual Vertical: ± 3 °, Manual Horizontal ± 3 °
Video Editing: 10 bits
2D Vertical Refresh Rate: 100 Hz - 120 Hz
Color Reproduction: up to 1.07 billion colors
OPTICS
Projection Ratio: 0.27 - 0.37:1
Zoom: Digital, factor: 1 - 1.35
Lens: Optics
Projected Image Diagonal: 60 inches - 150 inches
Projection Lens Aperture: 1.6
Focal Length: 3.7 mm
Focus: Manual
Shift: 6 : 1
CONTROL UNIT CONNECTION OPTIONS
Interface: USB 2.0-A (2x), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), wireless LAN IEEE 802.11a/b/g/n/ac (WiFi 5), VGA input (2x), VGA output, HDMI input (3x), composite input, Miracast, audio output, stereo mini-jack connector, audio input (3x), USB 2.0 type B (service only), Wi-Fi Direct, microphone input
Smart device connection: Ad-hoc / infrastructure
Network protocol: HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink
ADVANCED FEATURES
Security: Kensington lock, Control panel lock, Padlock hole, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection
Features and Functions: A/V mute, Arc Correction Technology, Auto power on, Auto source search, Built-in speaker, CEC standard compatible, Customizable user logo, Digital zoom, Direct power on/off function, Document camera compatible, Email notification, Home screen, Horizontal and vertical keystone correction, Image shift, JPEG viewer, Long light source life, Network projection, OSD menu copy function, PC-free, Power on button, Quick Corner, Scheduling function, Screen mirroring, Extra wide image (16:6), Web control, Remote control via web, Wireless LAN compatible, iProjection app
Color Modes: Blackboard, Cinema, Dynamic, Presentation, sRGB
Projector Control: via: Crestron Integrated Partner, Crestron RoomView, Extron IP Link, AMX Device Discovery, Control4 Simple Device Discovery Protocol
GENERAL INFORMATION
Heat Dissipation: 895 BTU/hour (max)
Power Supply: AC 100 V - 240 V, 50 Hz - 60 Hz
Product Dimensions: 356? x 395 x 133 mm (width x depth x height)
Product weight: 5.9 kg
Max. noise level: Normal mode: 37 dB (A) - Eco mode: 27 dB (A)
Temperature: Storage -10° C - 60° C
Humidity: Operation 20% - 80%, Storage 10% - 90%
Included software: EasyMP Multi PC Projection, Epson Projector Content Manager Software, Epson Projector Management
Accessories: Air filter, Ceiling mount, Connection and control unit, External speaker, Security cable set, Visualizer camera, WP system – ELPWP10, Wall mount, Wireless LAN unit, Wireless transmitter – ELPWT01
Speakers: 16 W
Package contents: Power cable, Remote control incl. battery
Room/Application Type: Conference room / classroom
Location: Ceiling installation, Tabletop, Wall installation
Color: White
Warranty: 60 months with the supplier or 12.000 h
