Product description EH-LS800B/3LCD/4000lm/4K UHD/HDMI/WiFi
| Image format | Widescreen - 16:9 |
| USB connector | Yes |
| HDMI connector | Yes |
| Repro | Yes |
| Power consumption (W) | 350 |
| VGA output | No |
| DVI output | No |
| RJ45 connector | No |
| Bluetooth | Yes |
| Exact weight (kg) | 12,3 |
| HDMI (quantity) | 3 pcs |
| 3.5 mm audio jack | Yes |
| Brand and model | EH-LS800B |
| Technology | 3LCD |
| Precise brightness (ANSI) | 4000 |
| Brightness (ANSI) | from 3,100 to 4,100 |
| Contrast | over 10,000:1 |
| Native resolution | 3840 x 2160 (4K UHD) |
| Supported resolution (max) | 3840x2160 (Ultra HD, 4K) |
| Home theater projector | Yes |
| Projector for the office | No |
| Projector for school | No |
| Max. screen size (inches) | 150" |
| Exact lamp life in ECO (hours) | 20000 |
| Lamp life in ECO (hours) | over 10,000 |
| Wi-Fi | Yes |
| Weight (kg) | over 5 |
| Noise level (dB, normal operation) | 32 |
| Short projection | Ultra-short distance |
| Autofocus | No |
| Remote control | Yes |
| WWW_MORE_DETAILED_SCRIPT | Description + Epson logo |
| Color | Black |
| Location | Table |

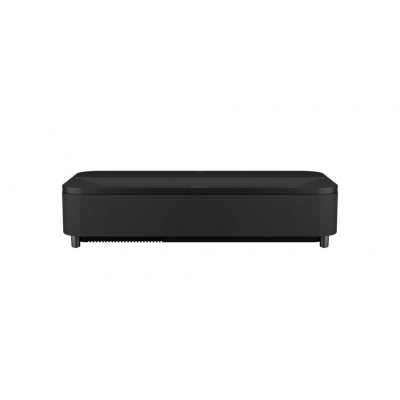

This smart laser TV projector, capable of projecting 4K PRO-UHD1 up to a 150-inch diagonal, is part of the new EpiqVision Ultra series and is equipped with an Android TV™ system and YAMAHA-branded audio.
Technical Specifications
Technology
Projection System: 3LCD Technology, RGB with liquid crystal shutter
LCD Panel: 0.62 inches with C2 Fine
Color Light Output: 4.000 lumens- 2.000 lumens (economic) in accordance with the IDMS15 standard.4
White light output: 4.000 lumens - 2.000 lumens (economic) In accordance with ISO 21118:2020
Resolution: 4K PRO-UHD
High Definition (HD): 4K Technology
Aspect Ratio: 16 : 9
Contrast Ratio: 2.500.000 : 1
Light source: Laser
Light source: 20.000 Hours Durability High, 20.000 Hours Durability Medium, 20.000 Hours Durability Eco
Video Editing: 10 bits
2D Vertical Refresh Rate: 192 Hz - 240 Hz
Color Reproduction: up to 1.07 billion colors
Optics
Projection Ratio: 0.16 - 0.40:1
Zoom: Digital, factor: 1 - 2.5
Projection Lens Zoom Ratio: 0.28 - 0.54 : 1
Lens: Optics
Projected Image Diagonal: 80 inches - 150 inches
Projection Distance - Wide: 0.3 m - 0.5 m (150 inches display)
Projection Distance - Tele: 0.3 m - 0.5 m (60 inches display)
Projection Lens Aperture: 1.8
Focal Length: 2.3 mm
Focus: Manual
Shift: 7 : 1
Control Unit Connectivity Options
Interface: USB 2.0-A (3x), USB 2.0 type B (service only), wireless LAN IEEE 802.11a/b/g/n/ac (WiFi 5), audio output, stereo mini-jack connector, Bluetooth, HDMI ARC, HDMI (HDCP 2.3) (3x)
Android TV: Yes
Smart device connection: Ad-hoc / infrastructure
Advanced features
Security: Kensington lock, Security cable slot
3D: No
2D color modes: Dynamic, natural, cinema, vivid
Features and properties: 4K technology, Android TV, auto power on, auto source search, built-in speaker, Chromecast, digital zoom, frame interpolation, long light source life, Quick Corner, Yamaha sound technology
Color modes: Cinema, dynamic, natural, vivid
General information
Power consumption: 350 W, 217 W (economical), 2 W (standby mode)
Heat dissipation: 1.139 BTU/hour (max)
Power Supply: AC 100 V - 240 V, 50 Hz - 60 Hz
Product Dimensions: 695? x 341 x 156 mm (width x depth x height)
Product weight: 12.3 kg
Max. noise level: Normal mode: 32 dB (A) - eco mode: 19 dB (A)
Temperature: storage -10° C - 60° C
Humidity: Operation 20% - 80%, storage 10% - 90%
Accessories: Air filter, ceiling mount, hanging adapter
Speakers: 20 W, Stereo: Stereo
Package contents: Power cable, remote control incl. battery, user guide, warranty document
Room/Application Type: 4K gaming, 4K streaming, home theater, sports, TV, and set-top boxes
Placement: Ceiling installation, tabletop, TV stand
Color: Black
Others
Warranty: 60 months with the supplier or 12.000 h
