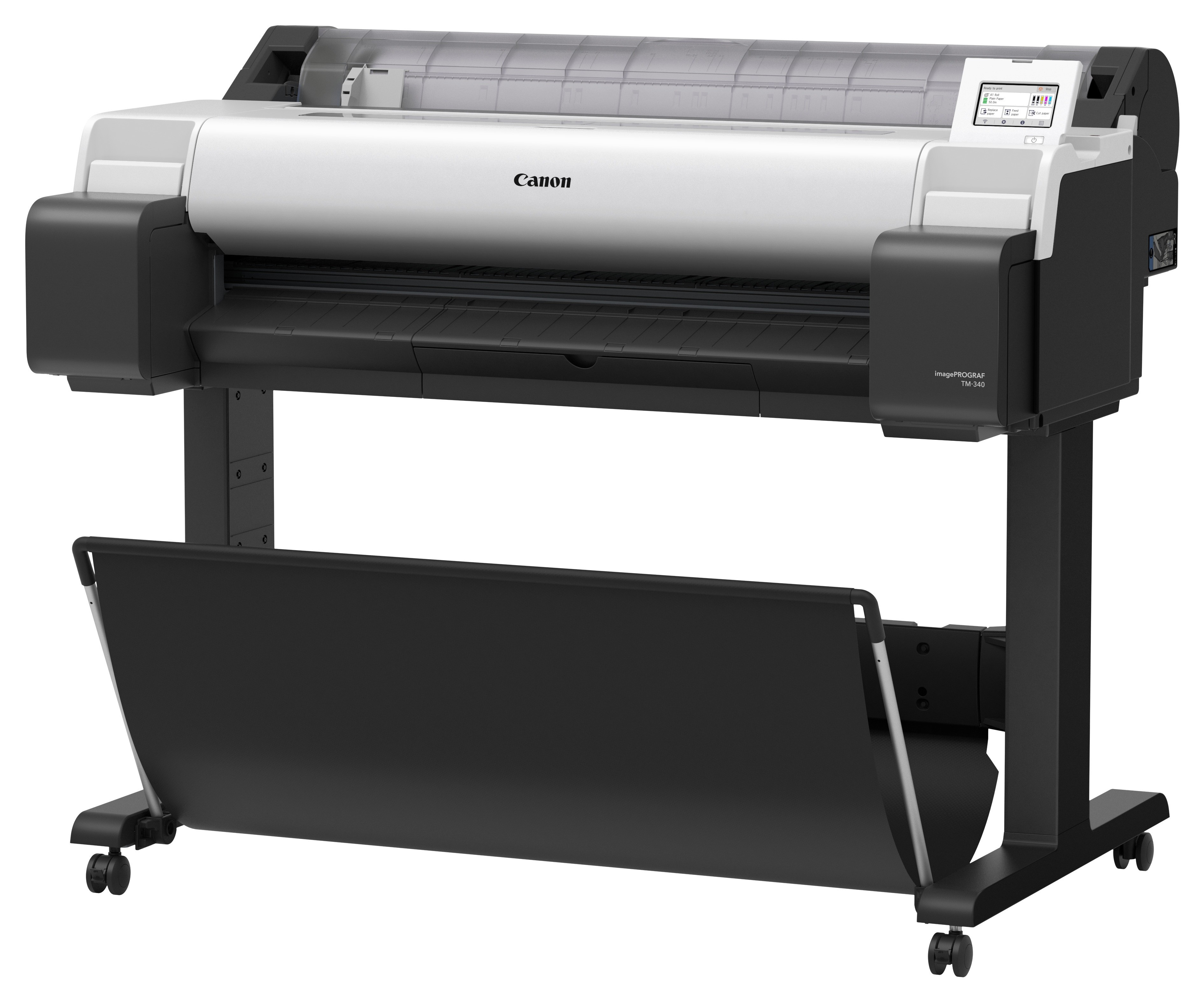

Canon imagePROGRAF TM-340 6248C003 inkjet large-format printer

Product description

Achieve a new level of printing performance with the sustainable 36" imagePROGRAF TM-340 printer, which offers quieter operation, more intuitive features, and outstanding image quality for AEC offices, retail, and education.

Detailed Specifications

Printer Technology

Printer type: 36 inches, 5 colors
Printing technology: Canon Bubblejet on Demand inkjet printing, 6 colors, integrated type (6 chips per print head × 1 print head)
Print resolution: 2,400 × 1,200 dpi
Number of nozzles: Total: 15,360 nozzles MBK: 5,120 nozzles BK, C, M, Y: each with 2,560 nozzles
Line accuracy: ±0.1% or less
Nozzle position: 1,200 dpi × 2 lines
Ink droplet size: Minimum 5 pl per color
Ink tank capacity: Starter ink: 300 ml (80 ml for MBK, 4× 55 ml for BK, C, M, Y), sales ink: 55 ml (MBK, BK, C, M, Y)

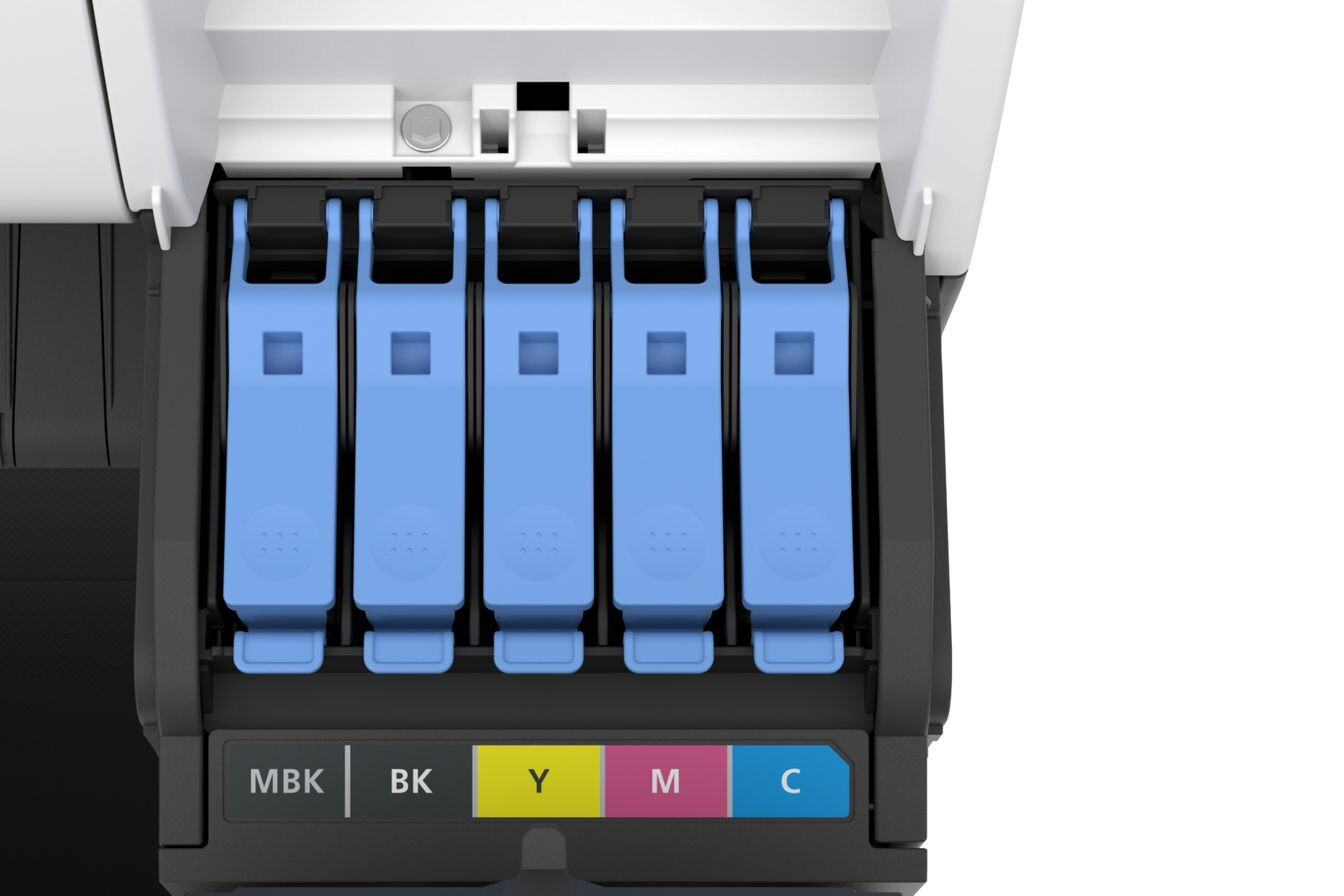

Ink type: Pigment inks: 5 colors MBK / BK / C / M / Y

Compatibility with operating systems:

32-bit versions: Windows 7, Windows 8.

1, Windows 10
64-bit versions: Windows 7, Windows 8.1, Windows 10, Windows 11, Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022
Apple Macintosh: macOS 10.15.7 to macOS 13

Standard Interface:
USB A Port: not available
USB Type B Port: high-speed USB
Ethernet: IEEE802.3ab(1000base-T), IEEE802.3u(100BASE-TX)/IEEE802.3 (10BASE-T)
Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b

Memory

Standard memory: 2 GB
Expansion slot: no
Hard drive: Not available

Print speed

CAD Drawings
Standard Paper (A1)
0:21 (fast economical) 2.7 pages./min
Plain paper (A0)
0:41 (fast economic)
0:42 (fast mode)
1:25 (standard)

Posters
Standard paper (A0)
0:43 (fast economic)
0:43 (fast)
1:25 (standard)
Heavy coated paper (A0)
1:42 (fast)
3:10 (standard)

Media Work

Media Feeding and Output:
Roll paper: one roll, top loading, front output
Cut sheets: top loading, front output (manual feeding using a media locking lever)

Media width:
Paper roll: 203.2 to 917 mm
Cut sheets: 210 to 917 mm

Media thickness: Roll/sheets: 0.07–0.8 mm

Maximum media roll diameter: 150 mm
Core size of the roll: Inner core diameter: 2"/3" (optional)

Power and Operational Requirements

Power Supply: 100 to 240 V AC (50–60 Hz)

Dimensions and weight:

Physical dimensions and weight (W x D x H):
Main unit with stand
1,285 × 868 × 1,060 mm (control panel not tilted up/open basket)
1,285 × 756 × 1,060 mm (control panel not tilted up/closed basket)
59.2 kg (including roll holder set, without ink and print head)

Package dimensions and weight: Printer (main unit with stand and pallet): 1,462 × 912 × 801 mm, 100 kg

Package Contents: Printer, printer stand, 1 print head, power cable, 1 set of basic ink tanks, installation guide, safety/environmental standards leaflet, address list for large format printing in Europe, information sheet with important instructions, basic guide for setting up the printer stand, notice about PosterArtist WEB software

Options

Optional items:
Roll holder 2/3": RH2-35
IC card reader holder: RA-02

Consumables

Ink tank: M: PFI-031 (55 ml), MBK/BK/C/Y: PFI-030 (55 ml)
Print head: PF-06
Cutter blade: CT-08
Waste ink tank: MC-31
