DETAILED SPECIFICATIONS
GENERAL SPECIFICATIONS

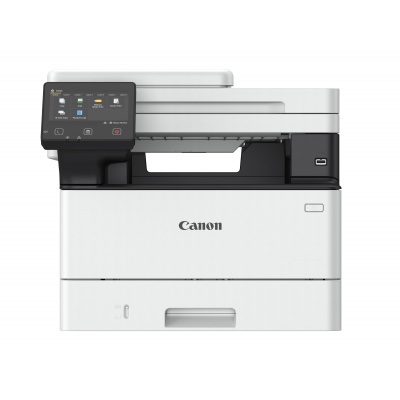

Device type: Black and white laser multifunction device
Available functions: Print, copy, scan and fax
PRINTING SPECIFICATIONS
Print speed:
Single-sided: up to 40 ppm (A4), up to 65.4 ppm (A5 - landscape)
Duplex: up to 33.6 ipm (A4)
Printing method: Black and white laser beam printing
Print resolution: Up to 1200 x 1200 dpi
Warm-up time: Approx. 14 seconds or less from power on
Toner Save Mode: Yes
Advanced printing features:
Encrypted secure printing
Secure printing
Print from USB memory device (JPEG/TIFF/PDF)
Print from the cloud (Dropbox, Google Drive, OneDrive) (PDF/JPEG)
Microsoft Universal Print
iOS: AirPrint, Canon PRINT Business app
Android: certification for Mopria technology, Canon PRINT Business app, Canon Print Service plug-in
COPYING SPECIFICATIONS
Copy speed:
Single-sided (A4): up to 40 ppm
Duplex (A4): up to 33.6 ipm
Time to print first copy: Approx. 6.1 seconds or less
Copy resolution: Up to 600 x 600 dpi
Copy Modes: Text, Text/Photo (Default), Text/Photo (High Quality), Photo
2-Sided Copying: 2-sided to 2-sided (automatic)
Multiple copies: Up to 999 copies
SPECIFICATIONS FOR SCANNING
Standard Type: Color
Scan resolution:
Optical: up to 600 x 600 dpi
Extended: up to 9600 x 9600 dpi
Color scan depth: 24-bit / 24-bit (input/output)
Grayscale: 256 levels
Compatibility: TWAIN, WIA, ICA
Maximum scanning width: 216 mm
FAX SPECIFICATIONS
Modem speed: 33.6 kbps (up to 3 seconds/page)
Receive mode: Fax only, automatic fax/telephone switching, answering machine mode, manual
Fax Resolution:
Standard: 200 x 100 dpi
Fine: 200 x 200 dpi
Very fine: 200 x 400 dpi
Ultra fine: 400 x 400 dpi
Fax memory: Up to 512 pages
Quick Picks: Up to 281 picks
Group presets / recipients: Maximum 299 presets / maximum 299 recipients
Sequential broadcast: Maximum 310 recipients
Memory backup: Permanent fax memory backup (Flash memory backup)
Duplex Faxing: Yes (send and receive)
Additional Features: Sender Name (TTI), Direct Send, Broadcast Report, Sequential Broadcast
WORKING WITH THE MEDIA
Scanner type: Scanner glass, two-sided automatic document feeder (single pass)
Paper input (default):
Tray for 250 sheets
Multi-purpose tray with a capacity of 100 sheets
Automatic document feeder for 50 sheets
Paper input (optional): 550-sheet tray
Maximum paper input capacity: 900 sheets
Paper output: 150 sheets
Media Types: Plain Paper, Recycled Paper, Thick Paper, Thin Paper, Label, Postcard, Envelope
Media sizes:
Magazine (standard and optional):
A4, A5, A5 (Landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Custom Sizes: Min 105 x 148mm to Max 216.0 x 355.6 mm.
Media weights:
Tray (standard and optional): 60 to 120 g/m2
Multipurpose tray: 60 to 199 g/m2
Automatic document feeder: 60 to 120 g/m2
Two-sided printing:
A4, Legal, Letter, OFFICIO, B-OFFICIO, M-OFFICIO, GLGL, Foolscap
User size: 210 x 279.4 mm minimum to 216.0 x 355.6 mm maximum
60 to 120 g/m2
INTERFACE AND SOFTWARE
Interface type: USB 2.0 Hi-Speed, 10BASE-T/100BASE-TX/1000Base-T, Wi-Fi - 802.11b/g/n, wireless direct connection
Operating System Compatibility:
Windows® 11 / Windows® 10 / Server® 2022 / Server® 2019 / Server® 2016 / Server® 2012R2 / Server® 2012
Mac OS X version 10.13 and higher
Linux
GENERAL PROPERTIES
Recommended monthly print volume: 750 to 4,000 pages per month
Work usage: Maximum 80,000 pages per month
Processor speed: 1200 MHz
Memory: 1 GB
Storage: 4GB eMMC
Control panel: Color LCD touch screen with a diagonal of 12.7 cm
Dimensions with compartments (W x D x H): 420 mm x 460 mm x 375 mm
Installation space (W x D x H): 689mm x 1081mm x 824mm
Weight: Approx. 16.3 kg
CONSUMABLES
Cartridges:
Cartridge 070 (3,000 pages) - part of the package
Cartridge 070H (10,200 pages)
ACCESSORIES
Paper Feeder Unit AH1 (550-sheet tray)
