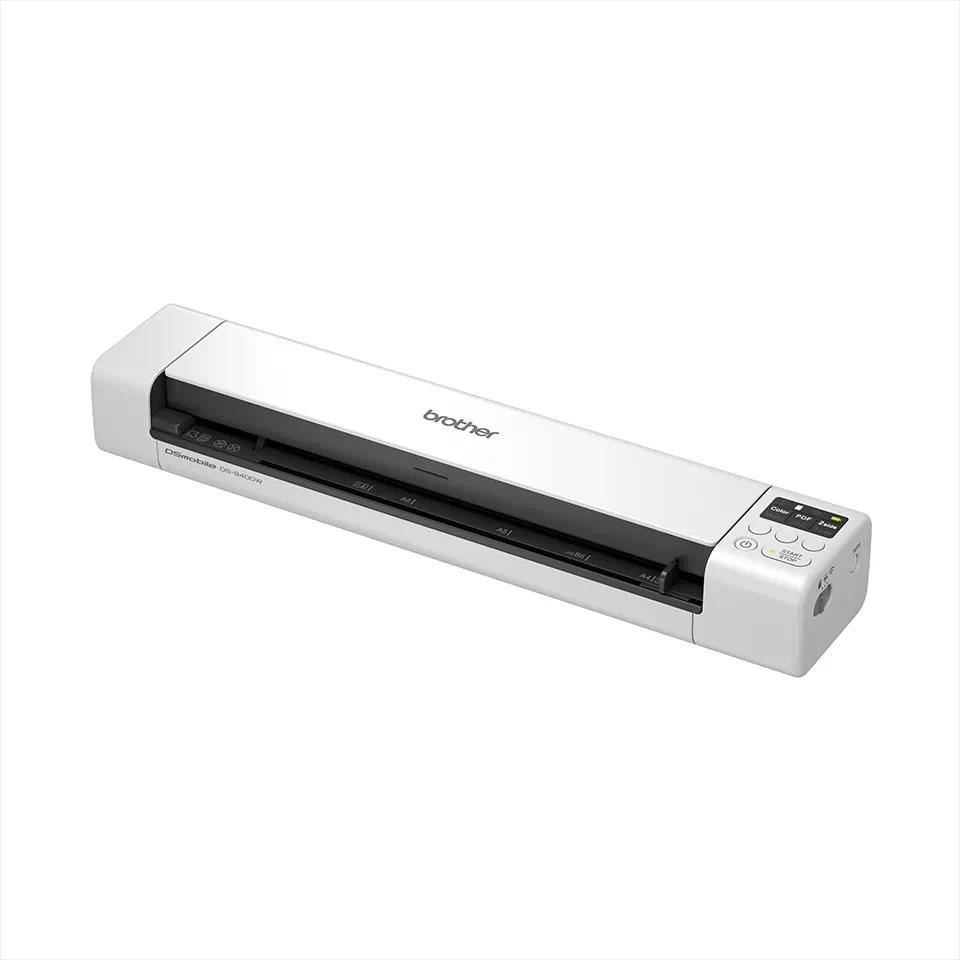

Brother DS-940W DS940DWTK1 scanner

Product description

Comfortable and Space-Saving

The DS-940DW is small and compact, ideal for places with limited space. With the unique "U-path" paper feeder, you don't need additional space behind the scanner; after scanning the document, the paper slides over the top of the scanner and returns back.

Scan Anywhere

The Portable Scanner DS-940DW has a built-in battery, allowing you to enjoy document scanning without the need for a power connection.

Simply take the scanner with you and scan wherever you need.

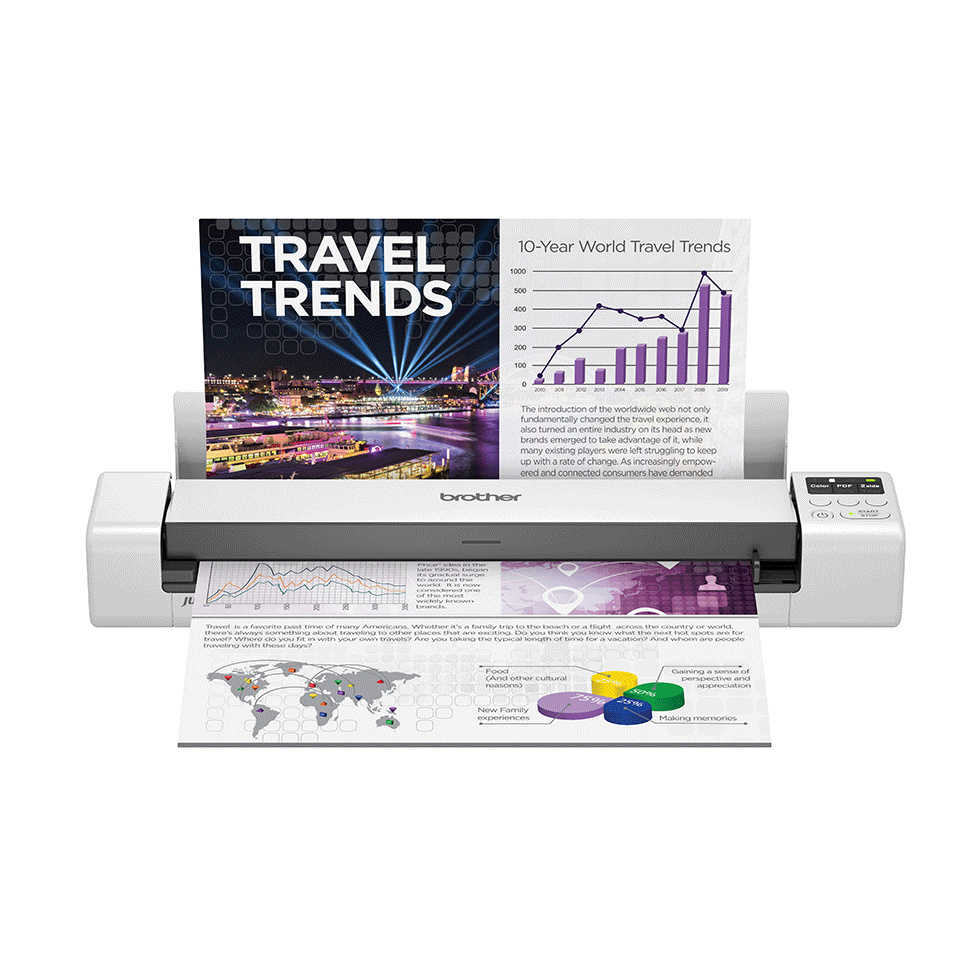

Combined Media, High-Quality Results

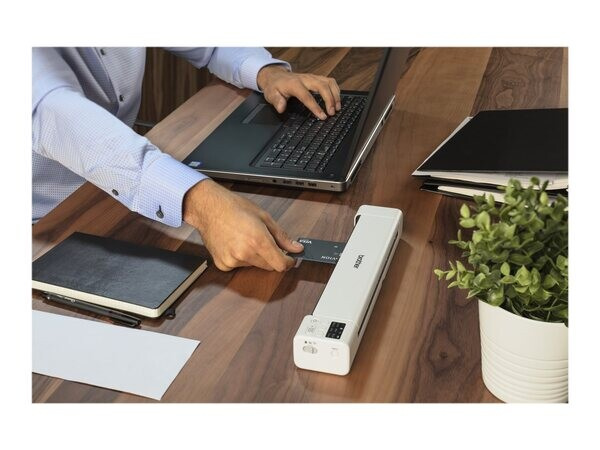

The DS-940DW device scans a wide range of documents. For A4 format, ID cards, and receipts.

Thanks to the built-in roller system, documents pass through smoothly, ensuring high-quality transfer of digital files.

Effortless Organization

With the free Brother mobile app, viewing and sharing documents on your mobile phone or tablet is effortless. The intuitive LCD panel makes it easy to select and change scanning functions.

Key Features

• Automatic double-sided scanning A4 up to 15 pages per minute
• "U-path" paper feeding system saves space
• Top-notch software for scanning documents and ID cards
• Powered directly from USB port
• Built-in rechargeable battery and card reader
• Connection to wireless network or Brother mobile app

Features and Specifications

General

• Type mobile
• Lithium battery
• Control panel LED display, keys

Connectivity options

• USB interface Super Speed micro USB 3.0 Type B
• Wi-Fi Direct yes
• Wireless network interface Wi-Fi WLAN IEEE 802.11b/g/n (Infrastructure Mode) IEEE 802.11g (Wi-Fi connection)

Dimensions and weight

• Package dimensions 377 w x 162 d x 76 h mm
• Package weight 1109g
• Device dimensions 319 w x 63.1 h x 45.4 in mm
• Device weight 699 g



Types of Media

• Types and Sizes Media Size - single width 50.8 - 215.9 mm, length 86.4 - 1828.8 mm, ("U-path" width 74 - 215.9 mm, length 105 - 297 mm), card width 85.6 length 53.98 mm, card thickness with embossed text 1.24 mm, plastic card thickness 1 mm, width 74 - 79.38 mm length 105 - 355.6 mm
• Weights 35 - 270 gsm, "U-path" 52 - 80 gsm

Network

• IPv4 yes
• IPv6 yes
• Network protocols DHCP, APIPA (Auto IP), WINS/NetBIOS, DNS Resolver, mDNS, SNMPv1/v2c, ICMP, Web Services(Scan), HTTP/HTTPS server, LLMNR responder, SNTP Client
• Wireless network Wi-Fi IEEE 802.
11 b/g/n
• Wireless network security WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES)

Operating systems and programs

• Delivered programs for Mac OS X iPS for macOS, Remote Setup, NewSoft® Presto!® BizCard 7
• Supplied programs for Windows iPS for Windows PC, Nuance® PaperPort SE 14, Kofax Power PDF Standard v3, Remote Setup, NewSoft® Presto!® BizCard 6

Scanning

• Duplex scanning yes
• A4 scan speed Color and black and white 15 pages./min., (A4 300dpi)
• Colour Duplex Scanning Speed 30 pages./min., (A4 300dpi)
• Scanning to Email, OCR, file, image, and microSD
• Grayscale 256 levels
• Scanning resolution (interpolated) 1200 x 1200 dpi

Consumables and accessories

• Optional accessory Carrier sheet (CSA-3401)

Included in the package

• Other Scanner DSmobile DS-940DW, Micro USB cable, warranty card, quick setup guide, product safety guide

Warranty

• Warranty 24 months
