ASUS PN ExpertCenter PN53-S5168AD Mini 90MS02H1-M00590 Mini PC, R5-7535HS, 16GB, 512GB SSD, AMD int, W11P EDU, 3R
Images are for illustration purposes only.
Parameters
Manufacturer:
AMD
CPU Type:
AMD Ryzen 5
CPU Generation:
AMD 7000 Series
Exact model:
R5-7535HS
BasicCPU core frequency (GHz):
3,3
Number of cores:
6
Model intended for schools:
Yes
Exact capacity (GB):
512GB
VESA standard:
Yes
DisplayPort connector:
Yes
Number of pieces:
1
HDMI connector:
Yes
Power supply output (W):
150
Memory - size (GB):
16
Memory type:
DDR5
Memory dimensions:
SODIMM
Memory - total number of slots:
2
Disk - type:
SSD
Optical mechanics:
No
Card reader:
No
Graphics card:
integrated
Thunderbolt 3 (compatible):
Yes
eSATA:
No
VGA output:
No
DVI output:
No
Mini/Micro HDMI output:
No
Mini DisplayPort output:
No
Serial port:
No
RJ45 connector:
Yes
Bluetooth:
Yes
Wi-Fi:
Yes
TPM 2.0:
Yes
Execution:
Mini PC
SSD type:
M.2 2280
SSD interface:
PCI-Express NVMe
Operating system:
Windows 11 Pro Education
Ethernet:
2.5 Gbps
Number of LAN ports:
1
Keyboard:
No
Mouse:
No
USB 2.0 (front):
0 pcs
USB 3.x (front):
2 pcs
USB 3.x Type-C (front):
0 pcs
USB 4 / Thunderbolt 4 (front):
1 pc
USB 2.0 (rear):
0 pcs
USB 3.x (rear):
3 pcs
USB 3.x Type-C (rear):
1 pc
USB 4 / Thunderbolt 4 (rear):
0 pcs
HDMI (quantity):
2 pcs
mini/micro HDMI (quantity):
0 pcs
DVI (quantity):
0 pcs
VGA (quantity):
0 pcs
PS/2 (rear):
0 pcs
3.5 mm audio jack:
Yes
GPU model series:
AMD Radeon 660M Graphics
Max.CPU core frequency (GHz):
4,55
CPU with AI support:
No
Bluetooth version:
05.II
Wi-Fi standard:
Wi-Fi 6E 802.11ax
Color:
Black
NPU - number of TOPs:
Not supported
Product description
ASUS ExpertCenter PN53* model designed for schools
* support for four 4K monitors
* reliability 24/7
Operating System: Windows 11 Pro EDU (note, only school OS license)
Processor: AMD Ryzen 5 7535HS (6 cores, 12 threads, 3.3/4.55 GHz, 16 MB cache)
Memory: 16GB DDR5 SO-DIMM
Number of slots: 2x DDR5 SO-DIMM
Maximum memory size: max 64GB
Hard Drive: 512GB NVMe™ SSD
Internal drive bays: 2x M.2 SSD + 1x 2.5" HDD
Optical Drive: No
Card Reader: No
Graphics Card: Integrated AMD Radeon 660M
Audio: Realtek® ALC3251 HD Audio CODEC
Network: 10/100/1000/2500Mb/s, 2.5G LAN
Wireless Communication: WLAN + Bluetooth (Intel® Wi-Fi 6E + Bluetooth® 5.2)
Power Supply: external power adapter 150W

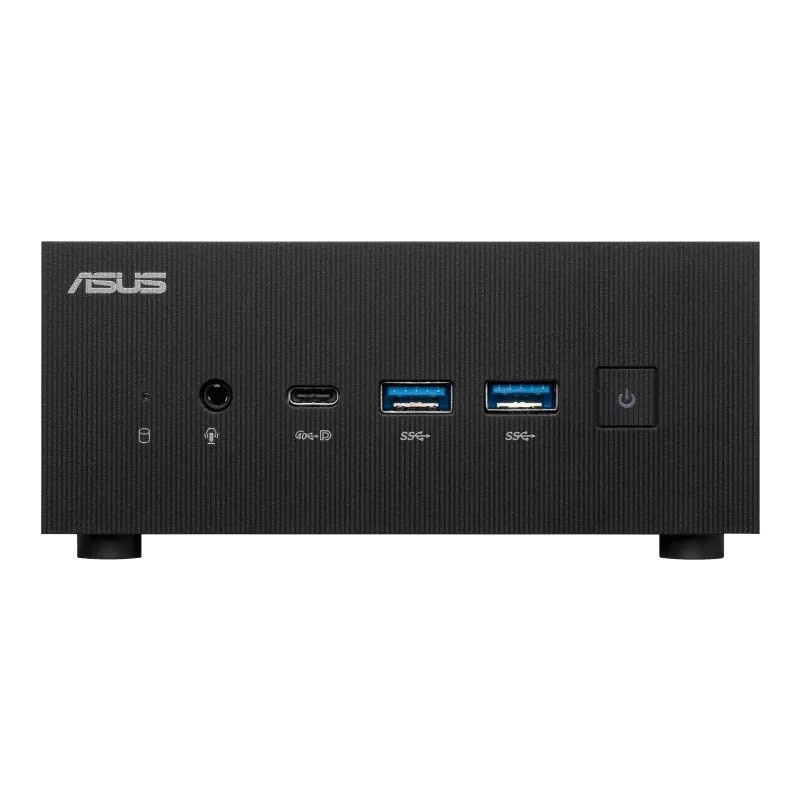

Front/Side Ports:
* 1x USB 4 Type-C (with DP output)
* 2x USB 3.2 Gen1 type-A
* 1x audio jack (microphone/headphone connector)
* 1x Kensington lock

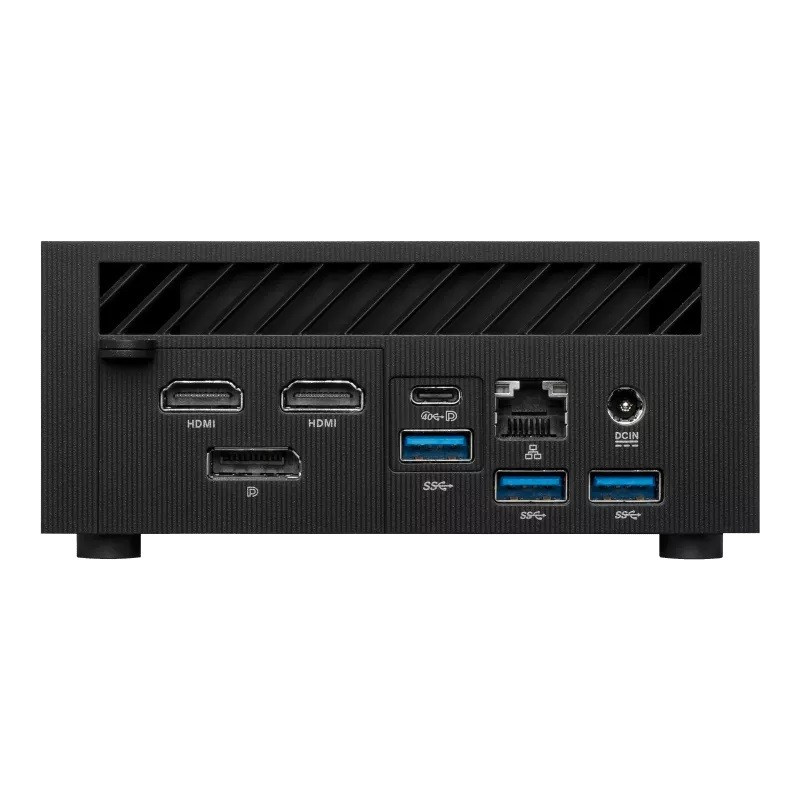

Rear ports:
* 1x USB 3.2 Gen2 type-C (with DP1 output.4)
* 3x USB 3.2 Gen2 type-A
* 2x HDMI 2.1 (up to 4K @ 60 Hz)
* 1x DisplayPort 1.4
* 1x 2.5G RJ45 LAN
* 1x DC-in
* 1x Pad-lock ring
Color: black
Dimensions: 130x120x58mm
Weight: 750g
Accessories:
* power adapter
* power cable
* screw set
* user manual
* warranty card
* VESA mount
Warranty: 3 years
Tested compatible memories are listed on the manufacturer's website
