Product description ASUS PA32UCX-PK 90LM03HC-B01370 Monitor, 32", WLED
| Method of use | Professional graphics |
| Diagonal (") | 32 |
| Point spacing (mm) | 0,1845 |
| Image format | Widescreen - 16:9 |
| Screen type | LCD IPS/PLS/WVA |
| Brightness (cd/m2) | 600 |
| Brightness (cd/m2) - range | 501 - 1000 |
| Contrast (static) | 1 000:1 |
| Response time (ms) | 5 |
| Resolution | 3840x2160 (Ultra HD, 4K) |
| Resolution - standard | 4K |
| Viewing angle ver./ hor. | 178/178 |
| Color depth | 1.07 billion |
| VESA standard | Yes |
| VESA mounting dimensions | 100 x 100 |
| DisplayPort connector | Yes |
| DP number | 1 |
| USB connector | Yes |
| USB-C connector | Yes |
| HDMI connector | Yes |
| HDMI version | Version 2.0 |
| Dimensions (WxHxD mm) | 727 x 426 x 93 |
| Weight range (kg) | from 5,1 to 10 kg |
| Wall mounting | Yes |
| Speakers | Yes |
| Pivot | Yes |
| Height-adjustable stand | Yes |
| PIP (Picture in Picture) | Yes |
| Energy efficiency class | G |
| Záruka | 3 Roky |
| Exact weight (kg) | 9,7 |
| Total power [W] | 6 |
| Barva | Černá |
* Flicker free
* HDR
* Picture-in-Picture
* Picture-by-Picture
* Low Blue Light
Screen Type: IPS
Backlight: mini LED backlight
Diagonal [inches]: Wide Screen 32” (81.28cm)
Resolution: 3840 x 2160
Dot pitch [mm]: 0.1845 mm
Aspect Ratio: 16:9
Display Surface: Non-glare
Brightness [cd/m2]: 600 (Typical)/1200 (Peak)
Contrast: 1000:1
Response Time [ms]: 5ms (Gray to Gray)
Viewing Angles (Horizontal/Vertical): 178°(H)/178°(V)
Number of Colors: 1073.7M (10bit)
Speakers: 3W x 2 Stereo RMS
Connectors:
*Signal Input: Thunderbolt™ 3 USB-C™ x2 (In x1, Out x1), HDMI(v2.0b) x3, DisplayPort 1.2
*Earphone jack: 3.5mm Mini-Jack
*USB downstream: USB3.0 Type-A x3
Power Supply: 100-240V, 50/60 Hz
Power On (Typical): < 58.67 W
Wall Mount: VESA 100 x 100 mm
Monitor Tilt:
*Tilt: -5°~+23°
*Swivel: -60°~+60°
*Pivot: -90°~+90°
*Height Adjustable: 0~130 mm
Color: black
Dimensions (with stand, WxHxD mm): 727 x (470 – 600) x 240 mm
Dimensions (without stand, WxHxD mm): 727 x 426 x 93 mm
Weight [kg]: 9.7 kg
Warranty: 36 months.
https://www.Asus.com/Monitors/ProArt-Display-PA32UCX-PK/overview/
ProArt PA32UCX
ASUS
4K HDR Mini LED Professional Monitor - 32-inch, 4K, Dolby Vision, HDR-10, HLG, Mini LED Backlight, 1152 zones of local dimming, Delta-E < 1, DCI-P3, hardware calibration, USB-C,
- 32 inches, mini LED backlight with 4K HDR, 1152 zones of local dimming
- True 10-bit color with Quantum-dot technology provides 99% DCI-P3, 99.5% Adobe RGB, 100% sRGB, and 89% Rec. 2020 color space for exceptional color fidelity
- Support for multiple HDR formats (Dolby Vision, HDR-10, HLG) means a realistic experience and flexibility
- Top-notch color performance Delta-E <1 and ASUS ProArt Hardware Calibration technology for optimizing color accuracy, uniformity, and color profile writing
- USB-C supports data transfer speeds of up to 40 Gb/s and provides up to 60 W of power for external devices
Become masters of HDR projects
ASUS ProArt PA32UCX is aimed at demanding content creators including video editors, cinematographers, and colorists who seek the best display for their workflows. ASUS ProArt PA32UCX is the world's first 32-inch 4K HDR monitor with a peak brightness of 1.200 nits and mini-LED backlighting, which allows 1.152 local dimming zones and support for multiple HDR formats, including Dolby Vision™, HLG, and HDR-10. The impressive PA32UCX panel reproduces the brightest whites and the darkest blacks with sharper and more detailed visual elements. Thanks to true 10-bit color and Quantum Dot technology, support for DCI-P3, Rec. 709, Rec. With its 2020 color space and Adobe RGB, along with a rich selection of connectivity options, the PA32UCX is ready for any studio work project.
Mini LED
1152 local dimming zones
4K HDR
Dolby Vision, HDR-10, HLG
1200nits
peak brightness
99%
DCI-P3
1 Million:1
Native contrast ratio
Delta E < 1
Top-notch color accuracy
World's Number One 32-inch 4K Monitor with Mini LED Backlighting
The ASUS ProArt PA32UCX 4K monitor offers cutting-edge technology with mini LED backlighting, enabled by physically half-sized LEDs compared to conventional monitors, thereby increasing the granularity of brightness control. The ProArt PA32UCX offers individual backlight control in an incredible 1,152 zones with higher brightness and deeper dark shades to achieve the best contrast and accurate HDR content reproduction.
ASUS Smart HDR Technology
The ASUS ProArt PA32UCX is equipped with ASUS Smart HDR technology, which supports multiple HDR (high dynamic range) formats and several PQ curves to meet the specific requirements of content creators. Dolby Vision HDR transforms your viewing experience through ultra-vivid picture quality, offering incredible brightness, contrast, and colors, thereby expanding the expressive possibilities for content creators. This amazing image quality is achieved using HDR technology inspired by the field of cinematography, which can provide billions of colors. HDR-10 support ensures compatibility with existing streaming video services and a growing list of games supporting HDR, including PQ hard clip curve, PQ Optimized, and PQ Basic, covering the needs of all content creators. The HLG (hybrid log gamma) preset on the PA32UCX allows users to create content for broadcast and satellite television platforms such as BBC iPlayer, Japan's NHK TV, and DirecTV.
Multiple PQ Curves
ASUS ProArt PA32UCX supports multiple HDR-10 (high dynamic range) curves, including PQ Hard Clip, PQ Optimized, and PQ Basic, which cover the needs of all content creators.
PQ Hard Clip
Select the PQ curve until the maximum brightness is displayed with perfect accuracy. Any brightness higher than the display's maximum will be mapped to display exactly its maximum.
PQ Optimized
Reproduces accurate gradations corresponding to the maximum brightness of the monitor. Provides optimized HDR performance for this display.
PQ Basic
Represents standard HDR performance.
Transform Your Viewing Experience
True 10-bit IPS with a maximum brightness of 1.200 nits, supporting Quantum Dot technology, offers a full range of colors for you to play with. PA32UCX supports 99% DCI-P3, 99.5% Adobe RGB, 100% sRGB, 100% Rec. 709 and 89% Rec.2020 color spaces for video editing and post-production.
Top-notch color fidelity for truly expressive shades
ProArt PA32UCX is factory pre-calibrated using a new three-step process that ensures industry-leading color fidelity. The display then undergoes rigorous testing using advanced shade tracking technology to ensure smoother color gradation, better uniformity, and high color accuracy with a leading delta-E value of < 1 color differences. Each level of gray is also carefully measured and set to ensure compliance with the exact DICOM standard for medical use.

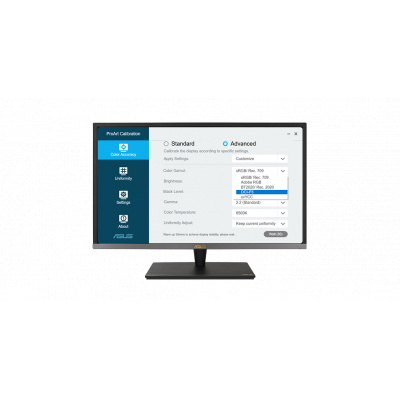

ASUS ProArt™ Calibration Technology
Whether you are using a desktop, laptop, PC, or Mac, ASUS ProArt™ calibration technology offers color accuracy tuning and uniformity compensation – making it easier for you to calibrate brightness and color consistency of the display.
(calibrator is not included in the package)
Compatible with most calibrators
ASUS ProArt™ calibration technology is also compatible with leading major hardware calibrators such as X-rite i1 Display Pro and Datacolor Spyder 5.
Color Accuracy Optimization
ASUS ProArt™ Calibration allows you to optimize color space settings for different content. In addition to sRGB, you can create advanced settings consisting of five different color spaces and other customized settings.
Uniformity Compensation
ASUS ProArt™ calibration offers you 3x3 and 5x5 uniformity compensation matrices to ensure consistent brightness across the screen and reduce color shift.
Saved Color Parameter Profiles
ASUS ProArt™ calibration technology saves all color parameter profiles to the internal scaler IC chip of the ProArt™ monitor instead of the computer. This allows you to connect a monitor to different devices without constantly changing the existing settings. It also reduces signal distortion between the IC and the LCD optical spectrum. Color profiles can be easily activated using a keyboard shortcut on the monitor without a computer or calibrators.
Connect to Your Project
ASUS ProArt PA32UCX comes with HDMI 2.0, DisplayPort1.2, Thunderbolt™ 3 USB-C and USB hub. It is designed for content creators to easily connect to their peripherals and applications, including a Blu-ray player, control panel, peripheral devices, desktop computers, and display.
HDMI (v2.0)
DisplayPort
USB-C
USB-A
Picture in Picture & Picture by Picture
The Picture in Picture (PiP) and Picture by Picture (PbP) functions allow you to display content from multiple sources simultaneously and easily switch between them. You can even choose which audio source to play.
Picture by Picture (PbP) Mode
To use different settings simultaneously, place several input sources side by side on the screen and configure the color settings of each individual window using sRGB, Adobe RGB, DCI-P3, Rec. 2020, User Mode 1 or User Mode 2.
Picture-in-Picture (PiP) Mode
Easily place a second input source into a window in one corner of the display.
Ergonomic Design
With its slim profile and ergonomically designed stand offering tilt, swivel, and height adjustments, a comfortable viewing position can be easily achieved. Its on-screen display even automatically rotates to display correctly when the monitor is used in portrait orientation.
Height Adjustment
0~120 mm
Tilt
-5°~+23°
Pivot Function
-90°~+90°
Rotation
-60°~+60°
Notice:
Description, images, and individual parameters may vary depending on the selected model and configuration.
