ASUS NUC 14 Pro Mini 90AR0062-M000E0 Mini PC, NUC14RVKU7000R2, U7-155H, without RAM, Arc Xe, without OS, 3R
Images are for illustration purposes only.
Parameters
Manufacturer:
INTEL
CPU Type:
Intel Core Ultra 7
CPU Generation:
Intel Ultra 1. generation
Exact model:
u7-155H
BasicCPU core frequency (GHz):
1,4
Number of cores:
16
Exact capacity (GB):
64GB and less
VESA standard:
Yes
DisplayPort connector:
No
HDMI connector:
Yes
Power supply output (W):
120
Memory - size (GB):
without RAM
Memory type:
DDR5
Memory dimensions:
SODIMM
Memory - total number of slots:
2
Memory - number of free slots:
2
Memory - speed:
5600
Disk - type:
Without a disk
Optical mechanics:
No
Card reader:
No
Graphics card:
integrated
Thunderbolt 3 (compatible):
Yes
eSATA:
No
VGA output:
No
DVI output:
No
Mini/Micro HDMI output:
No
Mini DisplayPort output:
No
Serial port:
No
RJ45 connector:
Yes
Bluetooth:
Yes
Wi-Fi:
Yes
Execution:
Mini PC
SSD interface:
PCI-Express NVMe
Operating system:
without an operating system
Ethernet:
2.5 Gbps
Number of LAN ports:
1
USB 2.0 (front):
0 pcs
USB 3.x (front):
2 pcs
USB 3.x Type-C (front):
1 pc
USB 4 / Thunderbolt 4 (front):
0 pcs
USB 2.0 (rear):
1 pc
USB 3.x (rear):
1 pc
USB 3.x Type-C (rear):
0 pcs
USB 4 / Thunderbolt 4 (rear):
2 pcs
HDMI (quantity):
2 pcs
mini/micro HDMI (quantity):
0 pcs
DVI (quantity):
0 pcs
VGA (quantity):
0 pcs
PS/2 (rear):
0 pcs
GPU model series:
Intel Arc/Intel Graphics
Max.CPU core frequency (GHz):
4,8
CPU with AI support:
Yes
Bluetooth version:
05.III
Wi-Fi standard:
Wi-Fi 6E 802.11ax
Color:
Black
NPU - number of TOPs:
not specified
Product description
ASUS NUC 14 Pro Kit (NUC14RVKU7000R2)Operating System: no
Processor: Intel Core Ultra 7 155H (16 cores - 6P + 8E + 2LPE, 22 threads, P-core 1.4/4.8 GHz, E-core 0.9/3.8 GHz, LPE-core 0.7/2.5 GHz, 24 MB cache)
Memory: no
Maximum Memory Size: 96GB (2x 48GB)
Memory Type: DDR5 5600 SO-DIMM
Number of Slots (total/free): 2x SO-DIMM (2/2)
Hard Drive: no
Internal Drive Bay: 1x M.2 2280 PCIe Gen4x4 NVMe SSD + 1x M.2 2242 PCIe x4 NVMe SSD
Graphics Card: Integrated Intel Arc 8-cores iGPU
Network: 1x Intel® i226V 2.5G LAN
Wireless Communication: WLAN + Bluetooth (Intel® Wi-Fi 6E AX211, 2x2 and Bluetooth® 5.3)
Power Supply: 120W power adapter

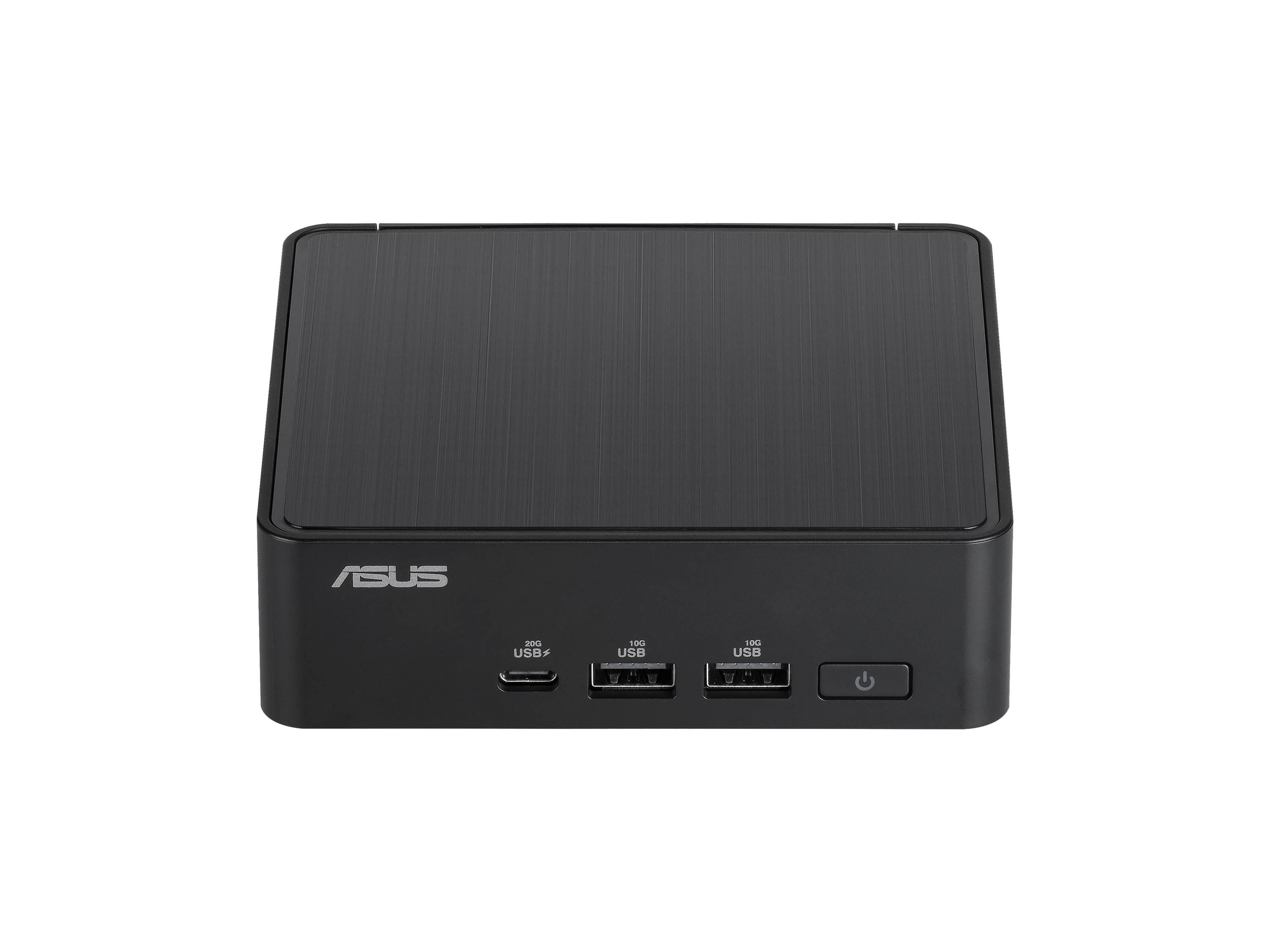

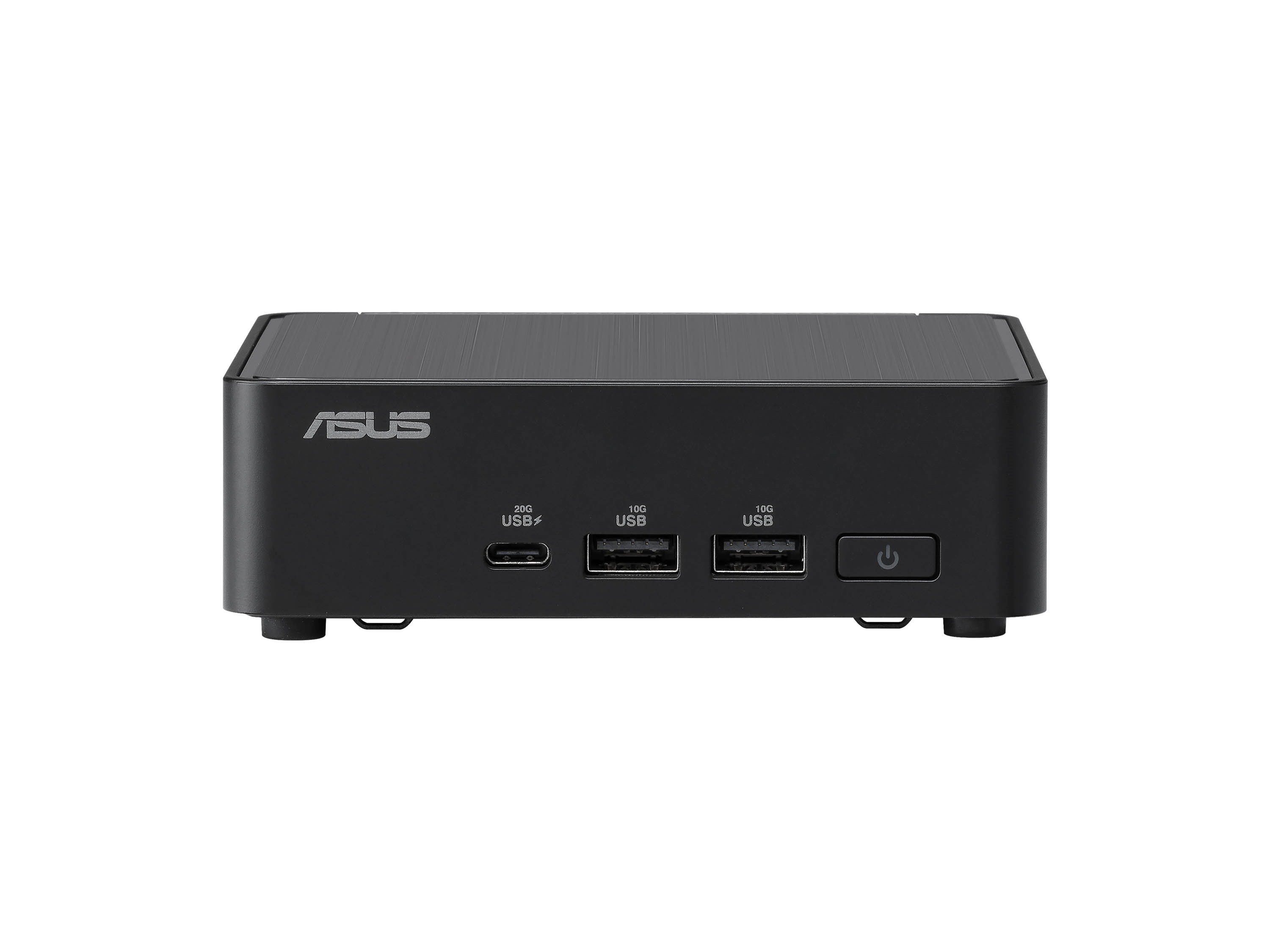

Front and Side Ports:
* 1x USB 3.2 Gen 2x2 Type C
* 2x USB 3.2 Gen 2 type A
* 1x Kensington Lock

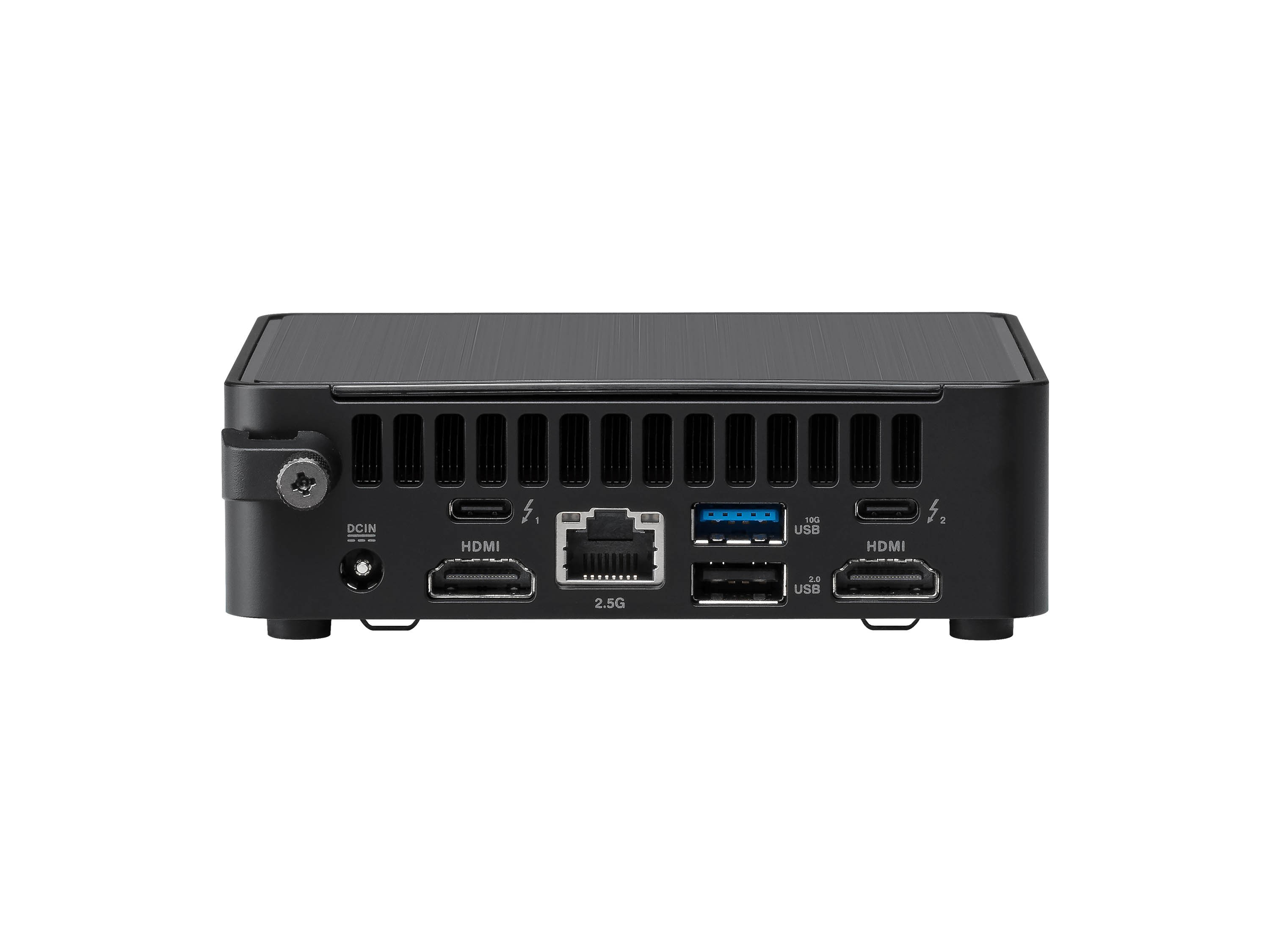

Rear ports:
* 2x Thunderbolt 4 type C
* 1x USB 3.2 Gen 2 Type A
* 1x USB 2.0 type A
* 2x HDMI 2.1 (TMDS)
* 1x RJ45 LAN
* 1x DC-in
Dimensions: 117x112x37mm
Weight: 480g
Accessories:
* power adapter
* power cable
* information leaflet
* warranty card
* VESA mount
Warranty: 3 years
Tested compatible memories are listed on the manufacturer's website
