Product description ASUS ExpertCenter D701MERES-5145001650 Mini TWR D701MERES-5145001650 Computer Mini, i5-14500, 16GB, 512GB, UHD 770, without OS, 3R
| Výrobce | INTEL |
| Typ CPU | Intel Core i5 |
| Generace CPU | Intel 14. generace |
| Přesný model | i5-14500 |
| Zákl.frekvence jádra CPU (GHz) | 2,6 |
| Počet jader | 14 |
| Kapacita přesná (GB) | 512GB |
| DisplayPort connector | Yes |
| DP number | 1 |
| HDMI connector | Yes |
| Paměť - velikost (GB) | 16 |
| Typ paměti | DDR5 |
| Rozměry paměti | UDIMM |
| Paměť - počet slotů celkem | 4 |
| Paměť - rychlost | 4400 |
| Disk - typ | SSD |
| Optická mechanika | Ano |
| Čtečka karet | Ne |
| Grafická karta | integrovaná |
| Thunderbolt 3 (kompatibilní) | Ne |
| Výstup VGA | Ano |
| Výstup DVI | Ne |
| Výstup mini/micro HDMI | Ne |
| Výstup mini DisplayPort | Ne |
| Sériový port | Ne |
| Konektor RJ45 | Ano |
| Bluetooth | Ano |
| Wi-Fi | Ano |
| MS Office | Ne |
| Provedení | MiniTower |
| Typ SSD | M.2 |
| Rozhraní SSD | PCI-Express NVMe |
| Operační systém | bez operačního systému |
| Ethernet | 1 Gbs |
| Počet LAN portů | 1 |
| Klávesnice | Drátová |
| Myš | Drátová |
| USB 2.0 (přední) | 2 ks |
| USB 3.x (přední) | 2 ks |
| USB 3.x Type-C (přední) | 1 ks |
| USB 4 / Thunderbolt 4 (přední) | 0 ks |
| USB 2.0 (zadní) | 3 ks |
| USB 3.x (zadní) | 2 ks |
| USB 3.x Type-C (zadní) | 0 ks |
| USB 4 / Thunderbolt 4 (zadní) | 0 ks |
| HDMI (počet) | 1 ks |
| mini/micro HDMI (počet) | 0 ks |
| DVI (počet) | 0 ks |
| VGA (počet) | 1 ks |
| PS/2 (zadní) | 0 ks |
| Audio 3,5mm jack | Ano |
| Modelová řada GPU | Intel Iris/Intel UHD Graphics |
| Max.frekvence jádra CPU (GHz) | 5 |
| CPU s podporou AI | Ne |
| Bluetooth verze | 05.IV |
| Wi-Fi standard | Wi-Fi 6E 802.11ax |
| Barva | Černá |
| MS GamePass Trial | Ne |
| Thunderbolt 5 (přední) | 0 ks |
| Thunderbolt 5 (zadní) | 0 ks |
| NPU - počet TOPs | Nepodporuje |

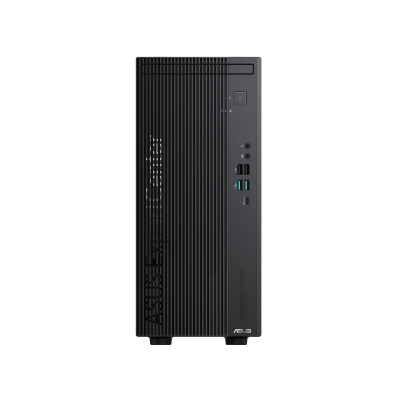

ASUS ExpertCenter D7 Mini Tower (D701MERES-5145001650)
Form Factor: mini tower (15l)
Operating System: none
Processor: Intel Core i5-14500 (14 cores - 6P + 8E, 20 threads, P-core 2.6/5.0 GHz, E-core 1.9/3.7 GHz, 24 MB cache)
Memory: 16GB DDR5
Number of Slots: 4 DDR5 UDIMM slots with dual-channel support
Maximum Memory Size: 128GB DDR5
Hard Drive: 512GB
Optical Drive: DVD writer 8X
Memory Card Reader: no
Smart Card Reader: no
Graphics Card: Integrated Intel UHD Graphics 770
Network: Intel WGI219V 10/100/1000 Mb/s, non-vPro
Wireless Communication: WLAN + Bluetooth (Wi-Fi 6E, 802.11ax Dual band 2*2 + Bluetooth® 5.4)
Keyboard: usb
Mouse: optical usb
Front ports:
* 1x headphone jack 3.5mm
* 1x combined audio jack 3.5mm
* 2x USB 2.0 type A
* 1x USB 3.2 Gen 2 Type C
* 2x USB 3.2 Gen 2 Type A
Rear Ports:
* 1x RJ45 Gigabit Ethernet
* 1x HDMI 1.4
* 1x VGA
* 1x Displayport 1.4
* 3x 3.5mm audio jack
* 1x Kensington lock slot
* 1x Padlock loop
* 3x USB 2.0 type A
* 2x USB 3.2 Gen 1 Type A
* 1x FLEX I/O port (DP1.4 HBR3)
* 1x power connector
Color: black
Dimensions: 155x296x347mm
Weight: 6kg
Accessories:
* internal speaker
* 1x COM port
* security cable (intrusion switch)
* 2.5" HDD mounting kit
Warranty: 3 years
Three-year premium ASUS Pick-up and Return warranty for both business and private individuals FREE.
For details, see here: https://www.Asus.com/cz/event/bezstarostny_servis
Manufacturer's website: https://www.Asus.com/displays-desktops/tower-pcs/expertcenter/asus-expertcenter-d7-mini-tower-d701mer/
You can find the offer of compatible extensions to the standard warranty in the related products.
