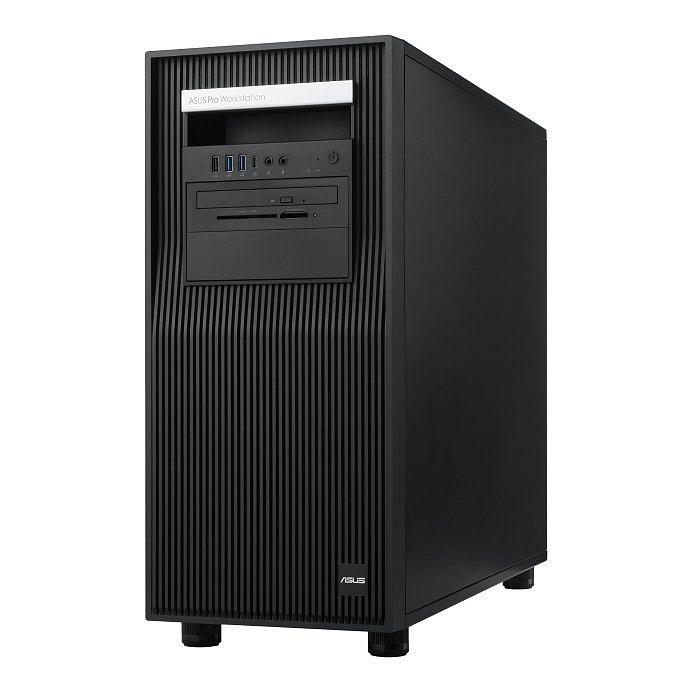

ASUS 90WS0022-M000K0 ExpertCenter Pro ET900A X9

Product description

ASUS ExpertCenter Pro ET900A X9
Professional workstation with support for AMD RYZEN™ Threadripper™ PRO 9000 and 7000 WX-series processors, DDR5 ECC RDIMM memory, dual 10Gb LAN ports, and support for up to four professional NVIDIA® RTX™ GPUs.

Operating system: Windows 11 Pro, Windows 11 Pro for Workstations
Processor / system bus: AMD Socket sTR5 (AMD RYZEN™ Threadripper™ PRO 9000 & 7000 WX-Series)
Chipset: AMD WRX90 Chipset

Memory:
Total number of slots:
8 (8-channel configuration)
Memory type: DDR5 4800/5600 MHz, ECC RDIMM
Memory capacity: 64 GB, 48 GB, 32 GB, 24 GB, 16 GB, 8 GB ECC RDIMM

Expansion slots:
Total: 7
Location-1: PCIe x16 slot (Gen5 x16 link)
Location-2: PCIe x16 slot (Gen5 x16 link)
Location-3: PCIe x16 slot (Gen5 x16 link)
Location-4: PCIe x16 slots (Gen5 x16 link)
Location-5: PCIe x16 slots (Gen5 x16 link)
Location-6: PCIe x16 slots (Gen5 x8 link)
Location-7: PCIe x16 slots (Gen5 x16 link)

Storage:
Storage controller:
AMD RYZEN™ Threadripper™ PRO 9000 and 7000 WX-Series processors
M.2 slot2_1 (Key M), 2242 / 2260 / 2280 / 22110 form factor (PCIe 5 mode support.0 ×4)
M.2 slot2_2 (Key M), 2242 / 2260 / 2280 / 22110 form factor (PCIe 5 mode support0 ×4)
M.2 slot2_3 (Key M), 2242 / 2260 / 2280 form factor (PCIe 5 support0 ×4)
M.2 slot2_4 (Key M), 2242 / 2260 / 2280 form factor (PCIe 5 mode support.0 ×4)

AMD WRX90 chipset
The SlimSAS_1 slot supports NVMe devices in PCIe 4 mode.0 ×4
The SlimSAS_2 slot supports NVMe devices in PCIe 4 mode.0 ×4
4× SATA 6 Gb/s ports


Drive bays:
4 x internal 3.55"/2.5" storage bays

Auxiliary FDD/CD/DVD storage: 1× 5.25" bay for an optional slim DVD-RW optical drive and card reader

Networking: 1 x Intel® dual 10Gb Ethernet

Graphics cards:
Supports up to 4 dual-slot NVIDIA® graphics cards, including for example:
NVIDIA® RTX 6000 ADA 48GB
NVIDIA® RTX A4000 16GB
NVIDIA® RTX 2000 ADA 16GB
NVIDIA® RTX A2000 12GB
2× USB 40 Gb/s (USB4®) ports on the rear panel with support for USB Type-C® video outputs*

Front I/O ports:
1 x USB 20Gbps Type-C® port (15W, 5Vdc/3A)
2 x USB 5Gbps ports
1 x USB 2.0 port
1 x Headphone port
1 x Microphone port

Rear I/O ports:
2 x USB4® (40Gbps) ports (2 x USB Type-C®) (15W, 5Vdc/3A)
6 x USB 10Gbps ports (6 x Type-A)
1 x USB 2.0 port (1 x Type-A)
2 x Mini DisplayPort in
2 x RJ-45 LAN ports
2 x Audio jacks
1 x BIOS FlashBack™ button
1 x Clear CMOS button

Switch/LED:
Front:
1 x Power Switch/LED
1 x HDD Access LED
Rear:
1 x BIOS FlashBack™ button/LED
1 x Clear CMOS button

Management Solution: ASUS Control Center Express

Compliance: BSMI, CE, FCC, Energy Star

PSU: 2000W 80 PLUS GOLD single power supply (100-240Vac, 15-12A, 60-50Hz)

Dimensions: 500mm x 230mm x 579mm
Weight: 31.490 kg

Link to the official website:
https://www.Asus.com/displays-desktops/workstations/performance/expertcenter-pro-et900a-x9/
