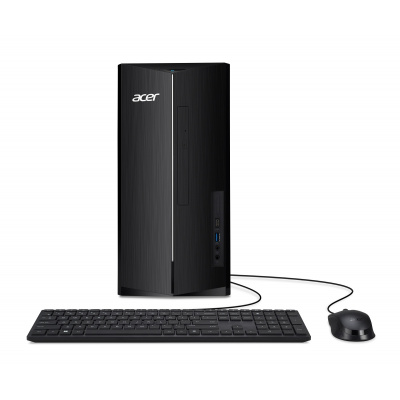

Product description Acer Aspire TC-1785 Mini TWR DT.BLNEC.002 Computer Mini, i5-14400, 8GB, 512GB SSD, UHD 730, W11H, 1R
| Manufacturer | INTEL |
| CPU Type | Intel Core i5 |
| CPU Generation | Intel 14. generation |
| Exact model | i5-14400 |
| BasicCPU core frequency (GHz) | 2,5 |
| Number of cores | 10 |
| Exact capacity (GB) | 512GB |
| DisplayPort connector | No |
| HDMI connector | Yes |
| Memory - size (GB) | 8 |
| RAM capacity | 8GB (1x 8GB) |
| Memory type | DDR4 |
| Memory dimensions | UDIMM |
| Memory - total number of slots | 2 |
| Memory - number of free slots | 1 |
| Disk - type | SSD |
| Optical mechanics | Yes |
| Card reader | No |
| Graphics card | integrated |
| Thunderbolt 3 (compatible) | No |
| VGA output | No |
| DVI output | No |
| Mini/Micro HDMI output | No |
| Mini DisplayPort output | No |
| Serial port | No |
| RJ45 connector | Yes |
| Bluetooth | Yes |
| Wi-Fi | Yes |
| Execution | MiniTower |
| SSD type | M.2 |
| SSD interface | PCI Express |
| Operating system | Windows 11 Home |
| Ethernet | 1 Gbps |
| Number of LAN ports | 1 |
| Keyboard | Wire |
| Mouse | Wire |
| USB 2.0 (front) | 0 pcs |
| USB 3.x (front) | 1 pc |
| USB 3.x Type-C (front) | 1 pc |
| USB 4 / Thunderbolt 4 (front) | 0 pcs |
| USB 2.0 (rear) | 4 pcs |
| USB 3.x (rear) | 1 pc |
| USB 3.x Type-C (rear) | 0 pcs |
| USB 4 / Thunderbolt 4 (rear) | 0 pcs |
| HDMI (quantity) | 2 pcs |
| mini/micro HDMI (quantity) | 0 pcs |
| DVI (quantity) | 0 pcs |
| VGA (quantity) | 0 pcs |
| PS/2 (rear) | 0 pcs |
| 3.5 mm audio jack | Yes |
| GPU model series | Intel Iris/Intel UHD Graphics |
| Max.CPU core frequency (GHz) | 4,7 |
| CPU with AI support | No |
| Bluetooth version | 5.0 |
| Wi-Fi standard | Wi-Fi 6 802.11ax |
| Color | Black |
| NPU - number of TOPs | Not supported |
Acer Aspire TC-1785_E_FR300W
Operating System: Windows® 11 Home
Processor: Intel Core i5-14400 (10 cores - 6P + 4E, 16 threads, P-core 2.5/4.7 GHz, E-core 1.8/3.5 GHz, 20 MB cache)
Memory: 8GB DDR4
Number of slots (total/free): 2 UDIMM DDR4 slots (2/1)
Maximum memory size: 32GB DDR4
Hard Drive: 512GB M.2 SSD
Optical Drive: DVD, 9mm slim
Graphics Card: Integrated Intel UHD Graphics 730
Audio: integrated 5.1-channel high-resolution surround sound
Network: yes
Wireless communication: WLAN + Bluetooth (Wi-Fi 802.11ax/ac/a/b/g/n + BT 5.0)
Keyboard: usb
Mouse: usb
Power Supply: internal, 80PLUS, TFX
Front Ports:
* 1x USB 3.2 Gen1 type-C
* 1x USB 3.2 Gen1
* 1x audio (3.5mm)
* 1x microphone (3.5mm)
Rear ports:
* 4x USB 2.0
* 1x USB 3.2 Gen 1
* 1x Ethernet (RJ-45)
* 3x audio (3.5mm)
* 1x HDMI 2.0
* 1x HDMI 1.4b
* 1x power connector
Expansion slots:
* 1x PCIe x16
* 1x PCIe x1
* 2x M.2 (1x SSD + 1x WLAN)
Color: black
Dimensions: 163x350x340mm
Warranty: 1 year
Operating System: Windows® 11 Home
Processor: Intel Core i5-14400 (10 cores - 6P + 4E, 16 threads, P-core 2.5/4.7 GHz, E-core 1.8/3.5 GHz, 20 MB cache)
Memory: 8GB DDR4
Number of slots (total/free): 2 UDIMM DDR4 slots (2/1)
Maximum memory size: 32GB DDR4
Hard Drive: 512GB M.2 SSD
Optical Drive: DVD, 9mm slim
Graphics Card: Integrated Intel UHD Graphics 730
Audio: integrated 5.1-channel high-resolution surround sound
Network: yes
Wireless communication: WLAN + Bluetooth (Wi-Fi 802.11ax/ac/a/b/g/n + BT 5.0)
Keyboard: usb
Mouse: usb
Power Supply: internal, 80PLUS, TFX
Front Ports:
* 1x USB 3.2 Gen1 type-C
* 1x USB 3.2 Gen1
* 1x audio (3.5mm)
* 1x microphone (3.5mm)
Rear ports:
* 4x USB 2.0
* 1x USB 3.2 Gen 1
* 1x Ethernet (RJ-45)
* 3x audio (3.5mm)
* 1x HDMI 2.0
* 1x HDMI 1.4b
* 1x power connector
Expansion slots:
* 1x PCIe x16
* 1x PCIe x1
* 2x M.2 (1x SSD + 1x WLAN)
Color: black
Dimensions: 163x350x340mm
Warranty: 1 year
