Product description HP Z6 G5 A Tower TRPRO-7945WX 5E1X0ES#BCM Office computer, 64GB, 1TB SSD, RTX 4080S, W11P, 4RNBD
| Manufacturer | AMD |
| CPU Type | AMD Ryzen Threadripper PRO |
| CPU Generation | AMD 7000 Series |
| Exact model | TRPRO-7945WX |
| BasicCPU core frequency (GHz) | 4,7 |
| Number of cores | 12 |
| Exact capacity (GB) | 1TB |
| DisplayPort connector | No |
| HDMI connector | No |
| Power supply output (W) | 1450 |
| Memory - size (GB) | 64 |
| RAM capacity | 64GB (4x 16GB) |
| Memory type | DDR5 |
| Memory dimensions | DIMM |
| Intel Optane Memory | No |
| Memory - total number of slots | 4 |
| Memory - speed | 5600 |
| Disk - type | SSD |
| Optical mechanics | No |
| Card reader | Yes |
| Graphics card | NVIDIA |
| Thunderbolt 3 (compatible) | No |
| eSATA | No |
| VGA output | No |
| DVI output | No |
| Mini/Micro HDMI output | No |
| Mini DisplayPort output | No |
| Serial port | No |
| RJ45 connector | Yes |
| Bluetooth | No |
| Wi-Fi | No |
| TPM 2.0 | Yes |
| Execution | Tower |
| SSD type | M.2 2280 |
| SSD interface | PCI-Express NVMe |
| Operating system | Windows 11 Pro |
| Ethernet | 2.5 Gbps |
| Number of LAN ports | 2 |
| Lock security | option to mechanically lock the cabinet with a lock |
| Keyboard | Wire |
| Mouse | Wire |
| USB 2.0 (front) | 0 pcs |
| USB 3.x (front) | 4 pcs |
| USB 3.x Type-C (front) | 1 pc |
| USB 4 / Thunderbolt 4 (front) | 0 pcs |
| USB 2.0 (rear) | 0 pcs |
| USB 3.x (rear) | 6 pcs |
| USB 3.x Type-C (rear) | 0 pcs |
| USB 4 / Thunderbolt 4 (rear) | 0 pcs |
| HDMI (quantity) | 0 pcs |
| mini/micro HDMI (quantity) | 0 pcs |
| DVI (quantity) | 0 pcs |
| VGA (quantity) | 0 pcs |
| PS/2 (rear) | 0 pcs |
| 3.5 mm audio jack | Yes |
| Memory | 16 |
| GPU model series | NVIDIA GeForce RTX 4080 SUPER |
| Max.CPU core frequency (GHz) | 5,3 |
| CPU with AI support | No |
| Color | Black |
| NPU - number of TOPs | Not supported |

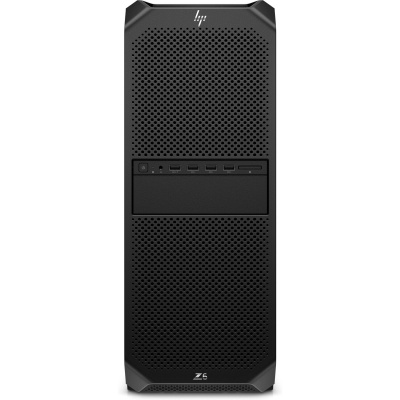

HP Z6 G5 A Tower
Operating System: Windows 11 Pro
Processor: AMD Ryzen Threadripper PRO 7945WX (12 cores, 24 threads, 4.7/5.3 GHz, 64 MB cache)
Memory: 64 GB DDR5-5600 MHz ECC RAM (4 x 16 GB)
Number of slots (total/free): 4 DIMM slots (4/0)
Hard Drive: 1TB M.2 SSD PCIe 2280 4x4 NVMe Opal2 SED
Optical Drive: none
Memory Card Reader: SD card reader
Graphics Card: NVIDIA RTX 4080 Super (16 GB GDDR6X)
Audio: Realtek ALC3205-CG codec
Network: Realtek RTL8111EPP 10/100/1000 + 2.5 GBe flex port
Keyboard: wired USB HP 125
Mouse: HP Wired Desktop 128 Laser Mouse
Power Supply: 1450 W internal power supply, up to 90% efficiency, active PFC
Front Ports:
* 4x USB 3.1 Gen 1 Type-A 5Gbps with a transfer speed of 5Gb/s (1 charging)
* 1x SuperSpeed USB 3.2 Type-C with a transfer speed of 20Gb/s
* 1x microphone/headphone jack
Rear ports:
* 1x universal audio jack
* 1x RJ-45
* 1x RJ-45 (2.5 Gbe)
* 6x SuperSpeed USB 3.2 Gen1 Type-A with a transfer speed of 5Gb/s
Expansion slots:
* 4x PCIe 5 x16
* 2x PCIe 5 x4 (only for M.2 SSD)
* 1x PCIe 4 x16
* 3x PCIe 4 x4 (2x for M.2 SSD)
Color: black
Dimensions: 16.9 x 46.5 x 44.5 cm
Weight: from 13.2 g
Warranty: 4 years NBD
Operating System: Windows 11 Pro
Processor: AMD Ryzen Threadripper PRO 7945WX (12 cores, 24 threads, 4.7/5.3 GHz, 64 MB cache)
Memory: 64 GB DDR5-5600 MHz ECC RAM (4 x 16 GB)
Number of slots (total/free): 4 DIMM slots (4/0)
Hard Drive: 1TB M.2 SSD PCIe 2280 4x4 NVMe Opal2 SED
Optical Drive: none
Memory Card Reader: SD card reader
Graphics Card: NVIDIA RTX 4080 Super (16 GB GDDR6X)
Audio: Realtek ALC3205-CG codec
Network: Realtek RTL8111EPP 10/100/1000 + 2.5 GBe flex port
Keyboard: wired USB HP 125
Mouse: HP Wired Desktop 128 Laser Mouse
Power Supply: 1450 W internal power supply, up to 90% efficiency, active PFC
Front Ports:
* 4x USB 3.1 Gen 1 Type-A 5Gbps with a transfer speed of 5Gb/s (1 charging)
* 1x SuperSpeed USB 3.2 Type-C with a transfer speed of 20Gb/s
* 1x microphone/headphone jack
Rear ports:
* 1x universal audio jack
* 1x RJ-45
* 1x RJ-45 (2.5 Gbe)
* 6x SuperSpeed USB 3.2 Gen1 Type-A with a transfer speed of 5Gb/s
Expansion slots:
* 4x PCIe 5 x16
* 2x PCIe 5 x4 (only for M.2 SSD)
* 1x PCIe 4 x16
* 3x PCIe 4 x4 (2x for M.2 SSD)
Color: black
Dimensions: 16.9 x 46.5 x 44.5 cm
Weight: from 13.2 g
Warranty: 4 years NBD
