Product description HP Elite t655 Tiny 5H0P3EA#BCM Computer Mini, R2314, 8GB, 256GB SSD, without GPU, W10E, 3R
| Manufacturer | AMD |
| CPU Type | AMD Embedded |
| Exact model | R2314 |
| BasicCPU core frequency (GHz) | 2,1 |
| Number of cores | 4 |
| Exact capacity (GB) | 256GB |
| VESA standard | Yes |
| DisplayPort connector | Yes |
| Number of pieces | 3 |
| HDMI connector | No |
| Power supply output (W) | 45 |
| Memory - size (GB) | 8 |
| RAM capacity | 8GB (2x 4GB) |
| Memory type | DDR4 |
| Memory dimensions | SODIMM |
| Intel Optane Memory | No |
| Memory - total number of slots | 2 |
| Memory - speed | 3200 |
| Disk - type | SSD |
| Optical mechanics | No |
| Card reader | No |
| Graphics card | Without GPU |
| Thunderbolt 3 (compatible) | No |
| eSATA | No |
| VGA output | No |
| DVI output | No |
| Mini/Micro HDMI output | No |
| Mini DisplayPort output | No |
| Serial port | No |
| RJ45 connector | Yes |
| Bluetooth | No |
| Wi-Fi | No |
| TPM 2.0 | Yes |
| Execution | Ultra small (thin client) |
| SSD type | M.2 2280 |
| SSD interface | PCI-Express NVMe |
| Operating system | Windows 10 IoT Enterprise |
| Ethernet | 1 Gbps |
| Number of LAN ports | 1 |
| Keyboard | Wire |
| Mouse | No |
| USB 2.0 (front) | 0 pcs |
| USB 3.x (front) | 2 pcs |
| USB 3.x Type-C (front) | 1 pc |
| USB 4 / Thunderbolt 4 (front) | 0 pcs |
| USB 2.0 (rear) | 2 pcs |
| USB 3.x (rear) | 2 pcs |
| USB 3.x Type-C (rear) | 0 pcs |
| USB 4 / Thunderbolt 4 (rear) | 0 pcs |
| HDMI (quantity) | 0 pcs |
| mini/micro HDMI (quantity) | 0 pcs |
| DVI (quantity) | 0 pcs |
| VGA (quantity) | 0 pcs |
| PS/2 (rear) | 0 pcs |
| 3.5 mm audio jack | Yes |
| GPU model series | Without GPU |
| Max.CPU core frequency (GHz) | 3,5 |
| CPU with AI support | No |
| NPU - number of TOPs | Not supported |

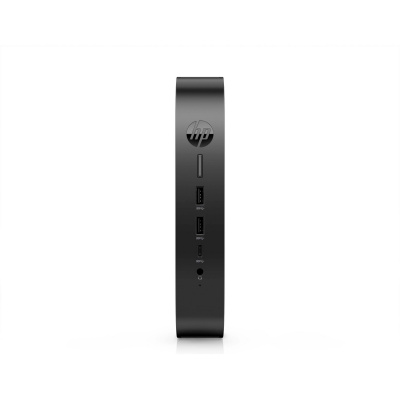

Model: HP Elite t655 Thin Client
Operating System: Windows 10 IoT Enterprise
Processor: AMD Ryzen R2314 System-on-Chip; 2.1 - 3.5 GHz; 4 cores, 4 threads3
Hard drive: 256 GB Intel PCIe NVMe 2280 M.2 SSD
Optical Drive: Not included
Graphics Card: Without graphics card
Memory: 8 GB DDR4-3200 SDRAM (2 x 4 GB) SODIMM
Number of Slots (Total/Free): 2/0
Network: 10/100/1000
Connectors (Total):
* 1x Headphone/Microphone Combo Jack
* 2x SuperSpeed USB Type-A 5Gbps signaling rate (front)
* 1x SuperSpeed USB-C 3.2 Gen2 5Gbps signaling rate (front)
* 2x USB-A 2.0 (rear)
* 2x SuperSpeed USB Type-A 10Gbps signaling rate (rear)
* 3x DisplayPort 1.4
* 1x RJ-45
Card Reader: Not included
Keyboard: HP USB 320K wired keyboard
Case: Thin Client
Dimensions: 3.5 x 20 x 20 cm
Weight: 1.12 kg
Power Supply: HP Smart 45 W External AC power adapter
Color: Black
Warranty: 3 years
For proper Care Pack compatibility, use the HP portal
https://cpc2.ext.hp.com/?countries=CZ
Operating System: Windows 10 IoT Enterprise
Processor: AMD Ryzen R2314 System-on-Chip; 2.1 - 3.5 GHz; 4 cores, 4 threads3
Hard drive: 256 GB Intel PCIe NVMe 2280 M.2 SSD
Optical Drive: Not included
Graphics Card: Without graphics card
Memory: 8 GB DDR4-3200 SDRAM (2 x 4 GB) SODIMM
Number of Slots (Total/Free): 2/0
Network: 10/100/1000
Connectors (Total):
* 1x Headphone/Microphone Combo Jack
* 2x SuperSpeed USB Type-A 5Gbps signaling rate (front)
* 1x SuperSpeed USB-C 3.2 Gen2 5Gbps signaling rate (front)
* 2x USB-A 2.0 (rear)
* 2x SuperSpeed USB Type-A 10Gbps signaling rate (rear)
* 3x DisplayPort 1.4
* 1x RJ-45
Card Reader: Not included
Keyboard: HP USB 320K wired keyboard
Case: Thin Client
Dimensions: 3.5 x 20 x 20 cm
Weight: 1.12 kg
Power Supply: HP Smart 45 W External AC power adapter
Color: Black
Warranty: 3 years
For proper Care Pack compatibility, use the HP portal
https://cpc2.ext.hp.com/?countries=CZ
