Product description HP Elite Mini 800 G9 Mini 623C8ET#BCM Computer Mini, i9-14900, 64GB, 2TB SSD, UHD 770, W11P, 3RNBD
| Manufacturer | INTEL |
| CPU Type | Intel Core i9 |
| CPU Generation | Intel 14. generation |
| Exact model | i9-14900 |
| BasicCPU core frequency (GHz) | 2 |
| Number of cores | 24 |
| Exact capacity (GB) | 2TB |
| DisplayPort connector | Yes |
| Number of pieces | 2 |
| HDMI connector | Yes |
| Power supply output (W) | 120 |
| Memory - size (GB) | 64 |
| RAM capacity | 64GB (2x 32GB) |
| Memory type | DDR5 |
| Memory dimensions | SODIMM |
| Intel Optane Memory | No |
| Memory - total number of slots | 2 |
| Memory - speed | 5600 |
| Disk - type | SSD |
| Optical mechanics | No |
| Card reader | No |
| Graphics card | integrated |
| Thunderbolt 3 (compatible) | No |
| eSATA | No |
| VGA output | No |
| DVI output | No |
| Mini/Micro HDMI output | No |
| Mini DisplayPort output | No |
| Serial port | No |
| RJ45 connector | Yes |
| Bluetooth | Yes |
| Wi-Fi | Yes |
| TPM 2.0 | Yes |
| Execution | Mini PC |
| SSD type | M.2 2280 |
| SSD interface | PCI-Express NVMe |
| Operating system | Windows 11 Pro |
| Ethernet | 1 Gbps |
| Number of LAN ports | 1 |
| Lock security | option to mechanically lock the cabinet with a lock |
| Keyboard | Wire |
| Mouse | Wire |
| USB 2.0 (front) | 0 pcs |
| USB 3.x (front) | 2 pcs |
| USB 3.x Type-C (front) | 1 pc |
| USB 4 / Thunderbolt 4 (front) | 0 pcs |
| USB 2.0 (rear) | 2 pcs |
| USB 3.x (rear) | 3 pcs |
| USB 3.x Type-C (rear) | 1 pc |
| USB 4 / Thunderbolt 4 (rear) | 0 pcs |
| HDMI (quantity) | 1 pc |
| mini/micro HDMI (quantity) | 0 pcs |
| DVI (quantity) | 0 pcs |
| VGA (quantity) | 0 pcs |
| PS/2 (rear) | 0 pcs |
| 3.5 mm audio jack | Yes |
| TCO Certified | Yes |
| TCO Certified number | C922020025 |
| GPU model series | Intel Iris/Intel UHD Graphics |
| Max.CPU core frequency (GHz) | 5,8 |
| CPU with AI support | No |
| Bluetooth version | 05.IV |
| Wi-Fi standard | Wi-Fi 7 802.11be |
| Color | Black |
| NPU - number of TOPs | Not supported |

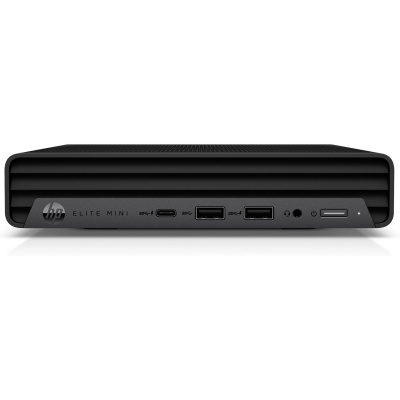

Model: HP Elite Mini 800 G9 Desktop PC
HP Elite Mini 800 desktop computers offer the high performance needed for creating complex presentations, processing large data sets, and quickly producing attractive content. This is an ideal compact computer for handling demanding tasks, featuring a powerful Intel® processor, responsive graphics, and excellent deployment options.
ENERGY STAR® Certification
Operating System: Windows 11 Pro
Processor: Intel Core i9-14900 (24 cores - 8P + 16E, 32 threads, P-core 2.0/5.8 GHz, E-core 1.5/4.3 GHz, 32 MB cache)
Memory: 64 GB DDR5-5600MHz RAM (2x 32 GB)
Number of Slots (Total/Free): 2 SODIMM slots (2/0)
Hard Drive: SSD 2 TB PCIe® NVMe™ M.2
Position for internal unit: one 2.5" HDD drive
Optical drive: No
Graphics card: Integrated Intel UHD Graphics 770
Audio: Realtek ALC3252 codec
Network: Yes, GbE
Wireless communication
WLAN: Intel Wi-Fi 7 BE200
Bluetooth®: 5.4
Keyboard: HP 320 USB slim
Mouse: HP USB 128 laser mouse
Security Management: support for chassis padlocks and cable locks, integrated security chip TPM 2.0
Memory Card Reader: No
Power Supply: external power adapter 120 W
Front Ports:
* 1× headset connector
* 2× SuperSpeed USB Type-A with 10Gb/s signaling rate (1x charging)
* 1× SuperSpeed USB Type-C® with 10Gb/s signaling rate
Rear Ports:
* 1x external antenna connector
* 1x power connector
* 1x RJ-45
* 3x SuperSpeed USB Type-A with 10Gb/s signaling rate
* 2x DisplayPort™ 1.4a
* 1x HDMI 2.1
* 2x USB Type-A with a signal transfer rate of 480 Mb/s
* 1x SuperSpeed USB Type-C with a signal transfer rate of 10Gb/s (w/ DisplayPort™ Alt Mode and 100W Power Intake)
Expansion slots:
* 1x M.2 2230
* 2x M.2 2280
Color: black
Dimensions: 17.7x17.5x3.4cm
Weight: 1.42 kg
Warranty: 3 years
For correct Care Pack compatibility, use the HP portal
https://cpc2.ext.hp.com/?countries=CZ
