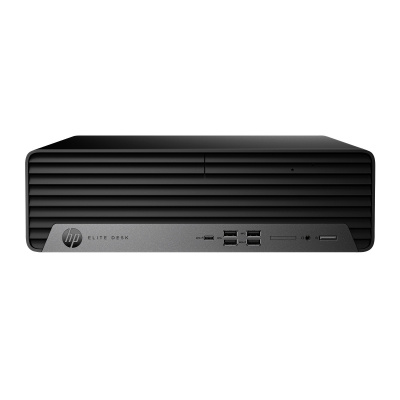

Product description HP Elite 805 G9 SFF A55S8ET#BCM Computer Mini, R5-8500G, 16GB, 512GB, AMD int, W11H, 3R
| Manufacturer | AMD |
| CPU Type | AMD Ryzen 5 |
| CPU Generation | AMD 8000 Series |
| Exact model | R5-8500G |
| BasicCPU core frequency (GHz) | 3,5 |
| Number of cores | 6 |
| Exact capacity (GB) | 512GB |
| Speed (rpm) | Without RPM |
| DisplayPort connector | Yes |
| Number of pieces | 1 |
| HDMI connector | Yes |
| Power supply output (W) | 260 |
| Memory - size (GB) | 16 |
| RAM capacity | 16GB (1x 16GB) |
| Memory dimensions | DIMM |
| Memory - total number of slots | 4 |
| Memory - number of free slots | 3 |
| Memory - speed | 5600 |
| Disk - type | SSD |
| Optical mechanics | No |
| Card reader | No |
| Graphics card | integrated |
| Thunderbolt 3 (compatible) | No |
| eSATA | No |
| VGA output | No |
| DVI output | No |
| Mini/Micro HDMI output | No |
| Mini DisplayPort output | No |
| Serial port | No |
| RJ45 connector | Yes |
| Bluetooth | No |
| Wi-Fi | No |
| Execution | Small Form Factor |
| SSD type | M.2 |
| SSD interface | PCI-Express NVMe |
| Operating system | Windows 11 Home |
| Ethernet | 1 Gbps |
| Number of LAN ports | 1 |
| Keyboard | Wire |
| Mouse | Wire |
| USB 2.0 (front) | 0 pcs |
| USB 3.x (front) | 4 pcs |
| USB 3.x Type-C (front) | 1 pc |
| USB 4 / Thunderbolt 4 (front) | 0 pcs |
| USB 2.0 (rear) | 4 pcs |
| USB 3.x (rear) | 2 pcs |
| USB 3.x Type-C (rear) | 0 pcs |
| USB 4 / Thunderbolt 4 (rear) | 0 pcs |
| HDMI (quantity) | 1 pc |
| mini/micro HDMI (quantity) | 0 pcs |
| DVI (quantity) | 0 pcs |
| VGA (quantity) | 0 pcs |
| PS/2 (rear) | 0 pcs |
| 3.5 mm audio jack | Yes |
| GPU model series | AMD Radeon 740M Graphics |
| Max.CPU core frequency (GHz) | 5 |
| CPU with AI support | No |
| Color | Black |
| Thunderbolt 5 (front) | 0 pcs |
| Thunderbolt 5 (rear) | 0 pcs |
| NPU - number of TOPs | Not supported |
HP Elite SFF 805 G9
* HP Wolf Security
* HP Sure Sense
Operating System: Windows 11 Home
Processor: AMD Ryzen 5 8500G (6 cores, 12 threads, 3.5/5.0 GHz, 16 MB cache)
Memory: 16GB DDR5-5600 MT/s
Number of slots (total/free): 4 DIMM slots (4/3)
Hard Drive: 512GB SSD PCIe® NVMe™ M.2
Graphics Card: Integrated AMD Radeon 740M
Audio: Realtek ALC3252 codec, universal audio jack with CTIA and OMTP headset support
Network: yes
Wireless Communication: no
Keyboard: HP 125 USB
Mouse: HP 125 USB
Power Supply: 260W internal power adapter, up to 92% efficiency, active PFC correction
Front Ports:
* 1× USB-C® with 10 Gbit/s transfer speed
* 4× USB-A with 10 Gb/s transfer speed
* 1× combined audio jack for headphones/microphone
Rear Ports:
* 2× USB-A with 5 Gbit/s transfer speed
* 4× USB-A 2.0
* 1× HDMI 2.1
* 1× DisplayPort™ 1.4a
* 1× RJ-45
* 1× audio input/output
* 1× power connector
Expansion slots:
* 1× M.2 2230
* 1× PCIe 3 x1
* 2× M.2 2280
* 1× PCIe 4 x16
Color: black
Dimensions: 338x308x100mm
Weight: approx. 5.4kg
