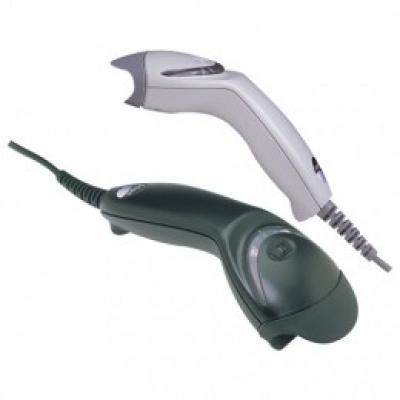

Honeywell MS5145 Eclipse MK5145-31A38-EU, USB, black, (MK-5145 eclipse)

Product description

The sensor cannot be set to barcode scanning mode without pressing the button.

MS-5145 is a handheld laser barcode scanner equipped with state-of-the-art technology.
The user simply points at the barcode, with data transfer occurring only after pressing the button.
The operation is facilitated by a pulsating scanning beam, which stabilizes once the sensor registers the barcode, indicating to the user that it is ready to scan.
This intelligent scanning method is suitable for all barcode scanning applications, including reliable selection of individual
items from a list of barcodes, document processing, and asset inventory.

MAIN FEATURES
-Laser sensing
-Miniature size
-Sensing from a distance of up to 14cm
-Durable casing with a rubber shockproof front

SPECIFICATIONS
Light source: laser diode in the visible light spectrum 650nm ± 5nm
Power: < 1.0 mW
Depth of field: 0-140mm (13 mil)
Field width: 49 mm at the scanner head, 195mm at a distance of 140mm from the scanner head
Scanning speed: 72 scans per second
Max. code density: 4 mil (0.102mm)
Minimum code contrast: 35%
Communication: KBD
Number of characters per read: up to 80 characters
Code recognition: automatically recognizes all commonly used barcodes
Programmability: via programming codes or serial interface using MetroSet software
Audio signaling: 7 tones or silent
Visual signaling: green - laser on, ready to read; Red - successful read
Input voltage: 5VDC ± 0.25V
Power: 0.675 mW
Operating current: 135 mA @ 5VDC
Laser class: CDRH class II
Length: 169mm
Width: 40mm handle / 63mm head
Height: 35mm
Weight: 97g
Standard accessories: scanner, cable for selected interface, user manual

.
