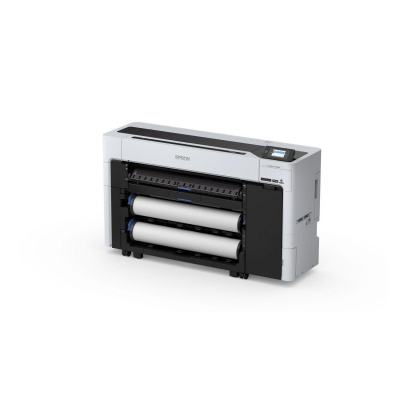

Product description Epson SureColor T5700DM C11CH82301A0 velkoformátová inkoustová tiskárna
| Automatic two-sided printing (Duplex) | No |
| Maximum number of input trays | 1 |
| Print technology | Inkjet |
| Maximum print/media format | A0+ (914 mm) |
| Printer Interface | USB + LAN + Wi-Fi + Bluetooth |
| Standard number of input trays | 1 |
| Actual printer resolution (in DPI) | 2400x1200 |
| Internal memory | 4 GB |
| Multifunction | No |
| Printing color | Color |
| Refill system | Separate refills |
Technical Specifications
Technology
Printing Method: PrecisionCore™ TFP Print Head
Multifunction: Print, Scan, Copy
Ink Technology: Ultrachrome® XD3
Print
Colours Capacity: Photo Black [350ml, 700ml], Matte Black [350ml, 700ml], Cyan [350ml, 700ml], Yellow [350ml, 700ml], Magenta [350ml, 700ml], Red [350ml, 700ml]
Minimum Droplet Size (colour)
(CMY) 3.5 pl, (mk) 3.5 pl, (pk) 3.5 pl
Minimum line width: 0.02 mm
Line accuracy: +/- 0.1
Print Speeds (CAD A1 page size): Quick 16 pages./min.
Print from: PC, MAC, Network, Mobile Device, USB, Cloud, Directly from the device
Print resolution: 1.200 x 2.400 dpi
Print resolution – speed: 300 x 600 dpi
Paper/media handling:
Paper sizes: A0, A1, A2 (42.0x59.4 cm), A3 (29.7x42.0 cm), A4 (21.0x29.7 cm), Roll 17" (43.2 cm), Roll 24" (61.0 cm), Roll 36" (91.4 cm)
Thickness: Single Sheet 0.1 mm, Roll 0.3 mm, Rigid board supported
Suitable paper strength: 1.5 mm
Automatic feeding: Yes
Roll capacity – diameter: Roll 1: 170 mm, Roll 2: 170 mm
Roll capacity – weight: Roll 1: 10.200 g, Roll 2: 10.200 g
Borderless printing on: 20 inches, Roll 10” (25.4 cm), Roll 17” (43.1 cm), Roll 24” (60.9 cm)
General Information
Power consumption: 75 W
Power supply: AC 100 V - 240 V, 50 Hz - 60 Hz
Product dimensions: 1.645? x 499 x 975 mm (width x depth x height)
Product weight: 150 kg
Contents of delivery: Adobe PostScript 3, Ink set, Power cable, 36” Roll holder, SureColor T series Printer/Scanner, User manual (CD), Warranty documents
Optional extras: Extended warranty Cover Plus, SSD (Solid State Drive), NFC card reader (server), NFC card reader (without server), 36" Roll holder
Additional features
Emulation: ESC/P-R, PostScript 3, Adobe® Postscript 3®, PDF 1.7, HP-GL2, RTL
Optional storage: 1TB SSD
Features and capabilities: Touchscreen, Bluetooth, Direct USB printing, Driver preview, Scan preview, Automatic winding, Nozzle Verification Technology (NVT)
Interface
Hi-Speed USB - compatible with USB 2.0, Ethernet interface (1000 Base-T/ 100-Base TX/ 10-Base-T), wireless LAN IEEE 802.11a/b/g/n/ac (WiFi 5)
Optional Software & Solutions
Epson Print Automate, Dinax Mirage, Epson Edge, Epson Cloud Solution PORT, Epson Print Layout, Epson LFP Accounting Tool, Epson Device Admin, Epson Edge Dashboard, Epson Print Admin, Epson Print Admin Serverless
Security
SNMP V3, IPSec, AES-256, Data Storage Encryption, Data Encryption, WPA3, NFC – Card Authentication Reader, TPM (Trusted Platform Module), PIN Code Release, Image Overwrite, User Authentication, LDAP, IEEE802, SSL/TLS, Panel Admin Mode
Other
Warranty: 24 months On-site service
LCD Display: Type: Color, Touchscreen
Scanning
Scanner: Standard
Maximum Precision: OR +/- 0.1% of vector length (whichever is greater)
Scan memory: 8 GB
Destinations: SSD, USB (memory device), Network folder
Advanced document integration: FTP, Network folders, USB, USB memory device
Output formats: JPEG, TIFF, multi-TIFF, PDF, PDF/A, PDF multi, Secure PDF
Scanner type: Contact image sensor (CIS)
Light source: Dual LED technology (RGB)
Scan width: 36" (153mm to 914mm).4mm)
Scanning speed: 10 inches/s (Monochrome, 600 dpi; 4.5 inches/s (Color, 200 dpi;
Maximum scan length: 30.5 m
Copying
Reduction / enlargement: 25% - 755%
Maximum number of copies: 99
