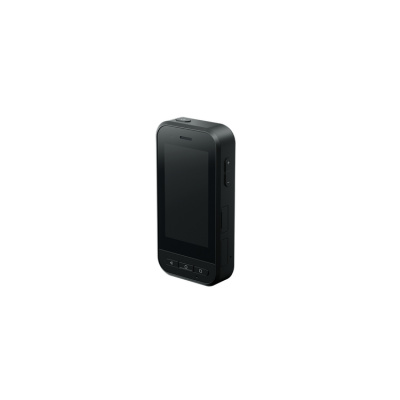

Epson řídicí jednotka Moverio - BO-IC400

Product description

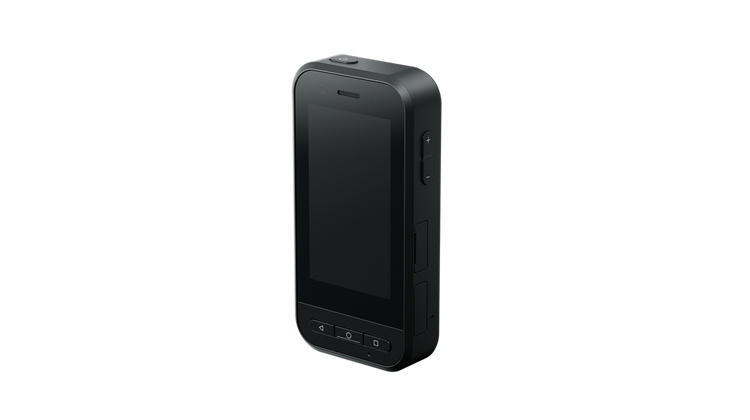

A control unit designed for Moverio smart glasses with an Android operating system featuring an integrated touch screen and customizable user interface.

Control Unit Operating System
OS Type: Android 9
OS Update: OTA (over-the-air)
Google Play Service Support: Yes

Control Unit Processor and Memory
Processor: Snapdragon XR1 2.52 GHz Octa-core
RAM: 4 GB
Internal Memory: 64 GB
External Memory: microSD (max. 2 GB), microSDHC(max. 32 GB), MicroSDXC (max. 2 TB)

Controller Screen
Screen Type: IPS LCD
Panel Size: 2.95-inch wide panel
Number of Pixels: 409.920 ( 480 x 854 )
Contrast ratio: 800 : 1
Color reproduction: 24-bit colors (16.77 million colors)
Refresh rate: 60 Hz

Control unit sensors
Camera: 13 million pixels
Camera autofocus: Yes
Microphone: Yes
Global satellite navigation system: GPS, GLONASS, Galileo, QZSS, BDS
Compass: Yes
Gyroscope: Yes
Accelerometer: Yes
Proximity sensor: Yes
Ambient light sensor: Yes

Control unit connectivity
Connector ports: MicroSD memory card slot, USB Type-C (Display Port alt., USB 2.0, USB 3.0), USB Type-C (USB 2.0), 3.5 mm audio jack (CTIA with microphone)
Video interface: Display Port Alternate Mode
Display Port version: 1.2
Wireless LAN: IEEE 802.11 a/b/g/n/ac, 2x2 dual-band
Bluetooth: 5
Built-in speaker: Yes
Built-in microphone: Yes
Built-in ear microphone: Yes

Control unit user interface
Touchscreen: Yes, it is
Function key: Power button, volume buttons, Back button, Home button, Recent button, function button

Control unit IP rating: IPX2
Operating temperature: 5 °C - 35 °C, humidity 20% - 80%
Battery type: Li-Polymer 3,400 mAh
Dimensions.: 110 mm x 55 mm x 23 mm (h x w x d)
Storage temperature: -10 °C- 60 °C / 10-90% (non-condensing)
Power regulator: 5 V, 2 A
Weight - control unit: 183 g
Package contents: Main unit, user manual
