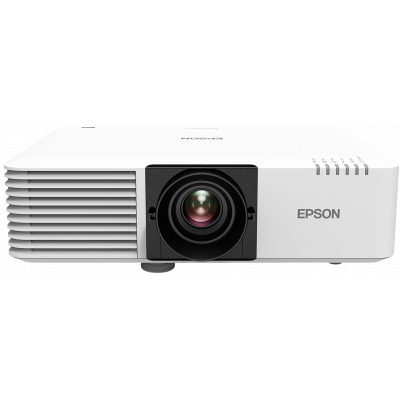

Product description Epson EB-L520U/3LCD/5200lm/WUXGA/2x HDMI/LAN
| EKO produkt podle parametru EU | Ano |
| Image format | Widescreen - 16:10 |
| USB connector | Yes |
| HDMI connector | Yes |
| Speakers | Yes |
| Výstup VGA | Ano |
| Konektor RJ45 | Ano |
| Exact weight (kg) | 7,7 |
| HDMI (počet) | 2 ks |
| Značka a model | Epson EB-L520U |
| Technologie | 3LCD |
| Přesná svítivost (ANSI) | 5200 |
| Svítivost (ANSI) | od 5 100 do 8 000 |
| Kontrast | nad 10 000:1 |
| Nativní rozlišení | 1920 x 1200 (WUXGA) |
| Podporované rozlišení (max) | 1920x1080 (Full HD) |
| Projektor pro domácí kino | Ano |
| Projektor do kanceláře | Ano |
| Projektor do školy | Ano |
| Max. velikost obrazu (palce) | 500" |
| Wi-Fi | Volitelně |
| Hmotnost (kg) | nad 5 |
| Hlučnost (dB, běžný provoz) | 31 |
| Osvětlení | Laser |
| Dálkový ovladač | Ano |
| TCO Certified | Ano |
| TCO Certified number | P924100018 |
| WWW_MORE_DETAILS_SCRIPT | Description + Epson logo |
| Barva | Bílá |
| Umístění | Stolní/Stropní |
The EB-L520U is an affordable laser projector suitable for all users. Provides high brightness imaging and offers advanced connectivity and premium features.
*High brightness image
*Large format scalability
*Advanced connectivity options
*Quick start
Technology
Projection system: 3LCD technology, RGB with liquid crystal shutter
LCD panel: 0.67 inches with C2 Fine
Luminosity: 5.200 lumens - 3.640 lumens (economic) in accordance with the IDMS15 standard.4
Resolution: WUXGA, 1920 x 1200, 16:10
High Resolution (HD): Full HD
Aspect Ratio: 16:10
Contrast Ratio: 2.500.000 : 1
Light source: Laser
Light source lifespan: 20.000 Durability High Watches, 30.000 Hours Durability Eco
2D Vertical Refresh Rate: 192 Hz - 240 Hz
Color Reproduction: up to 1.07 billion colors
Optics
Projection Ratio: 1.35 - 2.20:1
Zoom: Manual, factor: 1 - 1.6
Lens: Optics
Projected Image Diagonal: 50 inches - 500 inches
Focus: Manual
Connectivity Options
USB Display Function: 3-in-1: image / mouse / sound
Interface: RS-232C, Ethernet interface (1000 Base-T/ 100-Base TX/ 10-Base-T), wireless LAN a/n (5 GHz) (optional), VGA input (2x), VGA output, HDMI input (2x), HDBaseT, Miracast (optional), audio output, stereo mini-jack, audio input, stereo mini-jack (2x), USB 2.0 type A, USB 2.0 type B
Smart Device Connection: Ad-hoc / infrastructure
Advanced Features
Security: Kensington lock, Padlock hole, Security cable slot, Wireless LAN unit lock
Functions and Features: A/V mute, Arc Correction technology, built-in speaker, Easy OSD menu presets, Edge Blending technology, Long light source life, PC-free, Quick Corner, Screen sharing, Source function, Extra wide image (16:6), iProjection app
Color Modes: cinema, dynamic, presentation, sRGB, DICOM SIM
Projector Control: via: AMX, Crestron (network), Control4, Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol
General Information
Power Consumption: 293 W, 223 W (economy), 0.3 W (standby mode)
Product Dimensions: 440? x 122 x 304 mm (width x depth x height)
Product weight: 7.7 kg
Max. noise level: Normal mode: 31 dB (A) - Eco mode: 23 dB (A)
Included software: iProjection
Speakers: 10 W
Placement: Ceiling mount, Table, Floor, Wall mount
Color: White
Package contents: HDMI Cable, power cable, remote control incl. battery, User guide, Warranty documents
TCO Certified: yes
Warranty: 36 months with the supplier
