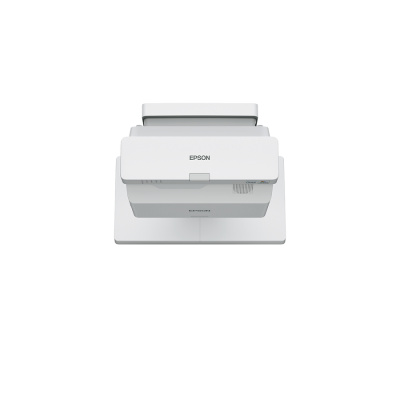

Product description Epson EB-770F/3LCD/4100lm/FHD/HDMI/LAN/WiFi
| EKO produkt podle parametru EU | Ano |
| Image format | Widescreen - 16:9 |
| Konektor S - video | Ne |
| USB connector | Yes |
| Kompozitní video | Ne |
| HDMI connector | Yes |
| Speakers | Yes |
| Výstup VGA | Ano |
| Výstup DVI | Ne |
| Konektor RJ45 | Ano |
| Exact weight (kg) | 5,9 |
| HDMI (počet) | 3 ks |
| Audio 3,5mm jack | Ano |
| Značka a model | Epson EB-770F |
| Technologie | 3LCD |
| Přesná svítivost (ANSI) | 4100 |
| Svítivost (ANSI) | od 3 100 do 4 100 |
| Kontrast | nad 10 000:1 |
| Nativní rozlišení | 1920 x 1080 (1080p) |
| Podporované rozlišení (max) | 1920x1080 (Full HD) |
| Projektor pro domácí kino | Ne |
| Projektor do kanceláře | Ano |
| Projektor do školy | Ano |
| Max. velikost obrazu (palce) | 150" |
| Přesná živ lampy v ECO (hodin) | 30000 |
| Životnost lampy v ECO (hodin) | nad 10 000 |
| Wi-Fi | Ano |
| Hmotnost (kg) | nad 5 |
| Hlučnost (dB, běžný provoz) | 37 |
| 3D technologie | Ne |
| Interaktivní projektor | Ne |
| Osvětlení | Laser |
| TCO Certified | Ano |
| TCO Certified number | P924090009 |
| WWW_MORE_DETAILS_SCRIPT | Script description |
| Barva | Bílá |
| Umístění | Stolní/Stropní |
Support collaboration and communication with an affordable projector featuring a screen size of up to 150", enhancing productivity in any environment.
TECHNICAL SPECIFICATIONS
TECHNOLOGY
Projection system: 3LCD technology, RGB with liquid crystal shutter
LCD panel: 0.62 inches with C2 Fine
Color light output: 4.100 lumens- 2.800 lumens (economic) in accordance with the IDMS15 standard.4
White light output: 4.100 lumens - 2.800 lumens (economic) In accordance with ISO 21118:2020
Resolution: 1080p
High Definition (HD): Full HD
Aspect Ratio: 16 : 9
Contrast Ratio: Over 2.500.000 : 1
Light source: Laser
Light source: 20.000 Durability High Watches, 30.000 Hours Durability Eco
Keystone Correction: Manual Vertical: ± 3 °, Manual Horizontal ± 3 °
Video Editing: 10 bits
2D Vertical Refresh Rate: 192 Hz - 240 Hz
Color Reproduction: up to 1.07 billion colors
OPTICS
Projection Ratio: 0.25 - 0.35:1
Zoom: Digital, Factor: 1 - 1.35
Lens: Optics
Projected Image Diagonal: 60 inches - 150 inches
Projection Lens Aperture Number: 1.6
Focal Length: 3.7 mm
Focus: Manual
Shift: 5 : 1
CONTROL UNIT CONNECTION OPTIONS
Interface: USB 2.0-A (2x), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), wireless LAN IEEE 802.11a/b/g/n/ac (WiFi 5), VGA input (2x), VGA output, HDMI input (3x), composite input, Miracast, audio output, stereo mini-jack connector, audio input (3x), USB 2.0 type B (service only), Wi-Fi Direct, microphone input
Smart device connection: Ad-hoc / infrastructure
Network protocol: HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink
ADVANCED FEATURES
Security: Kensington lock, Control panel lock, Padlock slot, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection
Features and Functions: 21:9 aspect ratio support, A/V mute, Arc Correction Technology, Auto power on, Auto source search, Built-in speaker, CEC standard compatible, Customizable user logo, Digital zoom, Direct power on/off function, Document camera compatible, Edge Blending Technology, Email notification, Home screen, Horizontal and vertical keystone correction, Image shift, JPEG viewer, Long light source life, Network projection, OSD menu copy function, PC-free, Point correction, Power on button, Quick Corner, Scheduling function, Screen mirroring, Split screen function, Extra wide image (16:6), Web control, Web remote control, Wireless LAN compatible, iProjection app
Color Modes: Blackboard, Cinema, Dynamic, Presentation, sRGB, DICOM SIM, Multi Projection
Projector Control: via: Crestron Integrated Partner, Crestron RoomView, Extron IP Link, AMX Device Discovery, Control4 Simple Device Discovery Protocol
GENERAL INFORMATION
Heat Dissipation: 895 BTU/hour (max)
Power Supply: AC 100 V - 240 V, 50 Hz - 60 Hz
Product Dimensions: 356? x 395 x 133 mm (width x depth x height)
Product weight: 5.9 kg
Max. noise level: Normal mode: 37 dB (A) - Eco mode: 27 dB (A)
Temperature: storage -10° C - 60° C
Humidity: Operation 20% - 80%, storage 10% - 90%
Included software: Epson Creative Projection, EasyMP Multi PC Projection, Epson Projector Content Manager Software, Epson Projector Management
Accessories: Air filter, Ceiling mount, Connection and control unit, External speaker, Security cable set, Visualizer camera, WP system – ELPWP10, Wall mount, Wireless LAN unit, Wireless transmitter – ELPWT01
Speakers: 16 W
Package contents: power cable, remote control incl. battery
Room/Application Type: Meeting Room, Home Office, Conference Room/Classroom, Advertising/Retail, Visitor Attractions
Location: Ceiling Installation, Tabletop, Desk Installation, Wall Installation
Color: White
Warranty: 60 months with supplier or 12.000 h
